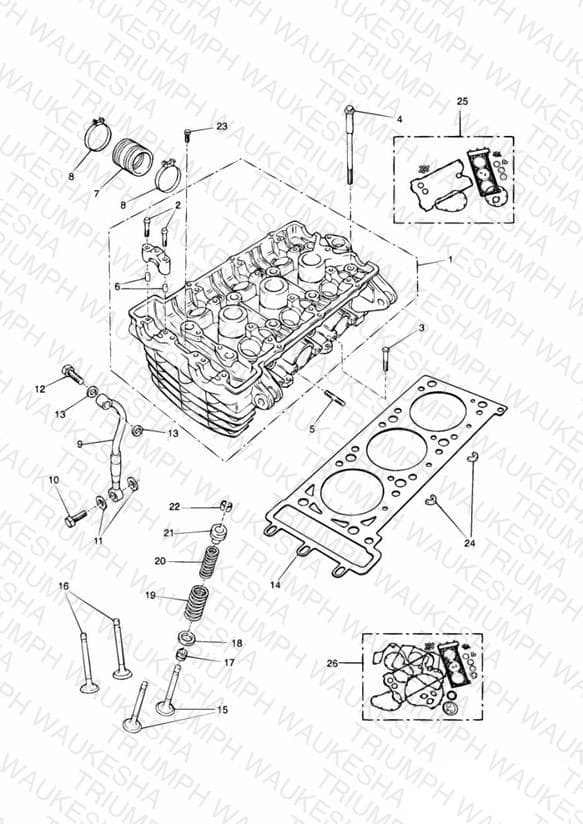

Cylinder Head and Valves
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1150555 Cylinder head | Cylinder head 3 Cyl | 1 | $1881.45 | Obsolete | View Details |
| 2 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv | 16 | $3.70 | Available to order | 16 |
| 3 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 4 | T1160351 Bolt, M10x176.5, Torx 50 | Bolt, M10x176.5, Torx 50 | 8 | $10.18 | Available to order | 8 |
| 5 | T3100015 Stud, Shld, M8 x 36.5, Slv, Enc | Stud, Shld, M8 x 36.5, Slv, Enc | 6 | $2.74 | Available to order | 6 |
| 6 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 16 | $3.90 | Available to order | 16 |
| 7 | T1240092 Rubber, HT, Carb to Head | Rubber, HT, Carb to Head | 3 | $19.97 | Available to order | 3 |
| 8 | 3700003-T0301 Clip, Carb Rubber | Clip, Carb Rubber | 6 | $4.30 | Available to order | 6 |
| 9 | T1210519 Oil feed pipe | Oil feed pipe | 1 | $59.55 | Obsolete | View Details |
| 10 | T1210468 Banjo bolt | Banjo bolt PART NO LONGER AVAILABLE | 1 | $10.55 | Obsolete | View Details |
| 11 | T3550547 Washer, Cu, OD19 x ID14.2 | Washer, Cu, OD19 x ID14.2 | 2 | $4.32 | Available to order | 2 |
| 12 | T1210240 Banjo Bolt, M10 x28 | Banjo Bolt, M10 x28 | 1 | $13.18 | Available to order | 1 |
| 13 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 2 | $0.89 | Available to order | 2 |
| 14 | T1150309 Cylinder head gasket | Cylinder head gasket 3 Cyl | 1 | $153.06 | Available to order | 1 |
| 15 | T1130165 Valve exhaust | Valve exhaust | 6 | $66.52 | Available to order | 6 |
| 16 | T1130160 Valve inlet | Valve inlet | 6 | $74.12 | Available to order | 6 |
| 17 | T3600004 Oil Seal | Oil Seal | 12 | $15.60 | Available to order | 12 |
| 18 | T3555019 Washer, 12.5 x 27 x 1 | Washer, 12.5 x 27 x 1 | 12 | $1.40 | Available to order | 12 |
| 19 | T1130150 Valve spring kit | Valve spring kit » ENG NO 89420 | 12 | $16.77 | Obsolete | View Details |
| 19 | T1131201 Spring Valve, Symmetrical | Spring Valve, Symmetrical ENG NO 89421 » | 12 | $39.25 | Available to order | 12 |
| 20 | T1130140 Valve spring inner | Valve spring inner ENG NO 89421 » | 12 | $4.07 | Obsolete | View Details |
| 21 | T1130053 Retainer, Spring, Valve | Retainer, Spring, Valve | 12 | $1.40 | Available to order | 12 |
| 22 | T1135500 Collet, Valve, 5.5mm | Collet, Valve, 5.5mm | 24 | $1.16 | Available to order | 24 |
| 23 | T3051058 Screw, Cap/HD, M6 x 20, Enc | Screw, Cap/HD, M6 x 20, Enc | 3 | $1.13 | Available to order | 3 |
| 24 | 1150016-T0301 Spacer | Spacer | 2 | $6.45 | Available to order | 2 |
| 25 | 3990060-T0301 Gasket set | Gasket set Cylinder head | 1 | $254.48 | Available to order | 1 |
| 26 | T3990052 Gasket set | Gasket set Full | 1 | $327.14 | Available to order | 1 |
