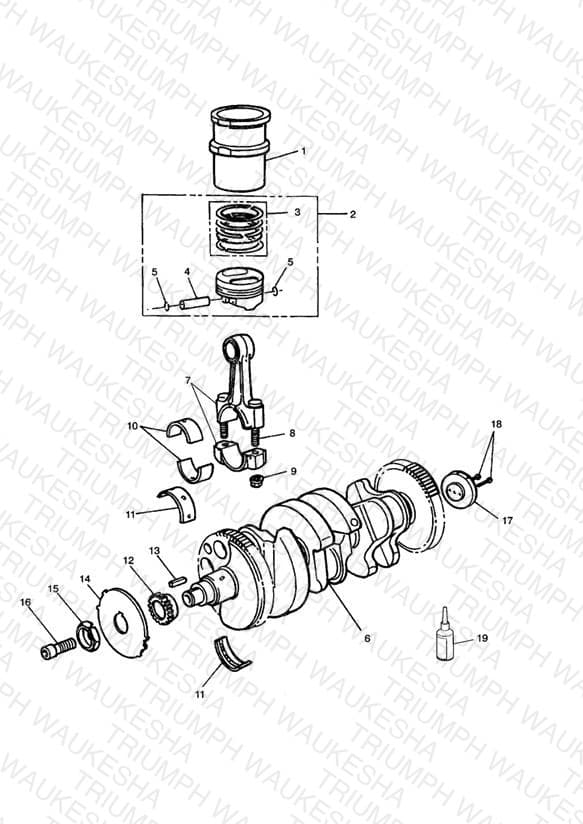

Crankshaft/Conn Rods/Pistons and Liners
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1160680 Cylinder liner | Cylinder liner CI Cylinder No 1 & 3 | 2 | $111.41 | Obsolete | View Details |
| 1 | T1160682 Cylinder liner | Cylinder liner No.2 * PART NO LONGER AVAILABLE * | 1 | $124.14 | Obsolete | View Details |
| 2 | 1120000-T0301 Piston assembly | Piston assembly Nos. 1/3 | 2 | $184.39 | Available to order | 2 |
| 2 | 1120002-T0301 Piston assembly | Piston assembly No.2 | 1 | $184.39 | Available to order | 1 |
| 3 | 1120120-T0301 Piston ring set | Piston ring set | 3 | $77.01 | Available to order | 3 |
| 4 | T1120800 Gudgeon pin | Gudgeon pin | 3 | $7.62 | Available to order | 3 |
| 5 | 1120015-T0301 Circlip, Piston | Circlip, Piston | 6 | $1.21 | Available to order | 6 |
| 6 | 1200400-T0301 Crankshaft assembly | Crankshaft assembly » ENG NO 108111 | 1 | $1067.83 | Obsolete | View Details |
| 6 | T1100006 Crankshaft assembly | Crankshaft assembly ENG NO 108112 » | 1 | $955.05 | Obsolete | View Details |
| 7 | T1110014 Connecting rod | Connecting rod | 3 | $129.27 | Available to order | 3 |
| 8 | T1110060 Bolt Con Rod | Bolt Con Rod | 6 | $10.55 | Backorder — Mid August 2026 | 6 |
| 8 | T1110301 Conrod Bolt, M8 x 0.75 x 42 | Conrod Bolt, M8 x 0.75 x 42 To be used with Con Rod T1111000 | 6 | $13.18 | Available to order | 6 |
| 9 | T1110016 Nut, Con Rod | Nut, Con Rod | 6 | $9.69 | Available to order | 6 |
| 10 | 1110051-T0301 Bearing, Con Rod Shell, White | Bearing, Con Rod Shell, White To be used with Con Rod 1110150 | 6 | $4.97 | Obsolete | View Details |
| 10 | 1110052-T0301 Bearing, Con Rod Shell, Red | Bearing, Con Rod Shell, Red To be used with Con Rod 1110150 | 6 | $6.39 | Available to order | 6 |
| 10 | 1110053-T0301 Bearing, Con Rod Shell, Blue | Bearing, Con Rod Shell, Blue To be used with Con Rod 1110150 | 6 | $10.18 | Available to order | 6 |
| 10 | T1110054 Bearing, Con Rod Shell, White | Bearing, Con Rod Shell, White To be used with Con Rod T1111000 & T1110014 | 6 | $10.18 | Available to order | 6 |
| 10 | T1110055 Bearing, Con Rod Shell, Red | Bearing, Con Rod Shell, Red To be used with Con Rod T1111000 & T1110014 | 6 | $12.70 | Available to order | 6 |
| 10 | T1110056 Bearing Con Rod Shell, Blue | Bearing Con Rod Shell, Blue To be used with Con Rod T1110014 | 6 | $12.70 | Available to order | 6 |
| 11 | 1160371-T0301 Bearing Shell, Main, Grooved | Bearing Shell, Main, Grooved White - ** Part No Longer Available ** | 8 | $13.96 | Obsolete | View Details |
| 11 | T1160751 Main Bearing Shell, Grooved | Main Bearing Shell, Grooved Red | 8 | $12.70 | Available to order | 8 |
| 11 | 1160373-T0301 Bearing Shell, Main, Grooved | Bearing Shell, Main, Grooved Blue - ** Part No Longer Available ** | 8 | $12.98 | Obsolete | View Details |
| 11 | 1160374-T0301 Bearing Shell, Main, Grooved | Bearing Shell, Main, Grooved Green - ** Part No Longer Available ** | 8 | $7.54 | Obsolete | View Details |
| 12 | T1140049 Sprocket, Crankshaft, 19T | Sprocket, Crankshaft, 19T | 1 | $86.49 | Out of Stock | Notify Me |
| 13 | 1100041-T0301 Crankshaft key | Crankshaft key | 1 | $6.83 | Available to order | 1 |
| 14 | T1290110 Rotor | Rotor ** Part No Longer Available ** | 1 | $32.16 | Obsolete | View Details |
| 15 | 1100039-T0301 Clamping piece | Clamping piece | 1 | $15.14 | Available to order | 1 |
| 16 | T3050161 Screw, Cap/HD. M8 x 20, Raw | Screw, Cap/HD. M8 x 20, Raw M8 x 20mm | 1 | $0.97 | Out of Stock | Notify Me |
| 17 | T1100107 Centrifugal disc assembly | Centrifugal disc assembly * PART NO LONGER AVAILABLE * | 1 | $60.46 | Obsolete | View Details |
| 18 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 19 | T4000625 Hylomar | Hylomar | 1 | $42.57 | Available to order | 1 |
