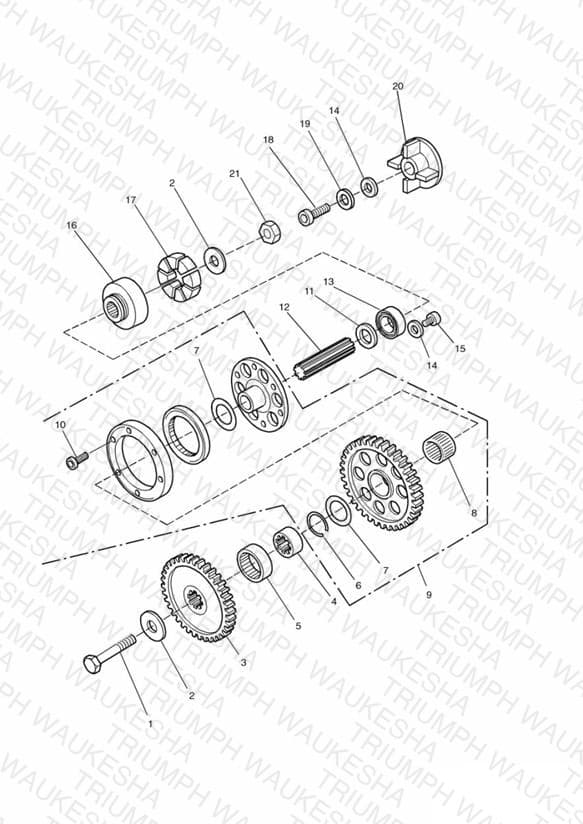

Alternator/Starter Drive Gears
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T3150129 Bolt | Bolt M8 x 102.5mm | 1 | $4.30 | Available to order | 1 |
| 2 | T3550022 Washer, Hardened, M8 | Washer, Hardened, M8 | 2 | $3.17 | Available to order | 2 |
| 3 | T1220960 Gear assembly | Gear assembly Alternator | 1 | $151.07 | Obsolete | View Details |
| 4 | T1220281 Sleeve | Sleeve | 1 | $41.70 | Unavailable | View Details |
| 5 | 3800019-T0301 Needle bearing | Needle bearing | 1 | $68.42 | Available to order | 1 |
| 6 | T3500201 Circlip, EXT, 23.5 x 1.2 | Circlip, EXT, 23.5 x 1.2 | 1 | $4.36 | Available to order | 1 |
| 7 | 1220330-T0301 Thrust washer | Thrust washer | 2 | $0.38 | Available to order | 2 |
| 8 | T3800011 Bearing, Ball, 254712 | Bearing, Ball, 254712 | 1 | $43.81 | Available to order | 1 |
| 9 | T1221025 Sprag and clutch assembly | Sprag and clutch assembly » ENG NO 109315 | 1 | $362.84 | Available to order | 1 |
| 9 | T1221035 Sprag and clutch assembly | Sprag and clutch assembly ENG NO 109316 » » ENG NO 114565 | 1 | $362.84 | Available to order | 1 |
| 10 | T3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw | Screw, Cap/Hd, M6 x 16, Enc, Raw | 6 | $0.57 | Available to order | 6 |
| 11 | 1220291-T0301 Spacer | Spacer | 1 | $3.93 | Obsolete | View Details |
| 12 | T1220268 Shaft | Shaft * PART NO LONGER AVAILABLE * | 1 | $129.85 | Obsolete | View Details |
| 13 | 3800020-T0301 Bearing | Bearing | 1 | $15.27 | Obsolete | View Details |
| 14 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.00 | Available to order | 2 |
| 15 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw | 2 | $1.47 | Available to order | 2 |
| 16 | T1220247 Housing | Housing | 1 | $63.70 | Available to order | 1 |
| 17 | T1220325 Rubber damper | Rubber damper * PART NO LONGER AVAILABLE * | 4 | $8.53 | Obsolete | View Details |
| 18 | T3150125 Bolt | Bolt PART NO LONGER AVAILABLE - M6 | 1 | $0.96 | Obsolete | View Details |
| 19 | 3550031-T0301 Belleville washer | Belleville washer | 1 | $0.97 | Available to order | 1 |
| 20 | T1220307 Centre | Centre PART NO LONGER AVAILABLE | 1 | $57.41 | Obsolete | View Details |
| 21 | T3350112 Nut | Nut | 1 | $8.33 | Available to order | 1 |
