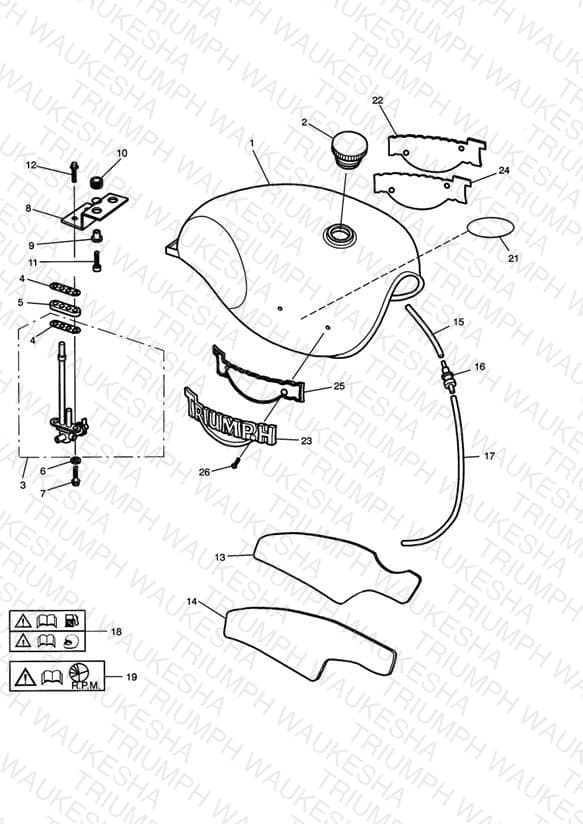

Fuel Tank and Fittings
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2401505-PP Fuel Tank Assy | Fuel Tank Assy Obsidian Black > 70588; Includes heat pads, items 13 & 14 and badges, items 22 & 23 | 1 | $845.05 | Obsolete | View Details |
| 1 | T2401505-CN Fuel Tank Assy | Fuel Tank Assy Volcanic Red > 70588; Includes heat pads, items 13 & 14 and badges, items 22 & 23 | 1 | $845.05 | Obsolete | View Details |
| 1 | T2401410-CL Fuel tank | Fuel tank Cardinal Red / Silver; Includes heat pads, items 13 & 14 | 1 | $947.27 | Obsolete | View Details |
| 1 | T2401410-HE Fuel tank | Fuel tank Imperial Green / Silver; Includes heat pads, items 13 & 14 | 1 | $947.27 | Obsolete | View Details |
| 1 | T2401420-PP Fuel tank | Fuel tank 70589 » Obsidian Black; Includes heat pads, items 13 & 14 | 1 | $845.05 | Obsolete | View Details |
| 1 | T2401420-CL Fuel tank | Fuel tank 70589 » Cardinal Red; Includes heat pads, items 13 & 14 | 1 | $845.05 | Obsolete | View Details |
| 1 | T2401420-HE Fuel tank | Fuel tank Imperial Green; Includes heat pads, items 13 & 14 | 1 | $861.95 | Obsolete | View Details |
| 1 | T2401410-JM Fuel tank | Fuel tank Sapphire Blue; Includes heat pads, items 13 & 14 | 1 | $947.27 | Obsolete | View Details |
| 2 | T2400597 Fuel Filler Cap, Screw Type | Fuel Filler Cap, Screw Type | 1 | $106.19 | Available to order | 1 |
| 3 | T2400150 Fuel Tap Assy, T309RT | Fuel Tap Assy, T309RT | 1 | $118.98 | Available to order | 1 |
| 4 | 2400086-T0301 Seal, Fuel Tap (EN) | Seal, Fuel Tap (EN) | 2 | $4.38 | Available to order | 2 |
| 5 | T2400151 Spacer, Fuel Tap Assy, T309RT | Spacer, Fuel Tap Assy, T309RT * PART NO LONGER AVAILABLE * | 1 | $41.06 | Obsolete | View Details |
| 6 | 3550150-T0301 Washer, Sealing, 11.5x6.4x0.64 | Washer, Sealing, 11.5x6.4x0.64 | 2 | $1.56 | Available to order | 2 |
| 7 | T3331102 Bolt, HHF, M6 X 25, S/S | Bolt, HHF, M6 X 25, S/S * PART NO LONGER AVAILABLE * | 2 | $2.00 | Obsolete | View Details |
| 8 | T2070712 Bridge bracket | Bridge bracket | 1 | $12.38 | Obsolete | View Details |
| 9 | T3010042 Flanged Sleeve, M6 x 10 x 18 | Flanged Sleeve, M6 x 10 x 18 | 2 | $1.91 | Available to order | 2 |
| 10 | T2400602 Grommet, Long, Tank Rear Mount | Grommet, Long, Tank Rear Mount | 2 | $2.24 | Available to order | 2 |
| 11 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.63 | Available to order | 2 |
| 12 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 2 | $1.84 | Available to order | 2 |
| 13 | T2301033 Heat shield | Heat shield LH | 1 | $56.54 | Available to order | 1 |
| 14 | T2301034 Heat shield | Heat shield RH | 1 | $27.42 | Obsolete | View Details |
| 15 | T3620285 Pipe breather | Pipe breather Upper | 1 | $4.01 | Available to order | 1 |
| 16 | T2400045 Valve, Roll Over | Valve, Roll Over » 82479 | 1 | $36.67 | Unavailable | View Details |
| 17 | T3620278 Hose | Hose Lower | 1 | $9.60 | Available to order | 1 |
| 18 | T3900194 Label, Fuel Tank, White Text | Label, Fuel Tank, White Text | 1 | $6.06 | Available to order | 1 |
| 19 | T3900154 Label, Running In, White Text | Label, Running In, White Text | 1 | $3.04 | Available to order | 1 |
| 21 | T2302860 Decal | Decal Silver With Black Fit to Black T2401505 Tanks only | 1 | $29.66 | Out of Stock | Notify Me |
| 21 | T2302865 Decal | Decal Cream Fit to Red T2401505 Tanks only | 1 | $27.92 | Obsolete | View Details |
| 22 | T3900086 Badge, Tank, LH, Type C | Badge, Tank, LH, Type C LH Fit to T2401410/420 Tanks only | 1 | $58.76 | Available to order | 1 |
| 23 | T3900087 Badge, Tank, RH, Type C | Badge, Tank, RH, Type C RH Fit to T2401410/420 Tanks only | 1 | $58.76 | Available to order | 1 |
| 24 | T3660137 Gasket, LH, Type C | Gasket, LH, Type C LH | 1 | $11.64 | Available to order | 1 |
| 25 | T3660136 Gasket, RH, Type C | Gasket, RH, Type C RH | 1 | $11.64 | Available to order | 1 |
| 26 | T3330529 Screw, Raised C'sunk, Trx | Screw, Raised C'sunk, Trx M5 x 16mm | 4 | $6.54 | Available to order | 4 |
