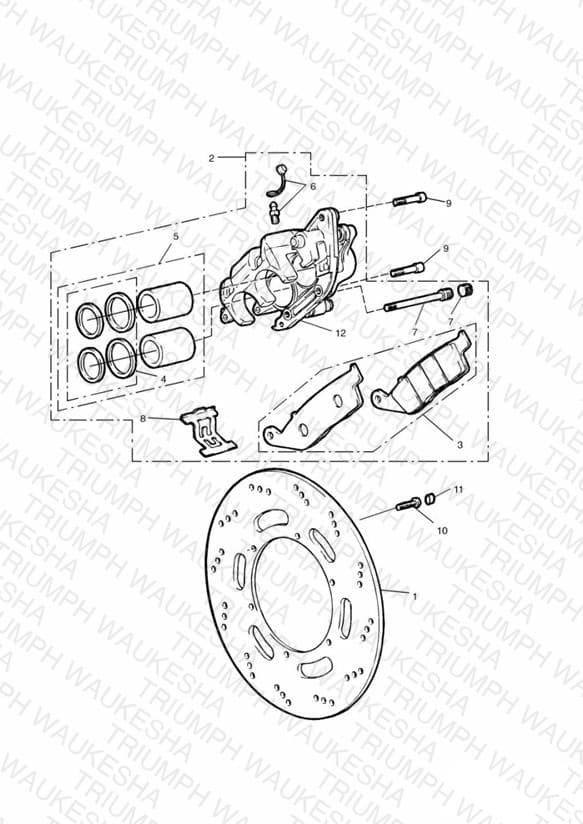

Front Brake Caliper and Disc
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2023305 Disc front | Disc front | 1 | $476.81 | Available to order | 1 |
| 2 | T2020542 Caliper Assy, Front | Caliper Assy, Front | 1 | $730.56 | Available to order | 1 |
| 3 | T2020077 Brake Pad Set, x 2 Pads | Brake Pad Set, x 2 Pads Contains 2 Pads | 1 | $69.11 | Available to order | 1 |
| 4 | T2020505 Seal Kit, 2 Piston Caliper | Seal Kit, 2 Piston Caliper | 1 | $57.03 | Available to order | 1 |
| 5 | T2020050 Piston Set | Piston Set | 1 | $119.76 | Available to order | 1 |
| 6 | T2020014 Bleed Screw | Bleed Screw | 1 | $15.27 | Available to order | 1 |
| 7 | T2020084 Pad Pin Set, D Spec | Pad Pin Set, D Spec | 1 | $15.95 | Available to order | 1 |
| 8 | T2020086 Pad, Spring, D Spec | Pad, Spring, D Spec | 1 | $10.34 | Available to order | 1 |
| 9 | T3200601 Bolt, HHF, M8 x 40, Slv | Bolt, HHF, M8 x 40, Slv M8 x 40mm | 2 | $3.04 | Available to order | 2 |
| 10 | T2029090 Spares Kit, Disc Bolts | Spares Kit, Disc Bolts Kit contains 12 bolts | 1 | $71.34 | Available to order | 1 |
| 11 | T3450200 Plug, Caphead, Chrome | Plug, Caphead, Chrome | 6 | $4.19 | Backorder — Mid August 2026 | 6 |
| 12 | T2025415 Bracket, Caliper, Front | Bracket, Caliper, Front | 1 | $59.87 | Out of Stock | Notify Me |
