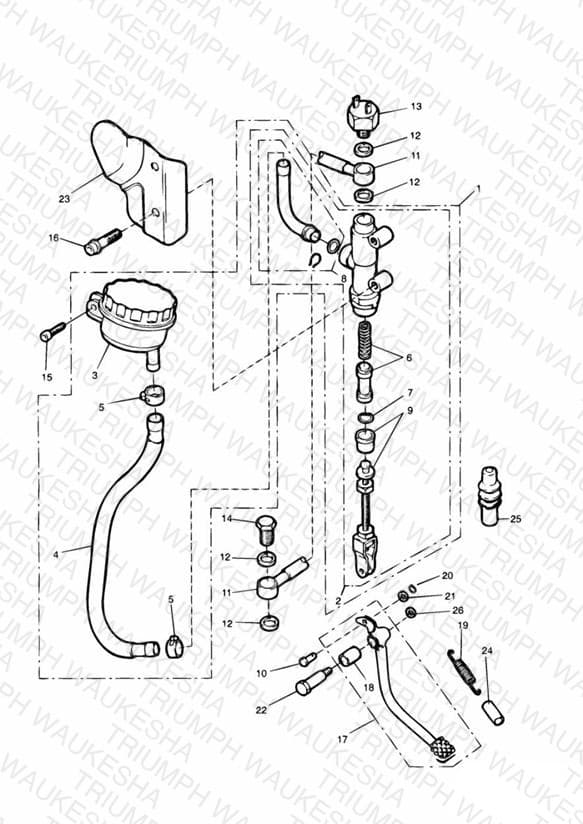

Rear Brake Master Cylinder
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2023135 Master cylinder assembly | Master cylinder assembly | 1 | $315.13 | Obsolete | View Details |
| 2 | 2023140-T0301 Master cylinder | Master cylinder | 1 | $179.88 | Obsolete | View Details |
| 3 | 2020430-T0301 Reservoir | Reservoir | 1 | $34.40 | Obsolete | View Details |
| 4 | T2020415 Hose | Hose | 1 | $28.89 | Obsolete | View Details |
| 5 | 2020440-T0301 Clip, Reservoir, M/Cyl, Rear | Clip, Reservoir, M/Cyl, Rear | 2 | $2.85 | Available to order | 2 |
| 6 | T2020031 Piston Set | Piston Set | 1 | $62.71 | Available to order | 1 |
| 7 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 8 | 2020476-T0301 Connector Set, M/Cyl Rear | Connector Set, M/Cyl Rear | 1 | $21.57 | Available to order | 1 |
| 9 | T2020489 Rod Assy | Rod Assy | 1 | $42.41 | Available to order | 1 |
| 10 | T3000012 CLEVIS PIN | CLEVIS PIN | 1 | $1.91 | Available to order | 1 |
| 11 | T2023118 Brake hose | Brake hose | 1 | $85.52 | Obsolete | View Details |
| 12 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 4 | $1.07 | Available to order | 4 |
| 13 | T2023120 Switch, Rear Brake | Switch, Rear Brake | 1 | $41.44 | Available to order | 1 |
| 14 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 1 | $7.02 | Available to order | 1 |
| 15 | 3210035-T0301 Screw, Torx, M6 x 20 | Screw, Torx, M6 x 20 M6 x 16mm | 1 | $3.33 | Obsolete | View Details |
| 16 | T3205109 Bolt, HHF, Lghtd, M8 x 45, Slv | Bolt, HHF, Lghtd, M8 x 45, Slv | 2 | $5.12 | Available to order | 2 |
| 17 | T2020079 Brake pedal | Brake pedal * Part No Longer Available * | 1 | $111.66 | Obsolete | View Details |
| 18 | T3750021 Bush | Bush | 1 | $7.02 | Available to order | 1 |
| 19 | 2020027-T0301 Spring | Spring | 1 | $1.60 | Obsolete | View Details |
| 20 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.07 | Available to order | 1 |
| 21 | T3550013 Washer | Washer | 1 | $1.13 | Available to order | 1 |
| 22 | T3330528 Bolt shoulder | Bolt shoulder | 1 | $9.53 | Obsolete | View Details |
| 23 | T2020428 Cover | Cover | 1 | $21.27 | Obsolete | View Details |
| 24 | 2020047-T0301 Sleeve | Sleeve | 1 | $2.48 | Obsolete | View Details |
| 25 | T2020429 Gaiter | Gaiter | 1 | $7.03 | Obsolete | View Details |
| 26 | T3550046 Washer | Washer | 1 | $0.90 | Obsolete | View Details |
