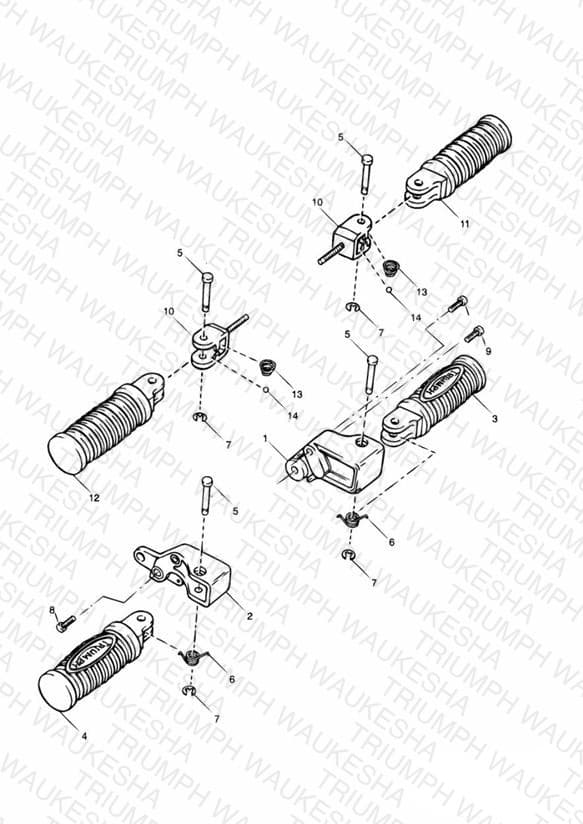

Footrests & Mountings
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2080254 Control Plate, LH | Control Plate, LH ** PART NO LONGER AVAILABLE ** | 1 | $110.75 | Obsolete | View Details |
| 2 | T2080255 Control Plate, RH, SP BG | Control Plate, RH, SP BG ** PART NO LONGER AVAILABLE ** | 1 | $102.55 | Obsolete | View Details |
| 3 | T2080548 Footrest Assy, Front, LH | Footrest Assy, Front, LH LH front | 1 | $62.31 | Obsolete | View Details |
| 4 | T2080249 Footrest assembly front | Footrest assembly front RH front * Part No Longer Available * | 1 | $100.47 | Obsolete | View Details |
| 5 | T2080721 Pivot Pin, Footrest | Pivot Pin, Footrest | 4 | $6.45 | Available to order | 4 |
| 6 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.29 | Available to order | 2 |
| 7 | T3500210 Circlip, Ext, 8 x 1 | Circlip, Ext, 8 x 1 | 4 | $2.14 | Available to order | 4 |
| 8 | T3050097 Capscrew | Capscrew M10 x 27, Control Plate to Prop Rail | 2 | $4.51 | Obsolete | View Details |
| 9 | T3050054 Capscrew | Capscrew M8 x 30mm | 2 | $4.74 | Available to order | 2 |
| 10 | T2070826 Clevis assy | Clevis assy | 2 | $15.95 | Available to order | 2 |
| 11 | T2080233 Kit, Footrest Assy, LH & RH | Kit, Footrest Assy, LH & RH Logo Footrest - LH rear | 1 | $112.13 | Backorder — Early August 2026 | 1 |
| 12 | T2080234 Kit, Footrest Assy, LH & RH | Kit, Footrest Assy, LH & RH Logo Footrest - RH rear | 1 | $112.13 | Available to order | 1 |
| 13 | T2080724 Spring, Footrest (Rear) | Spring, Footrest (Rear) | 2 | $2.10 | Available to order | 2 |
| 14 | T2080725 Detent Ball | Detent Ball | 2 | $1.72 | Available to order | 2 |
| 15 | T3050096 Capscrew | Capscrew M10 x 14mm | 1 | $8.33 | Available to order | 1 |
