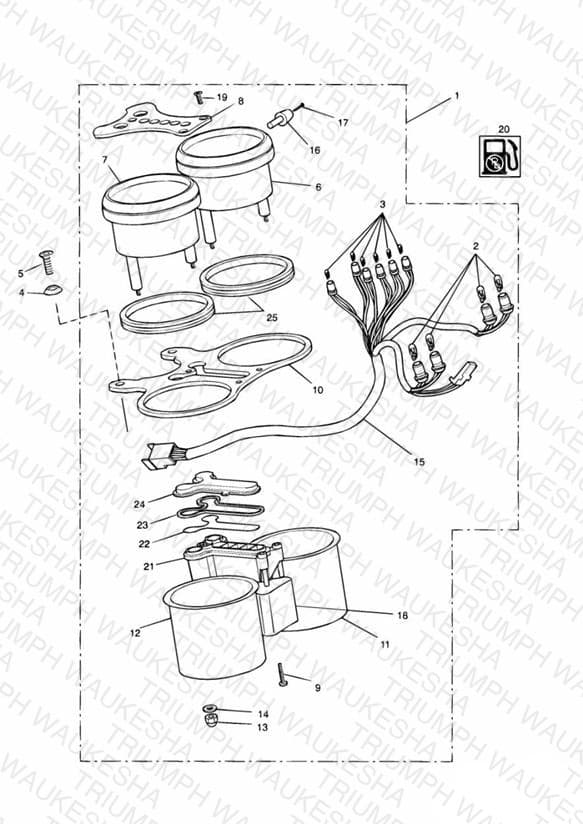

Instruments
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2501163 Instrument Assy, MPH | Instrument Assy, MPH Miles Per Hour | 1 | $1025.62 | Obsolete | View Details |
| 1 | T2501168 Instrument Assy, KPH | Instrument Assy, KPH Kilometers Per Hour | 1 | $893.63 | Obsolete | View Details |
| 2 | T2502089 Bulb, T10 12v 1.7w | Bulb, T10 12v 1.7w 2.0 watt Speedo, Tacho gauges | 4 | $2.91 | Available to order | 4 |
| 3 | T2502090 Bulb, T6.5 12v 1.7w | Bulb, T6.5 12v 1.7w 1.2 watt Warning lamps | 6 | $5.97 | Unavailable | View Details |
| 4 | T3550265 Washer, M5, C'sunk | Washer, M5, C'sunk | 2 | $4.46 | Available to order | 2 |
| 5 | T3330643 Screw, M5 x 30, CSK SKT, Patch | Screw, M5 x 30, CSK SKT, Patch | 2 | $2.14 | Available to order | 2 |
| 6 | T2502106 Speedometer mph | Speedometer mph » 86435 - VIN required on order | 1 | $322.72 | Obsolete | View Details |
| 6 | T2501174 Speedometer mph | Speedometer mph 86436 » | 1 | $322.72 | Obsolete | View Details |
| 6 | T2502107 Speedometer kph | Speedometer kph PART NO LONGER AVAILABLE - » 89489 | 1 | $343.64 | Obsolete | View Details |
| 6 | T2501175 Speedometer kph | Speedometer kph 89490 » | 1 | $329.17 | Obsolete | View Details |
| 7 | T2501173 Tachometer | Tachometer 86436 », MPH 89490 », KPH | 1 | $347.51 | Obsolete | View Details |
| 8 | T2501170 Plate | Plate Warning lamps » 86435, MPH » 89489, KPH | 1 | $68.08 | Available to order | 1 |
| 9 | T2501187 Screw | Screw | 2 | $1.22 | Obsolete | View Details |
| 10 | T2502108 Mounting plate | Mounting plate » 86435, MPH » 89489, KPH | 1 | $33.59 | Obsolete | View Details |
| 10 | T2501178 Mounting plate | Mounting plate 86436 », MPH 89490 », KPH - PART NO LONGER AVAILABLE | 1 | $36.83 | Obsolete | View Details |
| 11 | T2502092 Housing speedo | Housing speedo » 86435, MPH » 89489, KPH | 1 | $127.20 | Obsolete | View Details |
| 11 | T2501185 Housing speedo | Housing speedo 86436 », MPH 89490 », KPH | 1 | $157.44 | Available to order | 1 |
| 12 | T2502093 Housing tacho | Housing tacho » 86435, MPH » 89489, KPH | 1 | $117.84 | Obsolete | View Details |
| 12 | T2501186 Housing tacho | Housing tacho 86436 », MPH 89490 », KPH | 1 | $157.44 | Available to order | 1 |
| 13 | T2501189 Domed nut | Domed nut | 2 | $2.40 | Available to order | 2 |
| 14 | T2501188 Washer | Washer | 2 | $1.36 | Available to order | 2 |
| 15 | T2502046 Harness | Harness » 86435, MPH » 89489, KPH | 1 | $171.76 | Obsolete | View Details |
| 15 | T2501179 Harness | Harness 86436 », MPH 89490 », KPH | 1 | $180.35 | Obsolete | View Details |
| 16 | T2502051 Trip Knob | Trip Knob > 89489 | 1 | $8.00 | Available to order | 1 |
| 16 | T2501172 Knob, Trip, Speedometer | Knob, Trip, Speedometer 89490 » | 1 | $10.11 | Available to order | 1 |
| 17 | T2501205 Screw, Reset Knob | Screw, Reset Knob | 1 | $1.50 | Available to order | 1 |
| 18 | T2501184 Cover housing | Cover housing PART NO LONGER AVAILABLE - Warning lamps » 86435, MPH » 89489, KPH | 1 | $10.87 | Obsolete | View Details |
| 19 | T2501171 Screw | Screw | 3 | $1.61 | Available to order | 3 |
| 20 | T3930090 Label | Label Unleaded fuel US Cal ONLY | 1 | $10.89 | Obsolete | View Details |
| 21 | T2502084 Housing instruments | Housing instruments Warning lamps » 86435, MPH » 89489, KPH | 1 | $33.02 | Obsolete | View Details |
| 21 | T2501183 Housing | Housing Warning lamps 86436 », MPH 89490 », KPH | 1 | $33.02 | Obsolete | View Details |
| 22 | T2502081 Lens warning light | Lens warning light » 86435, MPH » 89489, KPH - PART NO LONGER AVAILABLE | 1 | $11.20 | Obsolete | View Details |
| 22 | T2501182 Lens warning light | Lens warning light 86436 », MPH 89490 », KPH | 1 | $13.31 | Out of Stock | Notify Me |
| 23 | T2502082 Gasket | Gasket » 86435, MPH » 89489, KPH | 1 | $3.65 | Obsolete | View Details |
| 23 | T2501181 Gasket | Gasket 86436 », MPH 89490 », KPH | 1 | $3.65 | Obsolete | View Details |
| 24 | T2502102 Cover instruments | Cover instruments » 86435, MPH » 89489, KPH | 1 | $8.49 | Obsolete | View Details |
| 24 | T2501180 Cover instruments | Cover instruments 86436 », MPH 89490 », KPH | 1 | $13.92 | Obsolete | View Details |
| 25 | T2501176 Gasket | Gasket » 86435, MPH » 89489, KPH | 2 | $11.54 | Available to order | 2 |
