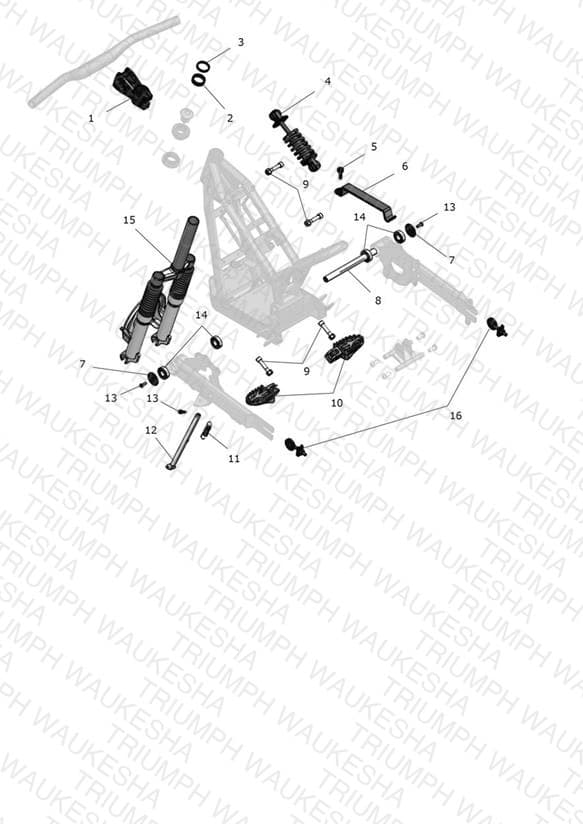

Main Frame Assembly
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TCHS061313 Stem, Frgd Alloy, Blk | Stem, Frgd Alloy, Blk | 1 | $47.92 | Available to order | 1 |
| 2 | TCHS121259 Headset, Spacer, 10Mm, Alu, Blk | Headset, Spacer, 10Mm, Alu, Blk | 1 | $3.59 | Available to order | 1 |
| 3 | TCHS121260 Headset, Spacer, 5Mm, Alu, Blk | Headset, Spacer, 5Mm, Alu, Blk | 1 | $3.59 | Available to order | 1 |
| 4 | TCHS031267 Rr Shock, DV22, L165, 250LB | Rr Shock, DV22, L165, 250LB | 1 | $66.25 | Out of Stock | Notify Me |
| 5 | TFIX012004 Bolt, M6X22Mm with Cover | Bolt, M6X22Mm with Cover | 1 | $2.15 | Available to order | 1 |
| 6 | TCHS091270 Battery Strap, 24V, STL, Red | Battery Strap, 24V, STL, Red | 1 | $21.00 | Available to order | 1 |
| 7 | TCHS081716 SA Cover, STL, Red | SA Cover, STL, Red | 2 | $11.89 | Available to order | 2 |
| 8 | TCHS081741 Swing Arm Axle, 15Mm, STL | Swing Arm Axle, 15Mm, STL | 1 | $30.37 | Available to order | 1 |
| 9 | TFIX012607 Bolt Kit, M8X45Mm, 2 Sets | Bolt Kit, M8X45Mm, 2 Sets | 2 | $3.59 | Available to order | 2 |
| 10 | TCHS011257 Footpeg Kit, Cast, Red | Footpeg Kit, Cast, Red | 1 | $80.83 | Available to order | 1 |
| 11 | TCHS101314 S Stand, Spring, STL, Silver | S Stand, Spring, STL, Silver | 1 | $10.78 | Available to order | 1 |
| 12 | TCHS101256 S Stand, Steel, Silver | S Stand, Steel, Silver | 1 | $25.89 | Available to order | 1 |
| 13 | TFIX011370 Bolt, M6X23Mm, Hex Cap Head | Bolt, M6X23Mm, Hex Cap Head | 3 | $2.15 | Available to order | 3 |
| 14 | TFIX051834 Bearing, 15X32X9Mm, STL, White | Bearing, 15X32X9Mm, STL, White | 4 | $10.49 | Available to order | 4 |
| 15 | TCHS021444 Forks, Coil, L-335, STL, White | Forks, Coil, L-335, STL, White | 1 | $130.00 | Available to order | 1 |
| 16 | TCHS112348 Chain, ADJ, 1 PC, 9Mm, STL, Blk | Chain, ADJ, 1 PC, 9Mm, STL, Blk | 1 | $21.00 | Available to order | 1 |
