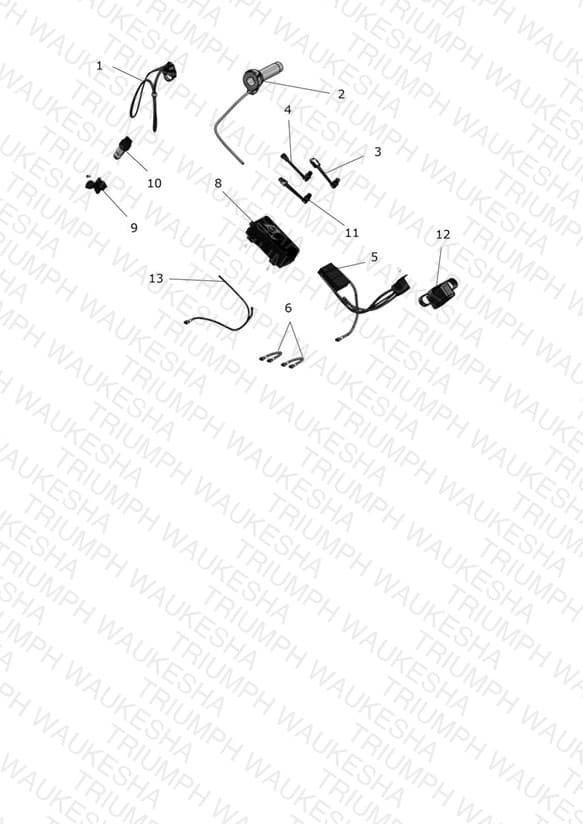

Electrical system
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TELE062812 OSET Kill Switch Assy, EV | OSET Kill Switch Assy, EV | 1 | $59.55 | Obsolete | View Details |
| 2 | TELE112989 Throttle, 36V, Grey OSET Grip | Throttle, 36V, Grey OSET Grip | 1 | $47.25 | Available to order | 1 |
| 3 | TELE082425 Response Dial, Water Resistant | Response Dial, Water Resistant | 1 | $21.00 | Available to order | 1 |
| 4 | TELE082372 Speed Dial, Water Resistant | Speed Dial, Water Resistant | 1 | $21.00 | Available to order | 1 |
| 5 | TELE101522 Harness, POS, 36V, Relay & Fuse | Harness, POS, 36V, Relay & Fuse | 1 | $40.50 | Available to order | 1 |
| 6 | TELE101390 Harness Link Wire, Short, Red | Harness Link Wire, Short, Red | 1 | $2.15 | Available to order | 1 |
| 8 | TELE042852 Controller, 36V, 3 Dial | Controller, 36V, 3 Dial | 1 | $240.50 | Available to order | 1 |
| 9 | TELE011272 Charge Port, Female, 3Pin | Charge Port, Female, 3Pin | 1 | $27.00 | Available to order | 1 |
| 10 | TELE072886 Key Switch Assembly | Key Switch Assembly | 1 | $22.40 | Available to order | 1 |
| 11 | TELE082373 Power Dial - Water Resistant | Power Dial - Water Resistant | 1 | $21.00 | Available to order | 1 |
| 12 | TELE091502 Relay Bag, 36V, Nylon, Blk | Relay Bag, 36V, Nylon, Blk | 1 | $27.00 | Out of Stock | Notify Me |
| 13 | TELE101520 Harness, Negative, 16.0 & 20.0L | Harness, Negative, 16.0 & 20.0L | 1 | $17.49 | Available to order | 1 |
