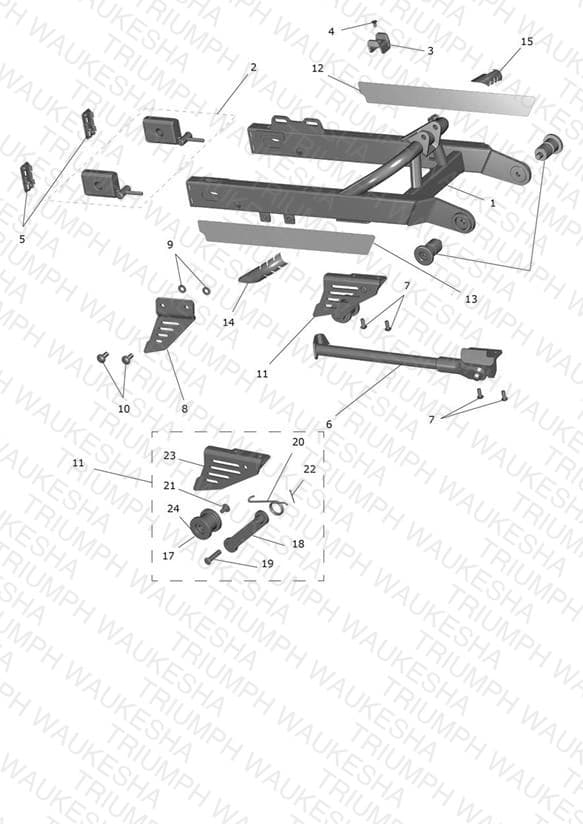

Rear Swinging Arm
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2050833 Swingarm, Txp-20, Fab, Blk | Swingarm, Txp-20, Fab, Blk | 1 | $93.84 | Available to order | 1 |
| 2 | T2050828 Dropout Slider Assy | Dropout Slider Assy | 1 | $28.11 | Available to order | 1 |
| 3 | T2050827 Chain Guide, Moulded, Black | Chain Guide, Moulded, Black | 1 | $1.73 | Available to order | 1 |
| 4 | TOS30007 Bolt, M4X8Mm, Csk, SS A2 | Bolt, M4X8Mm, Csk, SS A2 | 1 | $0.53 | Available to order | 1 |
| 5 | T2050829 End Cap Swingarm,20X40Mm,Mldg | End Cap Swingarm,20X40Mm,Mldg | 2 | $4.69 | Available to order | 2 |
| 6 | T2050837 Side Stand Assy, Med, Black | Side Stand Assy, Med, Black | 1 | $29.52 | Available to order | 1 |
| 7 | TOS30044 Bolt, M5X12Mm, Butt, 10.9, Blk | Bolt, M5X12Mm, Butt, 10.9, Blk | 4 | $1.15 | Available to order | 4 |
| 8 | T2050836 Sprocket Guard, Rear, Med, Blk | Sprocket Guard, Rear, Med, Blk | 1 | $18.66 | Available to order | 1 |
| 9 | TOS30006 Washer, M6, Form A, Steel, Blk | Washer, M6, Form A, Steel, Blk | 2 | $0.59 | Available to order | 2 |
| 10 | TOS30003 Bolt, M6X16Mm, Flgd, 10.9, Blk | Bolt, M6X16Mm, Flgd, 10.9, Blk | 2 | $1.91 | Available to order | 2 |
| 11 | T2050874 Chain Tensioner, Assy | Chain Tensioner, Assy | 1 | $30.24 | Available to order | 1 |
| 12 | T2050834 Decal, Swingarm, Lhs, Red | Decal, Swingarm, Lhs, Red | 1 | $25.12 | Available to order | 1 |
| 13 | T2050835 Decal, Swingarm, Rhs, Red | Decal, Swingarm, Rhs, Red | 1 | $25.12 | Available to order | 1 |
| 14 | T2050846 Protct Decal, Txp-20, Sa, Rhs | Protct Decal, Txp-20, Sa, Rhs | 1 | $4.23 | Available to order | 1 |
| 15 | T2050847 Protct Decal, Txp-20, Sa, Lhs | Protct Decal, Txp-20, Sa, Lhs | 1 | $4.23 | Available to order | 1 |
| 17 | T2059912 Chain Tensioner Roller Assy | Chain Tensioner Roller Assy | 1 | $39.38 | Out of Stock | Notify Me |
| 18 | T2050875 Arm, Chain Tensioner, Stl, Blk | Arm, Chain Tensioner, Stl, Blk | 1 | $30.24 | Available to order | 1 |
| 19 | TOS30049 Clevis Pin, 6X27Mm | Clevis Pin, 6X27Mm | — | $6.46 | Available to order | 1 |
| 20 | T2050940 Spring, Chain Tensioner, SS | Spring, Chain Tensioner, SS | 1 | $2.14 | Available to order | 1 |
| 21 | TOS30021 Bolt, M5X10Mm, Flgd, 10.9, Blk | Bolt, M5X10Mm, Flgd, 10.9, Blk | 1 | $1.61 | Available to order | 1 |
| 22 | TOS30048 Split Pin, 1.6X16Mm | Split Pin, 1.6X16Mm | 1 | $3.59 | Available to order | 1 |
| 23 | T2050877 Mount, Chain Tensioner, Blk | Mount, Chain Tensioner, Blk | 1 | $12.12 | Available to order | 1 |
| 24 | TOS30058 Bearing, RS, 8X16X5MM | Bearing, RS, 8X16X5MM | 2 | — | Unavailable | View Details |
