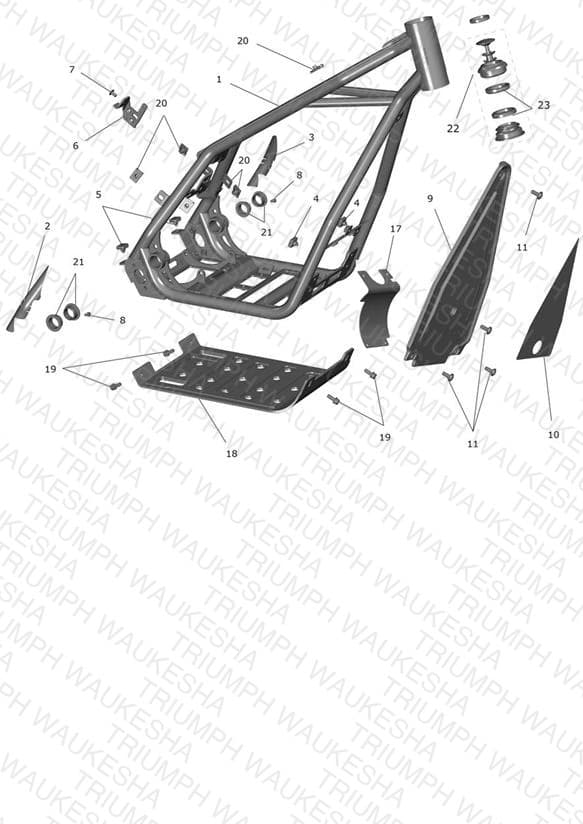

Main Frame Assembly
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2074207 Frame, Txp-20, Fab, Pntd, Red | Frame, Txp-20, Fab, Pntd, Red | 1 | $351.05 | Available to order | 1 |
| 2 | T2074232 Protct Decal, TXP-20, Frm, Rhs | Protct Decal, TXP-20, Frm, Rhs | 1 | $3.74 | Available to order | 1 |
| 3 | T2074233 Protct Decal, Txp-20, Frm, Lhs | Protct Decal, Txp-20, Frm, Lhs | 1 | $8.54 | Available to order | 1 |
| 4 | T2074179 Bump Stop, Rubber, 2Mm,Blk | Bump Stop, Rubber, 2Mm,Blk | 2 | $5.60 | Available to order | 2 |
| 5 | T2074178 Bump Stop, Rubber, 3Mm,Blk | Bump Stop, Rubber, 3Mm,Blk | 2 | $5.50 | Available to order | 2 |
| 6 | T2074234 Relay Fuse Plate,Fab,Steel,Blk | Relay Fuse Plate,Fab,Steel,Blk | 1 | $8.29 | Available to order | 1 |
| 7 | TOS30021 Bolt, M5X10Mm, Flgd, 10.9, Blk | Bolt, M5X10Mm, Flgd, 10.9, Blk | 1 | $1.61 | Available to order | 1 |
| 8 | TOS30002 Bolt, M4X6Mm, Cap, 10.9, Blk | Bolt, M4X6Mm, Cap, 10.9, Blk | 4 | $0.95 | Available to order | 4 |
| 9 | T2074219 Sguard, Fr, Txp-20, Mldg, Blk | Sguard, Fr, Txp-20, Mldg, Blk | 1 | $9.22 | Available to order | 1 |
| 10 | T2074221 Decal, Front Splashguard, Red | Decal, Front Splashguard, Red | 1 | $20.92 | Available to order | 1 |
| 11 | TOS30003 Bolt, M6X16Mm, Flgd, 10.9, Blk | Bolt, M6X16Mm, Flgd, 10.9, Blk | 4 | $1.91 | Available to order | 4 |
| 17 | T2074222 Sguard, Rr, TXP-20, Rubber | Sguard, Rr, TXP-20, Rubber | 1 | $7.67 | Available to order | 1 |
| 18 | T2074189 Sump Guard, Lrg, W Rubber Pad | Sump Guard, Lrg, W Rubber Pad | 1 | $65.54 | Available to order | 1 |
| 19 | TOS30069 Bolt,M6X14Mm,Cap+Wash,10.9,Blk | Bolt,M6X14Mm,Cap+Wash,10.9,Blk | 4 | $1.76 | Out of Stock | Notify Me |
| 20 | TOS30004 Spire Nut, M6, Steel | Spire Nut, M6, Steel | 5 | $2.99 | Available to order | 5 |
| 21 | TOS30001 Bearing, Plain, 23X20X11Mm | Bearing, Plain, 23X20X11Mm | 4 | $5.67 | Available to order | 4 |
| 22 | T2074184 Headset, Zs44, Alu, Blk | Headset, Zs44, Alu, Blk | 1 | $27.44 | Available to order | 1 |
| 23 | TOS30055 Bearing, Mh-P03K, Steel | Bearing, Mh-P03K, Steel | 2 | $5.98 | Available to order | 2 |
