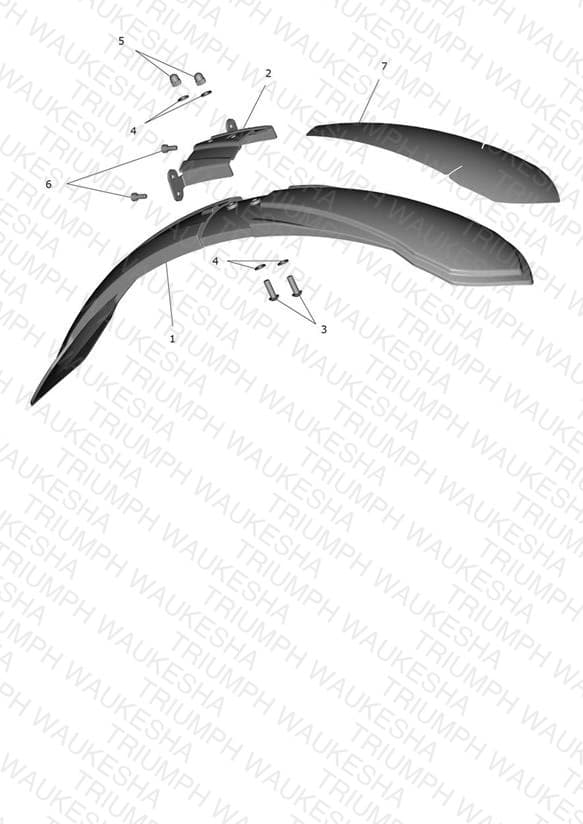

Front Mudguard
Parts (7)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2317902 Mudguard Front, Mould, 530Mm | Mudguard Front, Mould, 530Mm | 1 | $21.28 | Available to order | 1 |
| 2 | T2317904 Brkt, Fr Mudguard, Txp-24, Blk | Brkt, Fr Mudguard, Txp-24, Blk | 1 | $5.07 | Available to order | 1 |
| 3 | TOS30008 Bolt, M5X16Mm, Butt, SS A2 | Bolt, M5X16Mm, Butt, SS A2 | 2 | $0.64 | Available to order | 2 |
| 4 | TOS30018 Washer, M5, Form A, Steel, Blk | Washer, M5, Form A, Steel, Blk | 4 | $0.53 | Available to order | 4 |
| 5 | TOS30019 Nut, M5, Domed, SS A2 | Nut, M5, Domed, SS A2 | 2 | $1.29 | Available to order | 2 |
| 6 | TOS30020 Bolt, M4X10Mm, Cap, 10.9, Blk | Bolt, M4X10Mm, Cap, 10.9, Blk | 2 | $2.27 | Available to order | 2 |
| 7 | T2317903 Decal,Front Mudguard,Red | Decal,Front Mudguard,Red | 1 | $16.78 | Available to order | 1 |
