Rocket 3 Wall
Schematic
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|

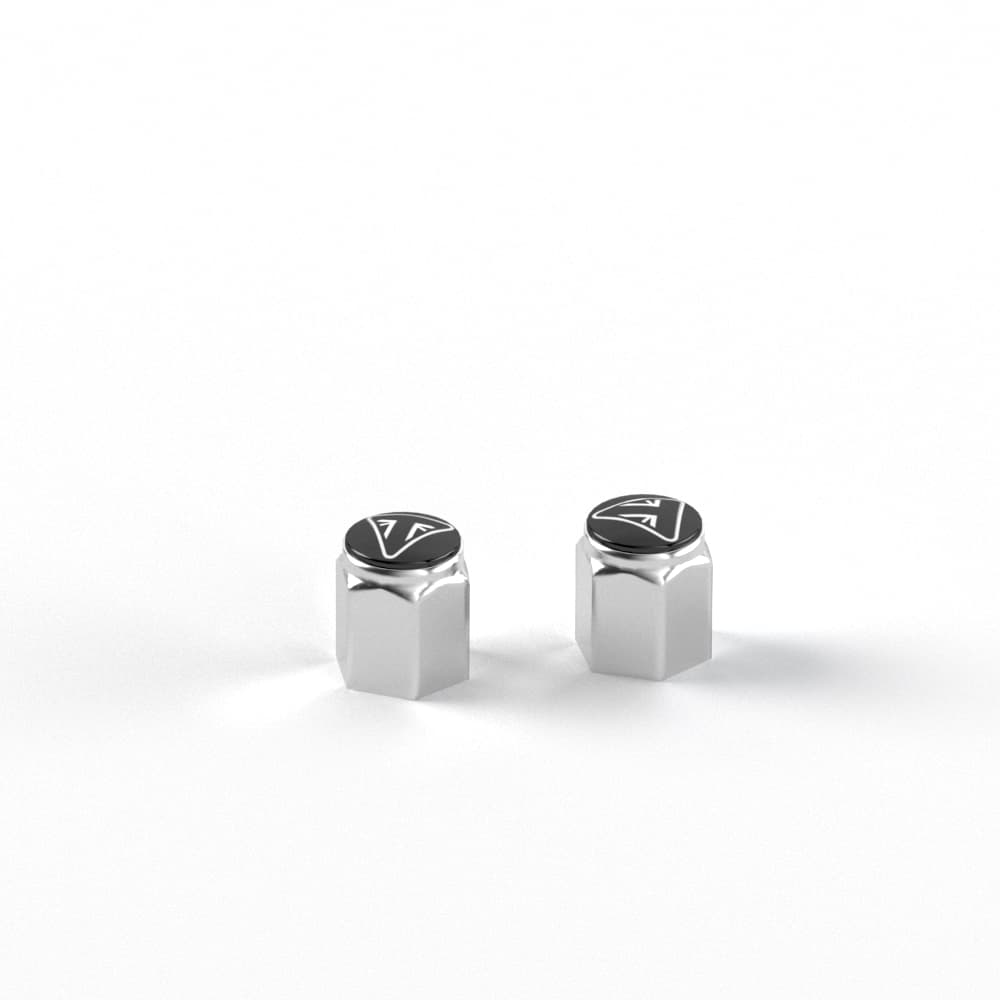

| 1 | A2009007 Valve Caps - Bubble Badge Chrome | Valve Caps - Bubble Badge Chrome | — | $17.64 | Obsolete | View Details |
| 2 | A2009006 Valve Caps - Laser Etched Chrome | Valve Caps - Laser Etched Chrome | — | $18.09 | Obsolete | View Details |
| 3 | A9630716 Round Mirror, Bar End Kit | Round Mirror, Bar End Kit | — | $234.00 | Unavailable | View Details |
| 4 | A9630721 Sports Mirror, Bar End Kit | Sports Mirror, Bar End Kit | — | $213.20 | Unavailable | View Details |
| 5 | A9778833 Shift Assist Kit | Shift Assist Kit | — | $741.60 | Available to order | 1 |
| 6 | A9510469 Tail Pack, Sports, 12L | Tail Pack, Sports, 12L | — | $262.65 | Available to order | 1 |
| 7 | A9510694 Pannier, Sports, Pair, QD, 20L | Pannier, Sports, Pair, QD, 20L | — | $607.70 | Unavailable | View Details |
| 8 | A9518171 Tank Bag, Sports, Magnetic | Tank Bag, Sports, Magnetic | — | $288.40 | Available to order | 1 |
| 9 | A9798021 Rubber Knee Pads | Rubber Knee Pads | — | $124.80 | Available to order | 1 |
| 10 | A2317704 Pillion Seat, Sport Comfort | Pillion Seat, Sport Comfort | — | $218.40 | Unavailable | View Details |
| 11 | A9700876 Rider Seat, Tour | Rider Seat, Tour | — | $406.85 | Backorder — Early November 2026 | 1 |
| 12 | A9700877 Rider Seat, Sport | Rider Seat, Sport | — | $406.85 | Available to order | 1 |
