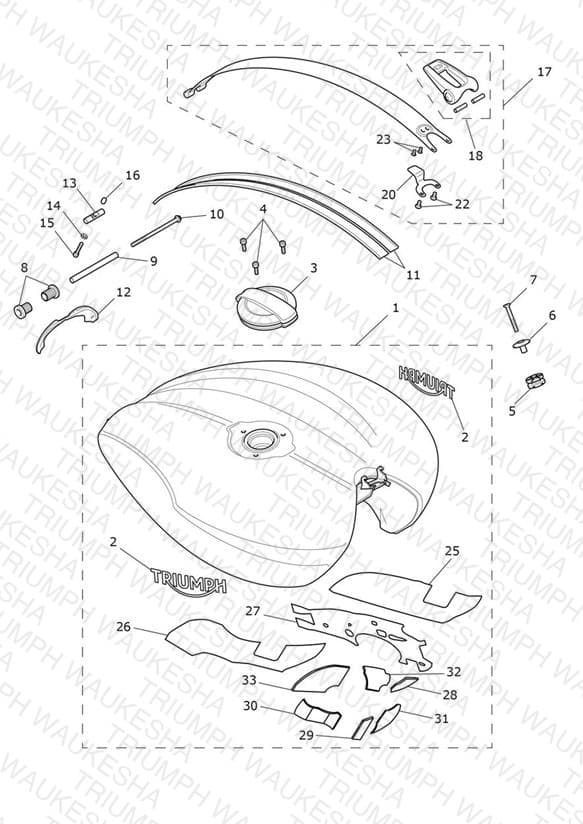

Fuel Tank - Sapphire Black, Matt Silver Ice & Sapphire Black/Carnival Red Bikes
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2405817-PM Fuel Tank Spares Assy, Sapphire Black | Fuel Tank Spares Assy, Sapphire Black | 1 | $2884.96 | Available to order | 1 |
| 1 | T2405817-MT Fuel Tank Spares Assy, Matt Silver Ice | Fuel Tank Spares Assy, Matt Silver Ice | 1 | $2985.92 | Available to order | 1 |
| 1 | T2402704-PM Fuel Tank Spares Assy, Sapphire Blk/Carnival Red | Fuel Tank Spares Assy, Sapphire Blk/Carnival Red BM5581 > | 1 | $2985.92 | Available to order | 1 |
| 2 | T2401563 Tank Badge, 140mm | Tank Badge, 140mm Fitted to Sapphire Black & Sapphire Black/Carnival Red Tanks | 2 | $69.37 | Available to order | 2 |
| 2 | T2402207 Tank Badge, 140mm | Tank Badge, 140mm Fitted to Matt Silver Ice Tanks | 2 | $69.37 | Available to order | 2 |
| 3 | T2401982 Fuel Filler Cap, Monza | Fuel Filler Cap, Monza | 1 | $138.75 | Available to order | 1 |
| 4 | T3050342 Screw, Cap/Hd, M5 x 16, Slv | Screw, Cap/Hd, M5 x 16, Slv | 3 | $2.85 | Available to order | 3 |
| 5 | T3020611 Grommet, Castellated | Grommet, Castellated | 1 | $3.99 | Available to order | 1 |
| 6 | T3010291 Flanged Sleeve, CSK, M6 | Flanged Sleeve, CSK, M6 | 1 | $11.62 | Out of Stock | Notify Me |
| 7 | T3330934 Screw, Csk, M6 x 50, Slv | Screw, Csk, M6 x 50, Slv | 1 | $1.11 | Available to order | 1 |
| 8 | T2403597 Rubber Bush | Rubber Bush | 2 | $3.50 | Available to order | 2 |
| 9 | T3330711 Sleeve, OD10, ID7, L85 | Sleeve, OD10, ID7, L85 | 1 | $10.26 | Available to order | 1 |
| 10 | T3205089 Bolt, HHF, Lghtd, M6 x 100 | Bolt, HHF, Lghtd, M6 x 100 | 1 | $4.45 | Available to order | 1 |
| 11 | T2402188 Gasket, Tank Strap, Adhesive | Gasket, Tank Strap, Adhesive | 2 | $28.49 | Available to order | 2 |
| 12 | T2402186 Shield, Tank Strap, Rubber | Shield, Tank Strap, Rubber | 1 | $28.27 | Available to order | 1 |
| 13 | T2402149 Mount Bar, Tank Strap | Mount Bar, Tank Strap | 1 | $28.27 | Available to order | 1 |
| 14 | T3550289 Washer, 11 x 5.1 x 1.6 | Washer, 11 x 5.1 x 1.6 | 1 | $2.25 | Out of Stock | Notify Me |
| 15 | T3050343 Screw, Cap/Hd, M5 x 30, Slv | Screw, Cap/Hd, M5 x 30, Slv | 1 | $4.45 | Available to order | 1 |
| 16 | T3450159 Rubber Cap, 4.8 x 6,5 | Rubber Cap, 4.8 x 6,5 | 1 | $3.90 | Available to order | 1 |
| 17 | T2402138 Tank Strap Assembly | Tank Strap Assembly | 1 | $178.52 | Available to order | 1 |
| 18 | T2401917 Bracket Assy, Tank Strap | Bracket Assy, Tank Strap | 1 | $44.49 | Available to order | 1 |
| 20 | T2402141 Hook, Tank Strap | Hook, Tank Strap | 1 | $5.58 | Backorder — Late August 2026 | 1 |
| 22 | T3330916 Screw, But/Hd, M5 x 10, SS | Screw, But/Hd, M5 x 10, SS | 2 | $6.61 | Backorder — Late August 2026 | 2 |
| 23 | T3330917 Screw, But/Hd, M4 x 8, SS | Screw, But/Hd, M4 x 8, SS | 2 | $6.61 | Backorder — Late August 2026 | 2 |
| 25 | T2402326 Foil, Heat Reflecting, RH | Foil, Heat Reflecting, RH | 1 | $34.87 | Out of Stock | Notify Me |
| 26 | T2402327 Foil, Heat Reflecting, LH | Foil, Heat Reflecting, LH | 1 | $35.74 | Backorder — Late August 2026 | 1 |
| 27 | T2402328 Foil, Heat Reflecting, Centre | Foil, Heat Reflecting, Centre | 1 | $36.96 | Out of Stock | Notify Me |
| 28 | T2401970 Foam, Tank, 1 | Foam, Tank, 1 | 1 | $12.32 | Available to order | 1 |
| 29 | T2401971 Foam, Tank, 2 | Foam, Tank, 2 | 1 | $12.32 | Available to order | 1 |
| 30 | T2401972 Foam, Tank, 3 | Foam, Tank, 3 | 1 | $3.51 | Available to order | 1 |
| 31 | T2401973 Foam, Tank, 4 | Foam, Tank, 4 | 1 | $3.08 | Available to order | 1 |
| 32 | T2401974 Foam, Tank, 5 | Foam, Tank, 5 | 1 | $3.08 | Available to order | 1 |
| 33 | T2401975 Foam, Tank, 6 | Foam, Tank, 6 | 1 | $5.30 | Available to order | 1 |
