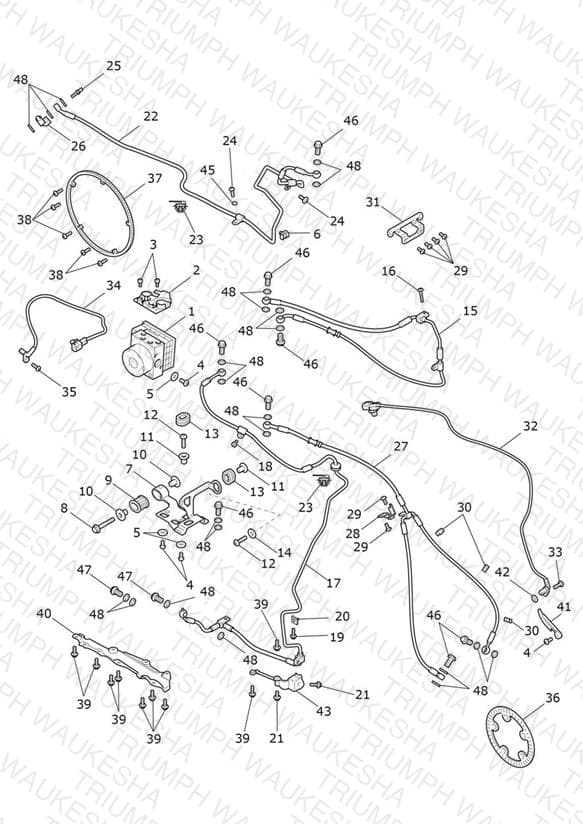

ABS System
Parts (51)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2021606 Modulator, ABS, IMU, Wet | Modulator, ABS, IMU, Wet | 1 | $2319.57 | Available to order | 1 |
| 2 | T2021607 Anti-Rotation Moulding, Banjo | Anti-Rotation Moulding, Banjo | 1 | $12.95 | Available to order | 1 |
| 3 | T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc | Screw, Cap/Hd, M5 x 10, Slv, Enc | 2 | $3.04 | Available to order | 2 |
| 4 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 4 | $1.40 | Available to order | 4 |
| 5 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 3 | $1.21 | Available to order | 3 |
| 6 | T3700197 Clip, Hose, 6.5d, Twin | Clip, Hose, 6.5d, Twin | 1 | $8.01 | Available to order | 1 |
| 7 | T2022147 Bracket, ABS, Modulator | Bracket, ABS, Modulator | 1 | $78.28 | Out of Stock | Notify Me |
| 8 | T3202307 Bolt, HHF, M8 x 50, Slv | Bolt, HHF, M8 x 50, Slv | 1 | $6.65 | Available to order | 1 |
| 9 | T2022148 Rubber Mount, ABS Bracket | Rubber Mount, ABS Bracket | 1 | $5.58 | Out of Stock | Notify Me |
| 10 | T3010235 Flanged Sleeve, M8 | Flanged Sleeve, M8 | 2 | $17.11 | Available to order | 2 |
| 11 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 2 | $4.12 | Available to order | 2 |
| 12 | T3300069 Screw, Pan/Hd, Tx, M6 x 27, Enc | Screw, Pan/Hd, Tx, M6 x 27, Enc | 2 | $1.82 | Available to order | 2 |
| 13 | T3020112 Grommet, Slotted, Castellated | Grommet, Slotted, Castellated | 2 | $3.92 | Available to order | 2 |
| 14 | T3555046 Washer, 6.4 x 20 x 1.6 | Washer, 6.4 x 20 x 1.6 | 1 | $4.20 | Available to order | 1 |
| 15 | T2029250 Kit, Brake & Clutch Lines, Short | Kit, Brake & Clutch Lines, Short > AG2517 All Except BR & > AG2211 BR Only | 1 | $174.99 | Available to order | 1 |
| 15 | T2024711 Brake Line, Front M/Cyl to Mod, Short | Brake Line, Front M/Cyl to Mod, Short AG2518 > All Except BR & AG2212 > BR Only | 1 | $114.08 | Backorder — Late August 2026 | 1 |
| 16 | T3330659 Screw, Pan/Hd, TX, M5 x 25, Enc | Screw, Pan/Hd, TX, M5 x 25, Enc | 1 | $3.73 | Backorder — Mid August 2026 | 1 |
| 17 | T2021611 Brake Line, Rear M/Cyl to Modulator, Frw | Brake Line, Rear M/Cyl to Modulator, Frw | 1 | $145.39 | Available to order | 1 |
| 18 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 1 | $3.80 | Backorder — Early September 2026 | 1 |
| 19 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 1 | $3.24 | Available to order | 1 |
| 20 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $3.39 | Available to order | 1 |
| 21 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 3 | $3.50 | Available to order | 3 |
| 22 | T2024744 Brake Line, Modulator to Caliper, Rear | Brake Line, Modulator to Caliper, Rear | 1 | $202.12 | Available to order | 1 |
| 23 | T3700373 Clip, Coupler | Clip, Coupler | 2 | $1.97 | Available to order | 2 |
| 24 | T3450290 Fir Tree, M5, Dia 12.1 x 15 | Fir Tree, M5, Dia 12.1 x 15 | 2 | $1.42 | Available to order | 2 |
| 25 | T3250027 Banjo Bolt, Bleed, M10 x 30 | Banjo Bolt, Bleed, M10 x 30 | 1 | $16.74 | Available to order | 1 |
| 26 | T2026044 Spacer, Brake Hose | Spacer, Brake Hose | 1 | $7.35 | Available to order | 1 |
| 27 | T2024755 Brake Line, Headstock to Caliper | Brake Line, Headstock to Caliper | 1 | $244.60 | Backorder — Late August 2026 | 1 |
| 28 | T2022992 Bracket, Brake Line, Headstock | Bracket, Brake Line, Headstock | 1 | $10.03 | Available to order | 1 |
| 29 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 6 | $0.97 | Available to order | 6 |
| 30 | T3701103 Clip, Twin, 3.9-7 | Clip, Twin, 3.9-7 | 3 | $3.07 | Backorder — Mid September 2026 | 3 |
| 31 | T2022111 Bracket, Hose, Steered | Bracket, Hose, Steered | 1 | $7.81 | Out of Stock | Notify Me |
| 32 | T2023514 Sensor, Wheel Speed, CHT, 135 | Sensor, Wheel Speed, CHT, 135 | 1 | $183.55 | Out of Stock | Notify Me |
| 33 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 1 | $2.63 | Available to order | 1 |
| 34 | T2026135 Sensor, Wheel Speed, CHT, 135 | Sensor, Wheel Speed, CHT, 135 | 1 | $189.11 | Available to order | 1 |
| 35 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 1 | $0.97 | Available to order | 1 |
| 36 | T2022022 Pulser Ring, ABS | Pulser Ring, ABS 60 Teeth, Black | 1 | $216.72 | Available to order | 1 |
| 37 | T2021618 Pulser Ring, Rear, 5 x 187, PCD | Pulser Ring, Rear, 5 x 187, PCD 60 Teeth, Black | 1 | $221.80 | Available to order | 1 |
| 38 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 5 | $0.97 | Available to order | 5 |
| 39 | T3330892 Bolt, RHHF, M5 x 15, S5041 | Bolt, RHHF, M5 x 15, S5041 | 9 | $1.13 | Available to order | 9 |
| 40 | T1231322 Cable, Retainer, Sump, Plate | Cable, Retainer, Sump, Plate | 1 | $18.78 | Available to order | 1 |
| 41 | T2021630 Conduit, ABS Sensor, Front | Conduit, ABS Sensor, Front | 1 | $9.56 | Available to order | 1 |
| 42 | T3552001 Washer, M6 x 14 x 0.5 | Washer, M6 x 14 x 0.5 Use as required | 1 | $1.79 | Available to order | 1 |
| 42 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 Use as required | 1 | $1.69 | Available to order | 1 |
| 42 | T3552003 Washer, M6 x 14 x 1.5 | Washer, M6 x 14 x 1.5 Use as required | 1 | $1.79 | Available to order | 1 |
| 42 | T3552004 Washer, M6 x 14 x 2 | Washer, M6 x 14 x 2 Use as required | 1 | $1.91 | Available to order | 1 |
| 43 | T2022956 Bracket, Brake Line, Distributor | Bracket, Brake Line, Distributor | 1 | $21.23 | Available to order | 1 |
| 45 | T1151225 O Ring, Restrictor | O Ring, Restrictor | 1 | $2.00 | Available to order | 1 |
| 46 | T3250032 Banjo Bolt, M10 x 19 | Banjo Bolt, M10 x 19 | 8 | $5.58 | Available to order | 8 |
| 47 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 2 | $7.02 | Available to order | 2 |
| 48 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 23 | $1.07 | Available to order | 23 |
