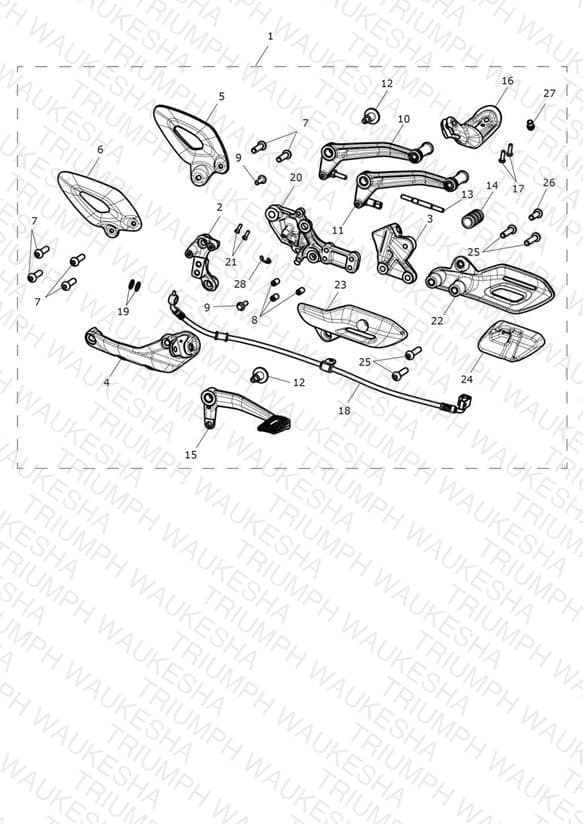

Foot Control Kit, Middle, Black
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9770250 Foot Control Kit, Middle, Black | Foot Control Kit, Middle, Black | 1 | $655.00 | Available to order | 1 |
| 2 | T2082321 Mount, Control Plate, RH | Mount, Control Plate, RH | 1 | $98.80 | Available to order | 1 |
| 3 | T2082325 Control Plate, LH | Control Plate, LH | 1 | $126.75 | Available to order | 1 |
| 4 | T2082326 Control Plate, RH | Control Plate, RH | 1 | $220.29 | Available to order | 1 |
| 5 | T2082685 Heel Guard, LH, Black | Heel Guard, LH, Black | 1 | $91.32 | Available to order | 1 |
| 6 | T2082687 Heel Guard, RH, Black | Heel Guard, RH, Black | 1 | $91.32 | Available to order | 1 |
| 7 | T3335015 Screw, But/Hd, TX, M8 x 30 | Screw, But/Hd, TX, M8 x 30 | 6 | $8.33 | Out of Stock | Notify Me |
| 8 | T3454321 Plug, M8 x 16, Black | Plug, M8 x 16, Black | 3 | $1.97 | Available to order | 3 |
| 9 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 2 | $5.30 | Available to order | 2 |
| 10 | T9770306 Pedal, Gearchange Assy | Pedal, Gearchange Assy | 1 | $224.27 | Available to order | 1 |
| 11 | T9770308 Pedal, Gearchange Assy, Black | Pedal, Gearchange Assy, Black | 1 | $224.27 | Available to order | 1 |
| 12 | T3331520 Bolt, Shld, M8 x 1.25, Slv, Enc | Bolt, Shld, M8 x 1.25, Slv, Enc | 2 | $10.63 | Available to order | 2 |
| 13 | T2082360 Gearchange Rod | Gearchange Rod | 1 | $28.80 | Available to order | 1 |
| 14 | T2082795 Rubber, Gearchange Pedal | Rubber, Gearchange Pedal | 1 | $9.02 | Available to order | 1 |
| 15 | T2022237 Brake Pedal, Black | Brake Pedal, Black | 1 | $180.80 | Available to order | 1 |
| 16 | T2082668 Footrest, LH, Black | Footrest, LH, Black | 1 | $136.04 | Available to order | 1 |
| 17 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 18 | T2022920 Brake Line, Rear M/Cyl to Sump, Mid | Brake Line, Rear M/Cyl to Sump, Mid | 1 | $118.66 | Available to order | 1 |
| 19 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 2 | $1.07 | Available to order | 2 |
| 20 | T2082465 Bracket, Sidestand | Bracket, Sidestand | 1 | $221.27 | Available to order | 1 |
| 21 | T3330245 Bolt, C/Hd, Tx, M4 x 12, Slv, Enc | Bolt, C/Hd, Tx, M4 x 12, Slv, Enc | 2 | $11.79 | Available to order | 2 |
| 22 | T1161195 Protector, Crankcase, LHS | Protector, Crankcase, LHS | 1 | $55.95 | Available to order | 1 |
| 23 | T1162295 Protector, Crankcase, RHS | Protector, Crankcase, RHS | 1 | $55.95 | Available to order | 1 |
| 24 | T1161305 Protector, Crankcase, Rubber | Protector, Crankcase, Rubber | 1 | $53.13 | Available to order | 1 |
| 25 | T3335016 Screw, But/Hd, M8 x 35 | Screw, But/Hd, M8 x 35 | 4 | $7.02 | Available to order | 4 |
| 26 | T3335012 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 1 | $8.33 | Available to order | 1 |
| 27 | T2085164 Peg, Bank Angle, 9.2mm | Peg, Bank Angle, 9.2mm | 1 | $14.07 | Available to order | 1 |
| 28 | T3500350 Circlip, E Type, Int Dia 9 | Circlip, E Type, Int Dia 9 | 1 | $3.55 | Available to order | 1 |
