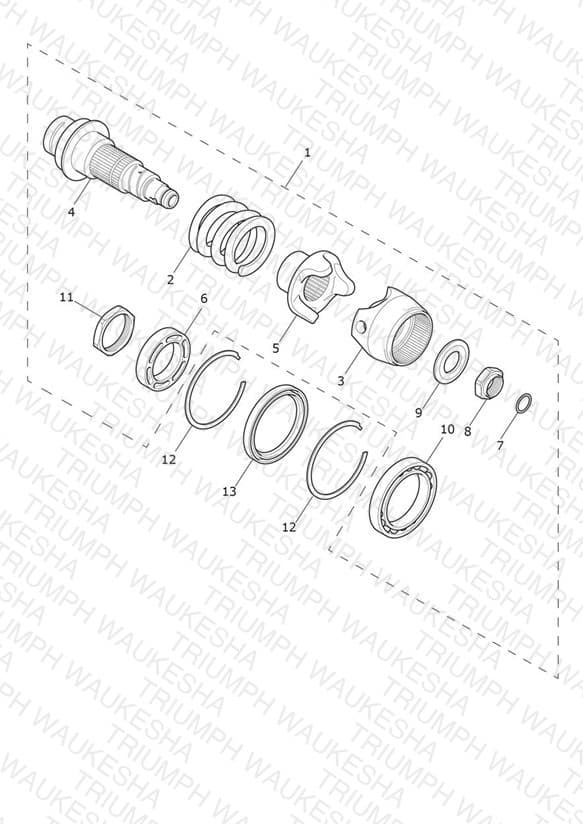

Torsional Damper Assembly
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1278000 Torsional Damper Assembly | Torsional Damper Assembly | 1 | $642.54 | Out of Stock | Notify Me |
| 2 | T1278001 Spring, Torsional Damper | Spring, Torsional Damper | 1 | $21.08 | Available to order | 1 |
| 3 | T1278002 Cam, Damper, Splined | Cam, Damper, Splined | 1 | $126.75 | Backorder — Mid August 2026 | 1 |
| 4 | T1278003 Shaft, Damper | Shaft, Damper | 1 | $286.47 | Out of Stock | Notify Me |
| 5 | T1278004 Follower, Splined Damper | Follower, Splined Damper | 1 | $104.40 | Out of Stock | Notify Me |
| 6 | T1278011 Spacer, Torsional Damper | Spacer, Torsional Damper | 1 | $88.99 | Out of Stock | Notify Me |
| 7 | T3600191 O Ring, 16 x 2 | O Ring, 16 x 2 | 1 | $3.77 | Available to order | 1 |
| 8 | T1170106 Nut, Clutch, 22mm | Nut, Clutch, 22mm | 1 | $13.51 | Available to order | 1 |
| 9 | T3551213 Washer, 22.2 x 42 x 3, Grooved | Washer, 22.2 x 42 x 3, Grooved | 1 | $20.44 | Available to order | 1 |
| 10 | T3801988 Bearing, Ball, 55 x 80 x 13 | Bearing, Ball, 55 x 80 x 13 | 1 | $95.04 | Out of Stock | Notify Me |
| 11 | T3351958 Nut, M39, Slv, Eng | Nut, M39, Slv, Eng | 1 | $39.29 | Available to order | 1 |
| 12 | T3500365 Snap Ring, Internal, Dia 80 | Snap Ring, Internal, Dia 80 | 2 | $7.35 | Available to order | 2 |
| 13 | T3604360 Seal, Oil, 62 x 80 x 9 | Seal, Oil, 62 x 80 x 9 | 1 | $69.35 | Available to order | 1 |
