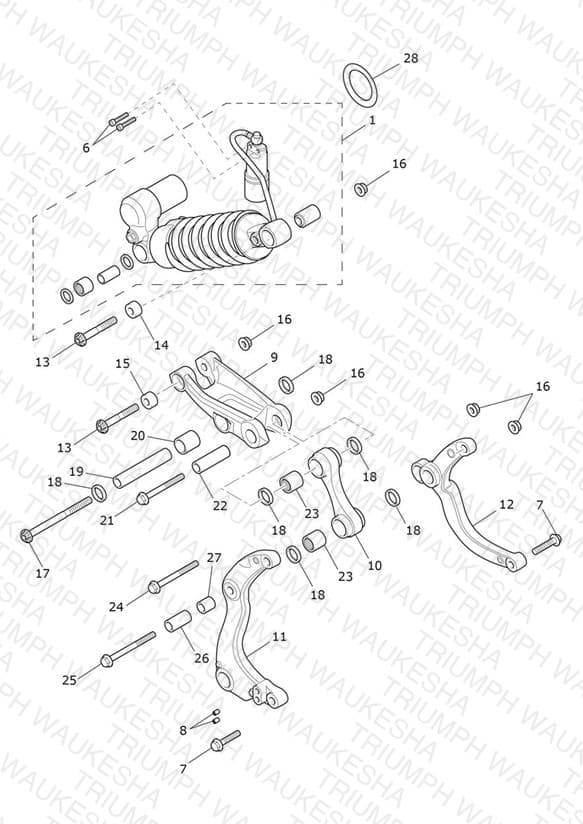

RSU & Linkage
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2050364 Rear Suspension Unit | Rear Suspension Unit | 1 | $1199.49 | Available to order | 1 |
| 6 | T3051061 Screw, Cap/Hd, M6 x 30, Slv | Screw, Cap/Hd, M6 x 30, Slv | 2 | $5.14 | Available to order | 2 |
| 7 | T3205825 Bolt, HHF, Lghtd, M10 x 45, Slv | Bolt, HHF, Lghtd, M10 x 45, Slv | 2 | $6.83 | Available to order | 2 |
| 8 | T3454321 Plug, M8 x 16, Black | Plug, M8 x 16, Black | 2 | $1.97 | Available to order | 2 |
| 9 | T2050457 Rocker, Forged | Rocker, Forged | 1 | $186.39 | Backorder — Late August 2026 | 1 |
| 10 | T2050458 Drag Link, Forged & M/cd | Drag Link, Forged & M/cd | 1 | $162.14 | Out of Stock | Notify Me |
| 11 | T2050464 Bracket, Drag Link, RHS | Bracket, Drag Link, RHS | 1 | $151.37 | Available to order | 1 |
| 12 | T2050470 Bracket, Drag Link, LHS | Bracket, Drag Link, LHS | 1 | $151.37 | Out of Stock | Notify Me |
| 13 | T3332620 Bolt, TX, M10 x 75 LG | Bolt, TX, M10 x 75 LG | 2 | $5.30 | Available to order | 2 |
| 14 | T3010141 Sleeve, 24 x 10.1 x 15.5 | Sleeve, 24 x 10.1 x 15.5 | 1 | $16.78 | Available to order | 1 |
| 15 | T3010142 Sleeve, 16 x 10.1 x 14.5 | Sleeve, 16 x 10.1 x 14.5 | 1 | $11.62 | Out of Stock | Notify Me |
| 16 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 5 | $4.16 | Available to order | 5 |
| 17 | T3334413 Bolt, TX, M10 x 135 | Bolt, TX, M10 x 135 | 1 | $21.98 | Out of Stock | Notify Me |
| 18 | T3600231 Seal, 20 x 27 x 5 | Seal, 20 x 27 x 5 | 6 | $10.26 | Backorder — Mid September 2026 | 6 |
| 19 | T3010132 Sleeve, 20 x 10.5 x 110 | Sleeve, 20 x 10.5 x 110 | 1 | $50.33 | Available to order | 1 |
| 20 | T3800198 Bearing, Needle, 27 x 20 x 30 | Bearing, Needle, 27 x 20 x 30 | 1 | $19.19 | Out of Stock | Notify Me |
| 21 | T3205769 Bolt, HHF, M10 x 85, Slv | Bolt, HHF, M10 x 85, Slv | 1 | $5.30 | Available to order | 1 |
| 22 | T3010134 Sleeve, 20 x 10.5 x 64 | Sleeve, 20 x 10.5 x 64 | 1 | $22.31 | Out of Stock | Notify Me |
| 23 | T3800219 Bearing, Needle, 27 x 20 x 25 | Bearing, Needle, 27 x 20 x 25 | 2 | $18.07 | Available to order | 2 |
| 24 | T3205854 Bolt, HHF, M10 x 90, Slv | Bolt, HHF, M10 x 90, Slv | 1 | $8.25 | Out of Stock | Notify Me |
| 25 | T3205763 Bolt, HHF, M10 x 100, Slv | Bolt, HHF, M10 x 100, Slv | 1 | $2.85 | Backorder — Late September 2026 | 1 |
| 26 | T3010147 Sleeve, 20 x 10.4 x 21.5 | Sleeve, 20 x 10.4 x 21.5 | 1 | $11.62 | Out of Stock | Notify Me |
| 27 | T3010136 Sleeve, 20 x 10.2 x 39.5 | Sleeve, 20 x 10.2 x 39.5 | 1 | $18.99 | Out of Stock | Notify Me |
| 28 | T3700922 Band, EPDM | Band, EPDM | 1 | $1.97 | Available to order | 1 |
