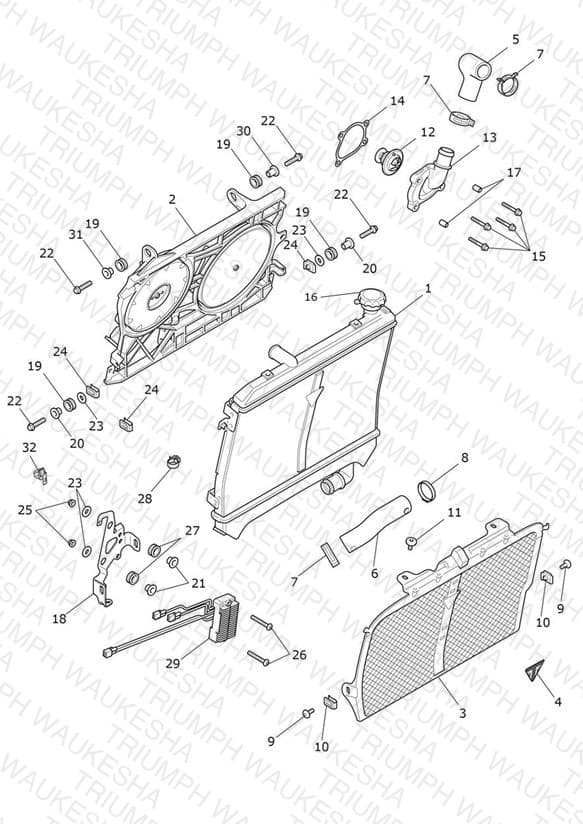

Radiator, Fan & Thermostat
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2100679 Radiator | Radiator | 1 | $897.44 | Available to order | 1 |
| 2 | T2101732 Mounting Frame, Radiator | Mounting Frame, Radiator | 1 | $431.44 | Available to order | 1 |
| 3 | T2101278 Guard, Radiator | Guard, Radiator | 1 | $88.66 | Unavailable | View Details |
| 4 | T3951060 Badge, Flat, Type 1 | Badge, Flat, Type 1 | 1 | $13.33 | Available to order | 1 |
| 5 | T2101483 Hose, Coolant, Radiator Inlet | Hose, Coolant, Radiator Inlet | 1 | $20.31 | Backorder — Late September 2026 | 1 |
| 6 | T2101484 Hose, Coolant, Radiator Outlet | Hose, Coolant, Radiator Outlet | 1 | $20.98 | Available to order | 1 |
| 7 | T3706219 Clamp, Constant Tension, Dia 34 | Clamp, Constant Tension, Dia 34 | 3 | $13.71 | Available to order | 3 |
| 8 | T2100989 Clip, Hose, Oetiker, 34mm | Clip, Hose, Oetiker, 34mm | 1 | $13.71 | Available to order | 1 |
| 9 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 2 | $4.92 | Available to order | 2 |
| 10 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 11 | T3331010 Bolt, But/Hd, Skt, M6 x 16, S/S | Bolt, But/Hd, Skt, M6 x 16, S/S | 1 | $4.30 | Available to order | 1 |
| 12 | T2100676 Thermostat | Thermostat | 1 | $68.42 | Out of Stock | Notify Me |
| 13 | T2101219 Cover, Thermostat | Cover, Thermostat | 1 | $152.80 | Out of Stock | Notify Me |
| 14 | T2102297 Gasket, Thermostat | Gasket, Thermostat | 1 | $17.31 | Available to order | 1 |
| 15 | T3205600 Bolt, HHF, Lghtd, M6 x 35, 10.9 | Bolt, HHF, Lghtd, M6 x 35, 10.9 | 4 | $1.63 | Available to order | 4 |
| 16 | T2101623 Cap Assy | Cap Assy | 1 | $19.13 | Available to order | 1 |
| 17 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 2 | $3.90 | Available to order | 2 |
| 18 | T2101860 Bracket, Radiator Lower | Bracket, Radiator Lower | 1 | $15.84 | Available to order | 1 |
| 19 | T3020230 Grommet, 15 x 5 x 10 | Grommet, 15 x 5 x 10 | 4 | $3.51 | Available to order | 4 |
| 20 | T3010701 Flanged Sleeve, 6.4 x 10 x 14.5 | Flanged Sleeve, 6.4 x 10 x 14.5 | 2 | $5.30 | Available to order | 2 |
| 21 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $5.78 | Available to order | 2 |
| 22 | T3205070 Bolt, HHF, Lghtd, M6 x 30, Slv | Bolt, HHF, Lghtd, M6 x 30, Slv | 4 | $2.37 | Available to order | 4 |
| 23 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 4 | $1.21 | Available to order | 4 |
| 24 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 3 | $4.92 | Available to order | 3 |
| 25 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 2 | $2.25 | Available to order | 2 |
| 26 | T3330716 Screw, Pan/Hd, TX, M5 x 45 | Screw, Pan/Hd, TX, M5 x 45 | 2 | $2.60 | Out of Stock | Notify Me |
| 27 | T3020033 Grommet; 12 x 2 x 9.6 | Grommet; 12 x 2 x 9.6 | 2 | $4.45 | Available to order | 2 |
| 28 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 1 | $3.24 | Available to order | 1 |
| 29 | T2507700 Fan, PWM Controller | Fan, PWM Controller | 1 | $262.80 | Available to order | 1 |
| 30 | T3010720 Flanged Sleeve, 6.4 x 10 x 12.5 | Flanged Sleeve, 6.4 x 10 x 12.5 | 1 | $5.76 | Available to order | 1 |
| 32 | T3700373 Clip, Coupler | Clip, Coupler | 1 | $1.97 | Available to order | 1 |
