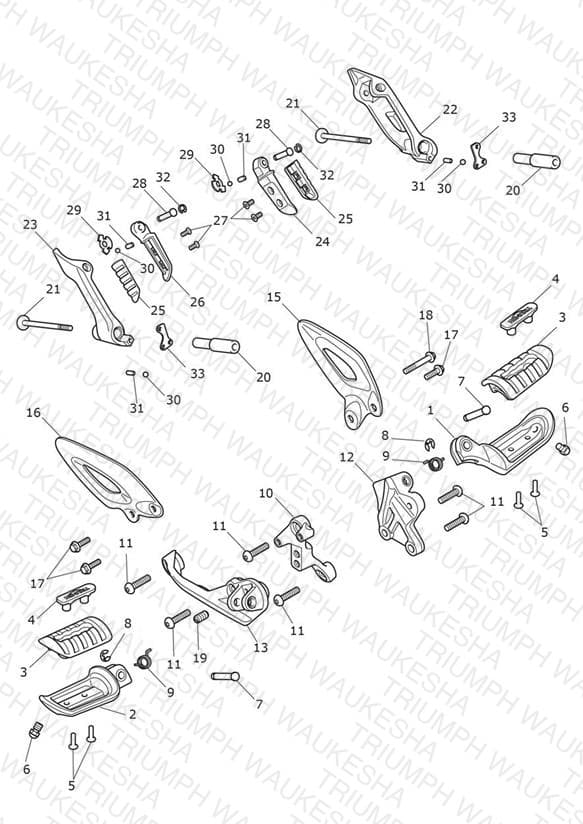

Foot Controls
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2082434 Footrest, LH | Footrest, LH | 1 | $136.04 | Available to order | 1 |
| 2 | T2082335 Footrest, RH | Footrest, RH | 1 | $136.04 | Available to order | 1 |
| 3 | T2082336 Rubber, Footrest | Rubber, Footrest | 2 | $15.93 | Available to order | 2 |
| 4 | T2082506 Insert, Footrest | Insert, Footrest | 2 | $115.58 | Available to order | 2 |
| 5 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 4 | $0.97 | Available to order | 4 |
| 6 | T2085164 Peg, Bank Angle, 9.2mm | Peg, Bank Angle, 9.2mm | 2 | $14.07 | Available to order | 2 |
| 7 | T2080546 Pin, Pivot, Footrest | Pin, Pivot, Footrest | 2 | $6.55 | Available to order | 2 |
| 8 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 2 | $2.85 | Available to order | 2 |
| 9 | T2089638 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.94 | Available to order | 2 |
| 10 | T2082321 Mount, Control Plate, RH | Mount, Control Plate, RH | 1 | $98.80 | Available to order | 1 |
| 11 | T3335015 Screw, But/Hd, TX, M8 x 30 | Screw, But/Hd, TX, M8 x 30 | 6 | $8.33 | Out of Stock | Notify Me |
| 12 | T2082325 Control Plate, LH | Control Plate, LH | 1 | $126.75 | Available to order | 1 |
| 13 | T2082326 Control Plate, RH | Control Plate, RH | 1 | $220.29 | Available to order | 1 |
| 15 | T2082925 Carbon Heel Guard, LH | Carbon Heel Guard, LH | 1 | $62.55 | Available to order | 1 |
| 16 | T2082926 Carbon Heel Guard, RH | Carbon Heel Guard, RH | 1 | $62.55 | Available to order | 1 |
| 17 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 3 | $5.30 | Available to order | 3 |
| 18 | T3202342 Bolt, RHHF, M6 x 42, Slv | Bolt, RHHF, M6 x 42, Slv | 1 | $6.65 | Available to order | 1 |
| 19 | T3454321 Plug, M8 x 16, Black | Plug, M8 x 16, Black | 1 | $1.97 | Available to order | 1 |
| 20 | T2083303 Sleeve, Pivot, Hanger | Sleeve, Pivot, Hanger | 2 | $75.49 | Backorder — Mid August 2026 | 2 |
| 21 | T3332696 Bolt, TX, M8 x 110 | Bolt, TX, M8 x 110 | 2 | $20.98 | Out of Stock | Notify Me |
| 22 | T2082462 Footrest Hanger, LH | Footrest Hanger, LH | 1 | $222.56 | Backorder — Late August 2026 | 1 |
| 23 | T2082463 Footrest Hanger, RH | Footrest Hanger, RH | 1 | $222.56 | Out of Stock | Notify Me |
| 24 | T2082339 Footrest, Rear, LH | Footrest, Rear, LH | 1 | $68.94 | Available to order | 1 |
| 25 | T2082341 Rear Footrest Rubber | Rear Footrest Rubber | 2 | $68.94 | Backorder — Late August 2026 | 2 |
| 26 | T2082340 Footrest, Rear, RH | Footrest, Rear, RH | 1 | $68.94 | Available to order | 1 |
| 27 | T3331313 Screw, Csk, M5 x 12, Enc | Screw, Csk, M5 x 12, Enc | 4 | $1.97 | Available to order | 4 |
| 28 | T2080954 Pivot Pin, Rear Footrest | Pivot Pin, Rear Footrest | 2 | $8.75 | Available to order | 2 |
| 29 | T2082545 Plate, Detent | Plate, Detent | 2 | $6.24 | Out of Stock | Notify Me |
| 30 | T2081675 Detent Ball | Detent Ball | 4 | $1.91 | Available to order | 4 |
| 31 | T2081674 Spring, Detent | Spring, Detent | 4 | $6.39 | Available to order | 4 |
| 32 | T3501312 Circlip, Int, 12 x 1 | Circlip, Int, 12 x 1 | 2 | $7.27 | Available to order | 2 |
| 33 | T2082949 Plate, Detent | Plate, Detent | 2 | $6.24 | Available to order | 2 |
