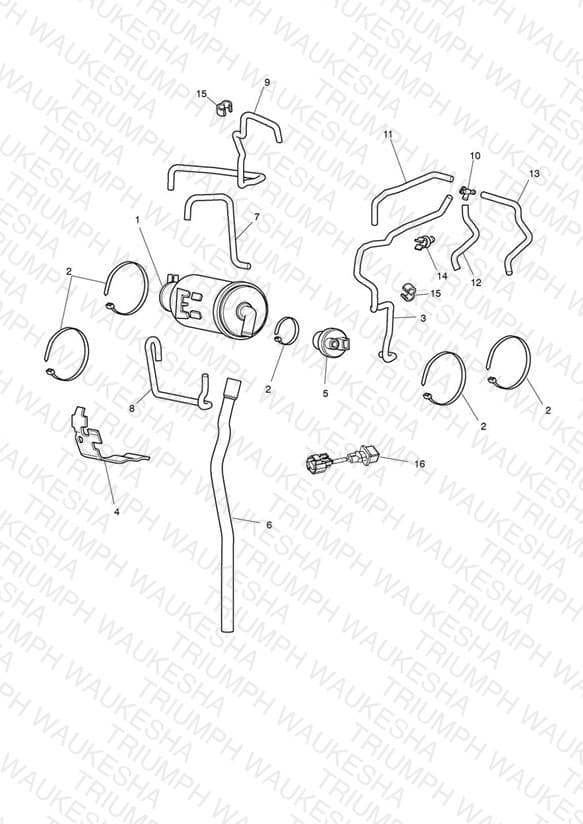

Evaporative Loss Control System, Roadster - Hong Kong 584108 >
← Evaporative Loss Control System, Roadster - Canada Eng No 671837 >Evaporative Loss Control System - California Only (Not Roadster) →
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2400160 Carbon Canister | Carbon Canister | 1 | $55.04 | Obsolete | View Details |
| 2 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 5 | $1.01 | Available to order | 5 |
| 3 | T1247103 Hose, Formed, Valve to Purge | Hose, Formed, Valve to Purge | 1 | $27.76 | Available to order | 1 |
| 4 | T1240552 Retainer, Purge Valve | Retainer, Purge Valve | 1 | $8.79 | Available to order | 1 |
| 5 | T1240802 Purge Valve, EFI Replaced by T1245822 — Spares Kit, Purge Valve | Purge Valve, EFI > 851848 | 1 | $61.50 | Unavailable | View Details |
| 5 | T1245551 Purge Valve, Damped | Purge Valve, Damped 851849 > | 1 | $33.16 | Available to order | 1 |
| 6 | T1242612 Hose, ID 13, Evap | Hose, ID 13, Evap | 1 | $14.68 | Available to order | 1 |
| 7 | T1242623 Hose, Formed, Can to Valve | Hose, Formed, Can to Valve | 1 | $24.84 | Available to order | 1 |
| 8 | T1242624 Hose, Twin Wall, Swaged | Hose, Twin Wall, Swaged | 1 | $10.84 | Available to order | 1 |
| 9 | T1247102 Hose, Formed, Vac Signal | Hose, Formed, Vac Signal | 1 | $25.59 | Available to order | 1 |
| 10 | T1242929 Connector, 4 Way | Connector, 4 Way | 1 | $11.31 | Available to order | 1 |
| 11 | T1247105 Hose, Formed, Purge 3 | Hose, Formed, Purge 3 | 1 | $24.64 | Available to order | 1 |
| 12 | T1247106 Hose, Formed, Purge 2 | Hose, Formed, Purge 2 | 1 | $24.64 | Available to order | 1 |
| 13 | T1247107 Hose, Formed, Purge 1 | Hose, Formed, Purge 1 | 1 | $24.64 | Available to order | 1 |
| 14 | T3700233 Clip, Brake Hose | Clip, Brake Hose | 1 | $6.27 | Available to order | 1 |
| 15 | T2040811 Twin Clip, Brake Hose | Twin Clip, Brake Hose | 2 | $2.79 | Available to order | 2 |
| 16 | T2501868 Fly Lead, Purge Valve | Fly Lead, Purge Valve 851849 > | 1 | $24.12 | Out of Stock | Notify Me |
