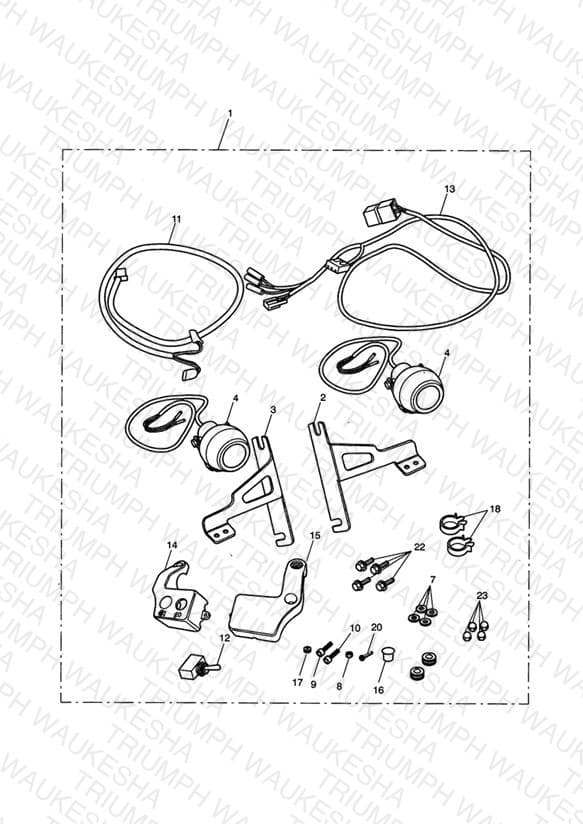

Fog Light Kit > 237540
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9738042 Fog Light Kit | Fog Light Kit | 1 | $244.40 | Obsolete | View Details |
| 2 | A9730072 Bracket, Aux Light LH | Bracket, Aux Light LH | 1 | $29.16 | Obsolete | View Details |
| 3 | A9730073 Bracket, Aux Light RH | Bracket, Aux Light RH | 1 | $32.40 | Obsolete | View Details |
| 4 | A9730080 Fog Lamp 12V 55W | Fog Lamp 12V 55W | 2 | $110.24 | Obsolete | View Details |
| 7 | A9910072 Washer, M6, Stainless | Washer, M6, Stainless | 4 | $8.63 | Available to order | 4 |
| 8 | A9910083 Nut, M5 | Nut, M5 PART NO LONGER AVAILABLE | 1 | $2.65 | Obsolete | View Details |
| 9 | A9910084 Screw, Cap HD, M5 x 12, S/S | Screw, Cap HD, M5 x 12, S/S PART NO LONGER AVAILABLE | 1 | $1.15 | Obsolete | View Details |
| 10 | A9910085 Screw, Self Thread | Screw, Self Thread PART NO LONGER AVAILABLE | 1 | $0.29 | Obsolete | View Details |
| 11 | A9930063 Harness, Switch, Fog Lights | Harness, Switch, Fog Lights | 1 | $11.76 | Obsolete | View Details |
| 12 | A9930056 Switch, Fog Lights | Switch, Fog Lights | 1 | $22.23 | Obsolete | View Details |
| 13 | A9930053 Subharness, Auxilliary Lights | Subharness, Auxilliary Lights | 1 | $35.64 | Available to order | 1 |
| 14 | A9930067 Housing, Switch | Housing, Switch PART NO LONGER AVAILABLE | 1 | $7.07 | Obsolete | View Details |
| 15 | A9930068 Housing, Switch, Rear | Housing, Switch, Rear PART NO LONGER AVAILABLE | 1 | $6.10 | Obsolete | View Details |
| 16 | A9930069 Blanking Plug, Switch 15/32" | Blanking Plug, Switch 15/32" PART NO LONGER AVAILABLE | 1 | $0.81 | Obsolete | View Details |
| 17 | A9930074 Blanking Plug, Wire Exit | Blanking Plug, Wire Exit PART NO LONGER AVAILABLE | 1 | $2.76 | Obsolete | View Details |
| 18 | T2046017 Clip, Cable, Black | Clip, Cable, Black | 2 | $6.06 | Available to order | 2 |
| 19 | T2508033 Relay, EFI | Relay, EFI | 1 | $38.93 | Available to order | 1 |
| 20 | T3050342 Screw, Cap/Hd, M5 x 16, Slv | Screw, Cap/Hd, M5 x 16, Slv | 1 | $3.04 | Available to order | 1 |
| 21 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 5 | $0.95 | Available to order | 5 |
| 22 | T3205062 Bolt, HHF, Lghtd, M6 x 12, Slv | Bolt, HHF, Lghtd, M6 x 12, Slv | 4 | $4.46 | Available to order | 4 |
| 23 | T3350088 Domenut, Locking, M6 | Domenut, Locking, M6 | 4 | $1.91 | Available to order | 4 |
| 24 | T3450035 Grommet, Dia 8, Dia 12.5, 3 | Grommet, Dia 8, Dia 12.5, 3 | 2 | $2.24 | Available to order | 2 |
| 25 | A9930084 Bulb, Spare, Fog Light Unit | Bulb, Spare, Fog Light Unit Not illustrated | 1 | $17.92 | Obsolete | View Details |
| 27 | A9750162 Bracket, Accessory Relays | Bracket, Accessory Relays Not illustrated | 1 | $15.29 | Obsolete | View Details |
