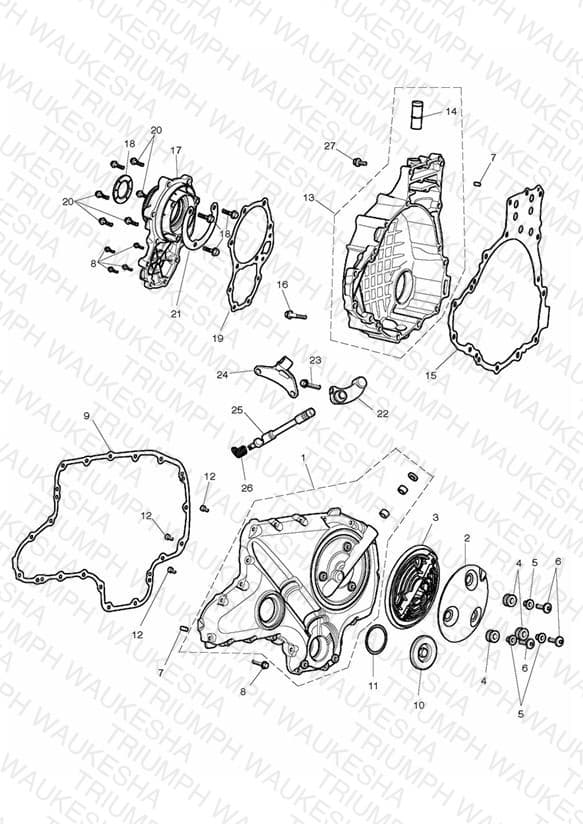

Engine Covers
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1260193 Clutch Cover, Assy, Black | Clutch Cover, Assy, Black | 1 | $371.69 | Out of Stock | Notify Me |
| 2 | T1260066 Cover, Outer, Clutch Cover | Cover, Outer, Clutch Cover > Eng No 554422 | 1 | $68.08 | Available to order | 1 |
| 2 | T1264455 Cover, Outer, Clutch Cover | Cover, Outer, Clutch Cover Eng No 554423 > | 1 | $68.08 | Available to order | 1 |
| 3 | T1260203 Gasket, Clutch Cover Outer | Gasket, Clutch Cover Outer | 1 | $14.76 | Available to order | 1 |
| 4 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 3 | $2.04 | Available to order | 3 |
| 5 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 3 | $6.15 | Available to order | 3 |
| 6 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 3 | $3.61 | Available to order | 3 |
| 7 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 7 | $1.21 | Available to order | 7 |
| 8 | T3203030 Bolt, RHHF, Domed, M6 x 30 | Bolt, RHHF, Domed, M6 x 30 > 449910 | 24 | $3.73 | Available to order | 24 |
| 8 | T3205070 Bolt, HHF, Lghtd, M6 x 30, Slv | Bolt, HHF, Lghtd, M6 x 30, Slv 449911 > | 24 | $2.53 | Available to order | 24 |
| 9 | T1260107 Gasket, Clutch Cover | Gasket, Clutch Cover | 1 | $15.59 | Available to order | 1 |
| 10 | T1261223 Plug, M45 x 1.25, Black | Plug, M45 x 1.25, Black | 1 | $33.47 | Available to order | 1 |
| 11 | T3600222 O ring | O ring | 1 | $11.97 | Available to order | 1 |
| 12 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw | 3 | $1.56 | Available to order | 3 |
| 13 | T1260232 Cover, Alternator Assy, Black | Cover, Alternator Assy, Black | 1 | $203.20 | Available to order | 1 |
| 14 | T1160268 Spigot, OD 14.0mm | Spigot, OD 14.0mm | 1 | $6.15 | Available to order | 1 |
| 15 | T1260119 Gasket, Alternator Cover | Gasket, Alternator Cover | 1 | $17.12 | Available to order | 1 |
| 16 | T3203065 Bolt, RHHF, Domed,S/Less, M6x65 | Bolt, RHHF, Domed,S/Less, M6x65 > 516713 | 6 | $4.01 | Available to order | 6 |
| 16 | T3203075 Bolt, RHHF, M6 x 75 S/Less | Bolt, RHHF, M6 x 75 S/Less 516714 > PART NO LONGER AVAILABLE | 6 | $4.35 | Obsolete | View Details |
| 17 | T1260442 Cover, Output Shaft, Black | Cover, Output Shaft, Black | 1 | $131.81 | Available to order | 1 |
| 18 | T3600068 Seal, Oil, 40 62 6, Clockwise | Seal, Oil, 40 62 6, Clockwise | 1 | $12.22 | Available to order | 1 |
| 19 | T1260184 Gasket, Output Shaft Cover | Gasket, Output Shaft Cover | 1 | $18.35 | Available to order | 1 |
| 20 | T3202319 Bolt, HHF, M8 x 35, Slv | Bolt, HHF, M8 x 35, Slv | 9 | $2.79 | Available to order | 9 |
| 21 | T1260222 Bearing Retainer Plate | Bearing Retainer Plate | 1 | $8.21 | Available to order | 1 |
| 22 | T1172039 Lifter Arm, Clutch | Lifter Arm, Clutch | 1 | $79.32 | Available to order | 1 |
| 23 | T3203025 Bolt, RHHF, Domed, M6 x 25, S/S | Bolt, RHHF, Domed, M6 x 25, S/S > Eng No 472435 | 1 | $2.24 | Available to order | 1 |
| 23 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv Eng No 472436 > | 1 | $2.61 | Available to order | 1 |
| 24 | T1172034 Bracket, Clutch Cable | Bracket, Clutch Cable | 1 | $7.38 | Available to order | 1 |
| 25 | T1170041 Lifter Shaft, Clutch | Lifter Shaft, Clutch | 1 | $73.72 | Available to order | 1 |
| 26 | T1170032 Return Spring | Return Spring | 1 | $3.04 | Available to order | 1 |
| 27 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv > Eng No 572659 | 8 | $2.63 | Available to order | 8 |
