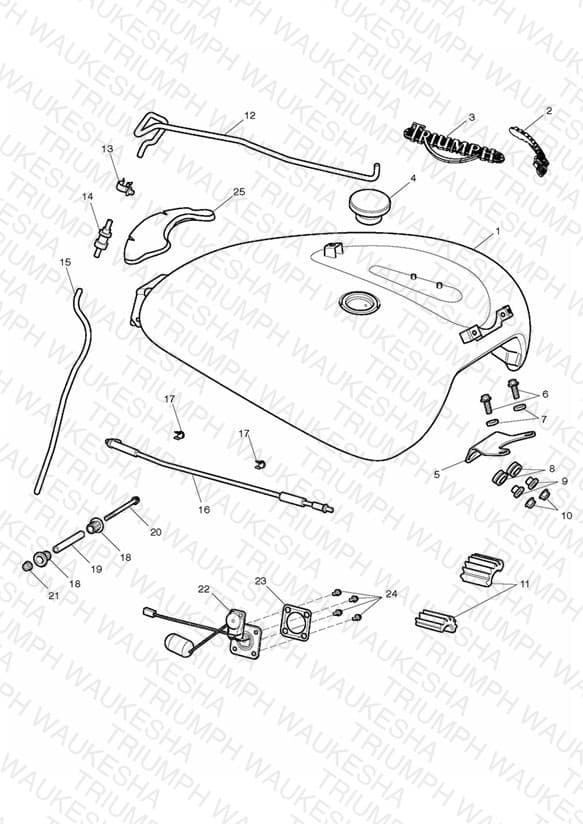

Fuel Tank & Fittings
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2400621-CP Fuel Tank Assembly | Fuel Tank Assembly Jet Blk/Sunset Red: > 411983; Special Edition > 561126; Includes badges, items 2 & 3 and foam pad, item 25 | 1 | $3690.61 | Available to order | 1 |
| 1 | T2400621-PG Fuel Tank Assembly | Fuel Tank Assembly Jet Black; Includes badges, items 2 & 3 and foam pad, item 25 | 1 | $2665.44 | Out of Stock | Notify Me |
| 1 | T2400621-JN Fuel Tank Assembly | Fuel Tank Assembly Eclipse/Azure Blue; Includes badges, items 2 & 3 and foam pad, item 25 | 1 | $3690.61 | Out of Stock | Notify Me |
| 1 | T2400621-NG Fuel Tank Assembly | Fuel Tank Assembly Jet Blk/New England White: > 411983; Special Edition > 561126; Includes badges, items 2 & 3 and foam pad, item 25 | 1 | $3690.61 | Backorder — Mid October 2026 | 1 |
| 1 | T2400621-PR Fuel Tank Assembly | Fuel Tank Assembly Phantom Black - ABS Version > 574820; Includes badges, items 2 & 3 and foam pad, item 25 | 1 | $2739.17 | Obsolete | View Details |
| 1 | T2400621-NW Fuel Tank Assembly | Fuel Tank Assembly Phantom Black/Crystal White - ABS Version > 550006; Includes badges, items 2 & 3 and foam pad, item 25 | 1 | $3690.61 | Out of Stock | Notify Me |
| 1 | T2400621-CX Fuel Tank Assembly | Fuel Tank Assembly Phantom Black/Cranberry Red - ABS Version; 550007 > 574820; Includes badges, items 2 & 3 and foam pad, item 25 | 1 | $3690.61 | Available to order | 1 |
| 1 | T2401185-PR Fuel Tank Assy | Fuel Tank Assy Phantom Black - ABS Version - 574821 > ; Includes badges, items 2 & 3 and foam pad, item 25 | 1 | $3075.50 | Available to order | 1 |
| 1 | T2401185-CX Fuel Tank Assy | Fuel Tank Assy Phantom Black/Cranberry Red - ABS Version - 574821 > ; Includes badges, items 2 & 3 and foam pad, item 25 | 1 | $3690.61 | Available to order | 1 |
| 2 | T2409030 Kit, Fuel Tank Badge | Kit, Fuel Tank Badge > 343445 (see Tech News 100) | 1 | $59.74 | Available to order | 1 |
| 2 | T2409010 Badge, Fuel Tank, LH | Badge, Fuel Tank, LH 343446 > 574820 | 1 | $59.74 | Available to order | 1 |
| 2 | T2409012 Badge, Fuel Tank, LH | Badge, Fuel Tank, LH 574821 > | 1 | $65.30 | Available to order | 1 |
| 3 | T2409020 Badge, Fuel Tank, RH | Badge, Fuel Tank, RH 343446 > 574820 | 1 | $59.74 | Available to order | 1 |
| 3 | T2409022 Badge, Fuel Tank, RH | Badge, Fuel Tank, RH 574821 > | 1 | $65.30 | Available to order | 1 |
| 4 | T2400597 Fuel Filler Cap, Screw Type | Fuel Filler Cap, Screw Type | 1 | $106.19 | Available to order | 1 |
| 5 | T2400567 Front Mount Pressing | Front Mount Pressing | 1 | $14.76 | Available to order | 1 |
| 6 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.79 | Available to order | 2 |
| 7 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.14 | Available to order | 2 |
| 8 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $2.04 | Available to order | 2 |
| 9 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $6.15 | Available to order | 2 |
| 10 | T3350305 Locknut, Flgd, M6 x 1.0, Slv | Locknut, Flgd, M6 x 1.0, Slv | 2 | $2.04 | Available to order | 2 |
| 11 | T2400478 Rubber, Tank Support | Rubber, Tank Support | 2 | $20.00 | Available to order | 2 |
| 12 | T2400780 Formed Hose | Formed Hose | 1 | $14.85 | Available to order | 1 |
| 13 | T3700072 Cable Clip, Dia 15-16mm BK | Cable Clip, Dia 15-16mm BK | 1 | $4.38 | Available to order | 1 |
| 14 | T2400074 Roll Over Valve | Roll Over Valve | 1 | $40.29 | Available to order | 1 |
| 15 | T2400778 Hose, Twin Wall, Swaged | Hose, Twin Wall, Swaged | 1 | $10.84 | Out of Stock | Notify Me |
| 16 | T2402901 Support, Fuel Tank | Support, Fuel Tank | 1 | $16.54 | Available to order | 1 |
| 17 | T3700062 Fir Tree Clip | Fir Tree Clip | 2 | $3.14 | Backorder — Early October 2026 | 2 |
| 18 | T2400446 Rubber Bush | Rubber Bush | 2 | $3.45 | Out of Stock | Notify Me |
| 19 | T2400449 Sleeve,OD 8.0X91 | Sleeve,OD 8.0X91 | 1 | $6.81 | Available to order | 1 |
| 20 | T3205079 Bolt, HHF, Lghtd, M6 x 105, Slv | Bolt, HHF, Lghtd, M6 x 105, Slv | 1 | $3.73 | Available to order | 1 |
| 21 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.71 | Available to order | 1 |
| 22 | T1241194 Level Sender | Level Sender | 1 | $168.43 | Available to order | 1 |
| 23 | T2401225 Seal, Fuel Level Sender, E25 | Seal, Fuel Level Sender, E25 | 1 | $11.02 | Available to order | 1 |
| 24 | T3330892 Bolt, RHHF, M5 x 15, S5041 | Bolt, RHHF, M5 x 15, S5041 | 4 | $1.21 | Backorder — Early October 2026 | 4 |
| 25 | T2401640 Foam Pad, Fuel Tank | Foam Pad, Fuel Tank | 1 | $25.01 | Available to order | 1 |
