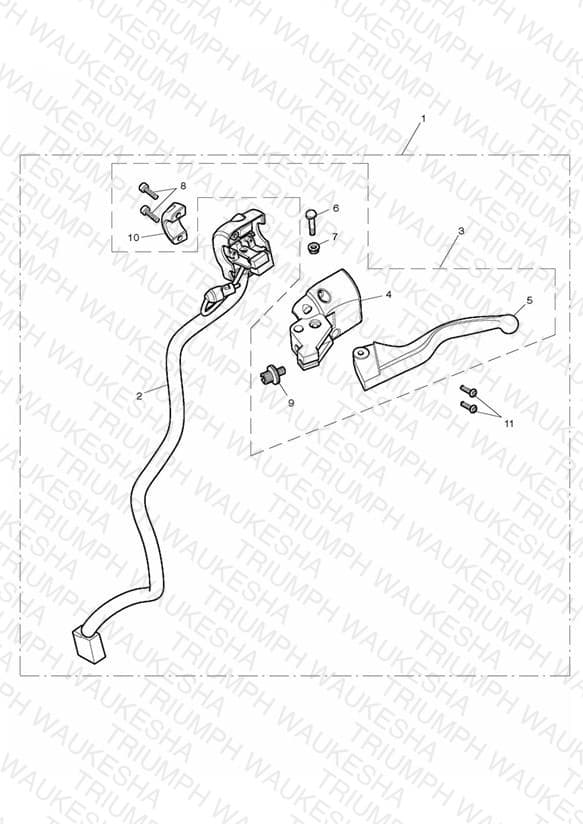

Clutch Controls
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2046758 Clutch Lever Assy | Clutch Lever Assy | 1 | $397.93 | Available to order | 1 |
| 2 | T2046759 Switch Set, LH | Switch Set, LH | 1 | $199.57 | Available to order | 1 |
| 3 | T2043040 Assembly, Clutch Lever | Assembly, Clutch Lever | 1 | $111.55 | Available to order | 1 |
| 4 | T2040819 Clutch Lever Housing | Clutch Lever Housing | 1 | $49.41 | Available to order | 1 |
| 5 | T2046444 Clutch Lever, Thick | Clutch Lever, Thick | 1 | $61.32 | Available to order | 1 |
| 6 | T2046524 Pivot Bolt | Pivot Bolt | 1 | $2.63 | Available to order | 1 |
| 7 | T2046521 Nut, Pivot Bolt | Nut, Pivot Bolt | 1 | $1.21 | Available to order | 1 |
| 8 | T2046004 Screw, M6 x 20 | Screw, M6 x 20 | 2 | $3.77 | Available to order | 2 |
| 9 | T2046520 Adjuster Screw | Adjuster Screw | 1 | $8.53 | Available to order | 1 |
| 10 | T2026004 Clamp, Handlebar | Clamp, Handlebar | 1 | $17.49 | Available to order | 1 |
| 11 | T2046008 Screw, Phil Pan HD, M5 x 20, AD | Screw, Phil Pan HD, M5 x 20, AD | 2 | $2.00 | Available to order | 2 |
