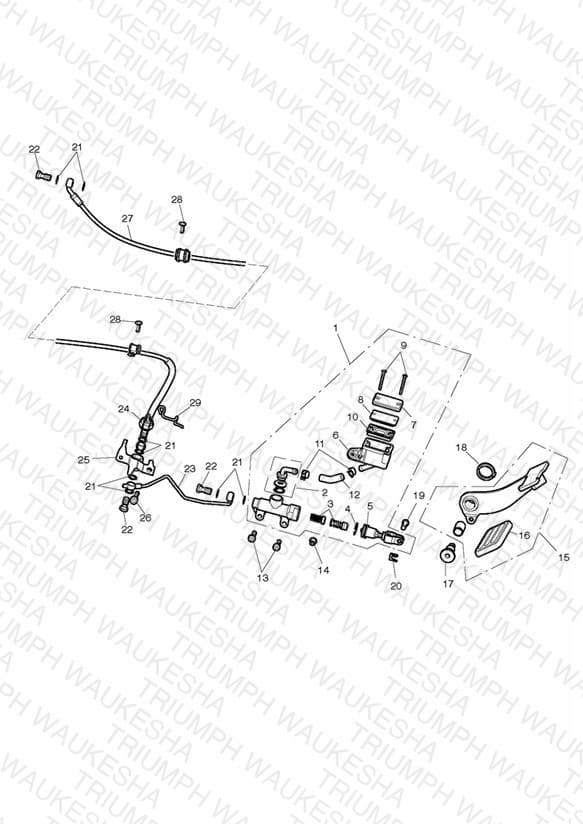

Rear Brake Master Cylinder, Reservoir & Pedal
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2021990 Master Cylinder Assy, Rear | Master Cylinder Assy, Rear | 1 | $271.12 | Available to order | 1 |
| 2 | T2025402 Connector Set | Connector Set | 1 | $25.96 | Available to order | 1 |
| 3 | T2020031 Piston Set | Piston Set | 1 | $62.71 | Available to order | 1 |
| 4 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 5 | T2020489 Rod Assy | Rod Assy | 1 | $42.41 | Available to order | 1 |
| 6 | T2022115 Reservoir Body, Rear M/Cyl | Reservoir Body, Rear M/Cyl | 1 | $108.34 | Backorder — Early August 2026 | 1 |
| 7 | T2022116 Reservoir Cap, Rear M/Cyl | Reservoir Cap, Rear M/Cyl | 1 | $39.18 | Available to order | 1 |
| 8 | T2022117 Reservoir Seal, Rear M/Cyl | Reservoir Seal, Rear M/Cyl | 1 | $18.34 | Available to order | 1 |
| 9 | T2022118 Reservoir Screw, Rear M/Cyl | Reservoir Screw, Rear M/Cyl | 2 | $1.79 | Available to order | 2 |
| 10 | T2022119 Reservoir Insert, Rear M/Cyl | Reservoir Insert, Rear M/Cyl | 1 | $5.98 | Available to order | 1 |
| 11 | T2023188 Reservoir Hose Clip | Reservoir Hose Clip | 2 | $3.50 | Available to order | 2 |
| 12 | T2022125 Hose, Reservoir, Rear M/Cyl | Hose, Reservoir, Rear M/Cyl | 1 | $33.82 | Out of Stock | Notify Me |
| 13 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv > 448276 | 2 | $7.42 | Available to order | 2 |
| 14 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc > 476287 | 1 | $1.13 | Available to order | 1 |
| 14 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 476288 > | 1 | $0.67 | Available to order | 1 |
| 15 | T2023452 Brake Pedal Assembly | Brake Pedal Assembly | 1 | $184.39 | Available to order | 1 |
| 16 | T2023455 Rubber, Brake pedal | Rubber, Brake pedal | 1 | $38.68 | Available to order | 1 |
| 17 | T3331650 Bolt, Shld, M10 | Bolt, Shld, M10 | 1 | $11.56 | Available to order | 1 |
| 18 | T2025506 Spring, Brake Pedal Return | Spring, Brake Pedal Return | 1 | $7.52 | Available to order | 1 |
| 19 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.30 | Available to order | 1 |
| 20 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin Not ABS Version | 1 | $6.07 | Available to order | 1 |
| 21 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated Not ABS Version | 8 | $1.07 | Available to order | 8 |
| 22 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 Not ABS Version | 3 | $7.02 | Available to order | 3 |
| 23 | T2023138 Brake Line Assy, Hard | Brake Line Assy, Hard Not ABS Version | 1 | $81.75 | Available to order | 1 |
| 24 | T2023120 Switch, Rear Brake | Switch, Rear Brake Not ABS Version | 1 | $41.44 | Available to order | 1 |
| 25 | T2023139 Adaptor, Inline, Brake Switch | Adaptor, Inline, Brake Switch Not ABS Version | 1 | $16.82 | Obsolete | View Details |
| 26 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv Not ABS Version | 1 | $4.74 | Available to order | 1 |
| 27 | T2023143 Brake Line Assy, Flexi | Brake Line Assy, Flexi Not ABS Version | 1 | $87.47 | Available to order | 1 |
| 28 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv Not ABS Version | 2 | $2.63 | Available to order | 2 |
| 29 | T2020269 Guide, Brake Hose | Guide, Brake Hose | 1 | $7.14 | Backorder — Late August 2026 | 1 |
