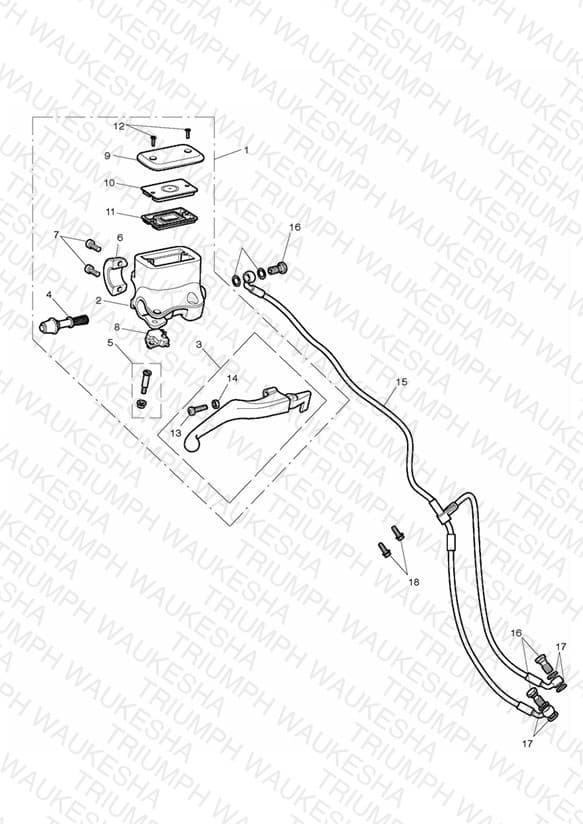

Front Brake Master Cylinder & Hoses
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2028025 Master Cylinder Assy, Front | Master Cylinder Assy, Front | 1 | $417.04 | Available to order | 1 |
| 2 | T2028001 Master Cylinder, Housing | Master Cylinder, Housing | 1 | $371.69 | Out of Stock | Notify Me |
| 3 | T2020444 Brake Lever, Thick | Brake Lever, Thick | 1 | $64.28 | Backorder — Early November 2026 | 1 |
| 4 | T2020294 Piston Set, M.Cyl 15.875 | Piston Set, M.Cyl 15.875 | 1 | $51.31 | Available to order | 1 |
| 5 | T2020297 Lever Bolt, Front M/Cyl | Lever Bolt, Front M/Cyl | 1 | $12.24 | Obsolete | View Details |
| 6 | T2026004 Clamp, Handlebar | Clamp, Handlebar | 1 | $18.13 | Available to order | 1 |
| 7 | T2026013 Screw, M6 x 20 | Screw, M6 x 20 | 2 | $3.04 | Available to order | 2 |
| 8 | T2021217 Switch Set | Switch Set | 1 | $25.33 | Available to order | 1 |
| 9 | T2028002 Cap Set, Reservoir | Cap Set, Reservoir | 1 | $39.63 | Out of Stock | Notify Me |
| 10 | T2028006 Plate, Diaphragm | Plate, Diaphragm | 1 | $10.72 | Available to order | 1 |
| 11 | T2020164 Diaphragm, Reservoir | Diaphragm, Reservoir | 1 | $11.84 | Available to order | 1 |
| 12 | T2020304 Screw, Cover, M/Cyl, M4 | Screw, Cover, M/Cyl, M4 | 2 | $2.04 | Available to order | 2 |
| 13 | T2020443 Bolt, Brake Lever Adjuster | Bolt, Brake Lever Adjuster | 1 | $5.47 | Available to order | 1 |
| 14 | T2020442 Nut, Brake Lever Adjuster | Nut, Brake Lever Adjuster | 1 | $1.61 | Available to order | 1 |
| 15 | T2026158 Brake Hose, Front | Brake Hose, Front Not ABS Version | 1 | $111.68 | Available to order | 1 |
| 16 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 Not ABS Version | 3 | $7.48 | Available to order | 3 |
| 17 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated Not ABS Version | 6 | $1.14 | Available to order | 6 |
| 18 | T3202118 Bolt, RHHF, M8 x 1.25 x 45, Slv | Bolt, RHHF, M8 x 1.25 x 45, Slv Not ABS Version | 2 | $1.73 | Available to order | 2 |
