Scrambler 1200 Extreme

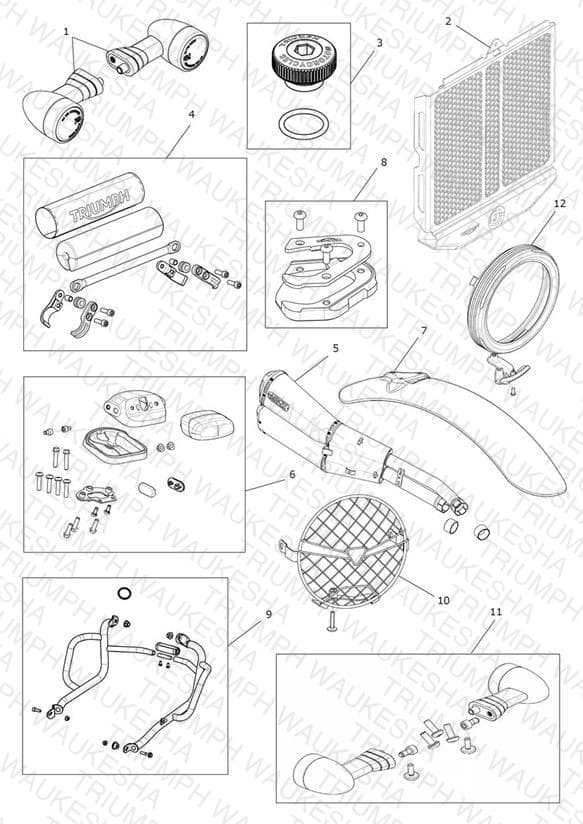

Schematic
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9838023 LED Front Indicator Kit - Short Stem | LED Front Indicator Kit - Short Stem | 1 | $187.20 | Out of Stock | Notify Me |
| 2 | A9610169 Radiator Guard, Aluminium | Radiator Guard, Aluminium | 1 | $166.40 | Available to order | 1 |
| 3 | A9610241 Oil Filler Cap, Machined, Clr | Oil Filler Cap, Machined, Clr | 1 | $29.16 | Available to order | 1 |
| 4 | A9638147 Handlebar Brace, Black | Handlebar Brace, Black | 1 | $114.40 | Obsolete | View Details |
| 5 | A9680044 Silencer, Homologated | Silencer, Homologated | 1 | $921.85 | Obsolete | View Details |
| 6 | A9700145 Indicator Relocation Kit, EU | Indicator Relocation Kit, EU | 1 | $140.40 | Backorder — Early February 2027 | 1 |
| 7 | A9701423 Front Mudguard, High | Front Mudguard, High | 1 | $288.40 | Available to order | 1 |
| 8 | A9770180 Base Extension, Side Stand | Base Extension, Side Stand | 1 | $124.80 | Available to order | 1 |
| 9 | A9780119 Dresser Bar Kit, S/S | Dresser Bar Kit, S/S | 1 | $350.20 | Backorder — Late November 2026 | 1 |
| 10 | A9838068 Grille, Headlight, Kit | Grille, Headlight, Kit | 1 | $119.60 | Available to order | 1 |
| 11 | A9838083 LED Indicator Kit, D40, 120 Lead | LED Indicator Kit, D40, 120 Lead | 1 | $187.20 | Available to order | 1 |
| 12 | A9838200 Headlight Bezel, M/CD, Kit | Headlight Bezel, M/CD, Kit | 1 | $176.80 | Available to order | 1 |
