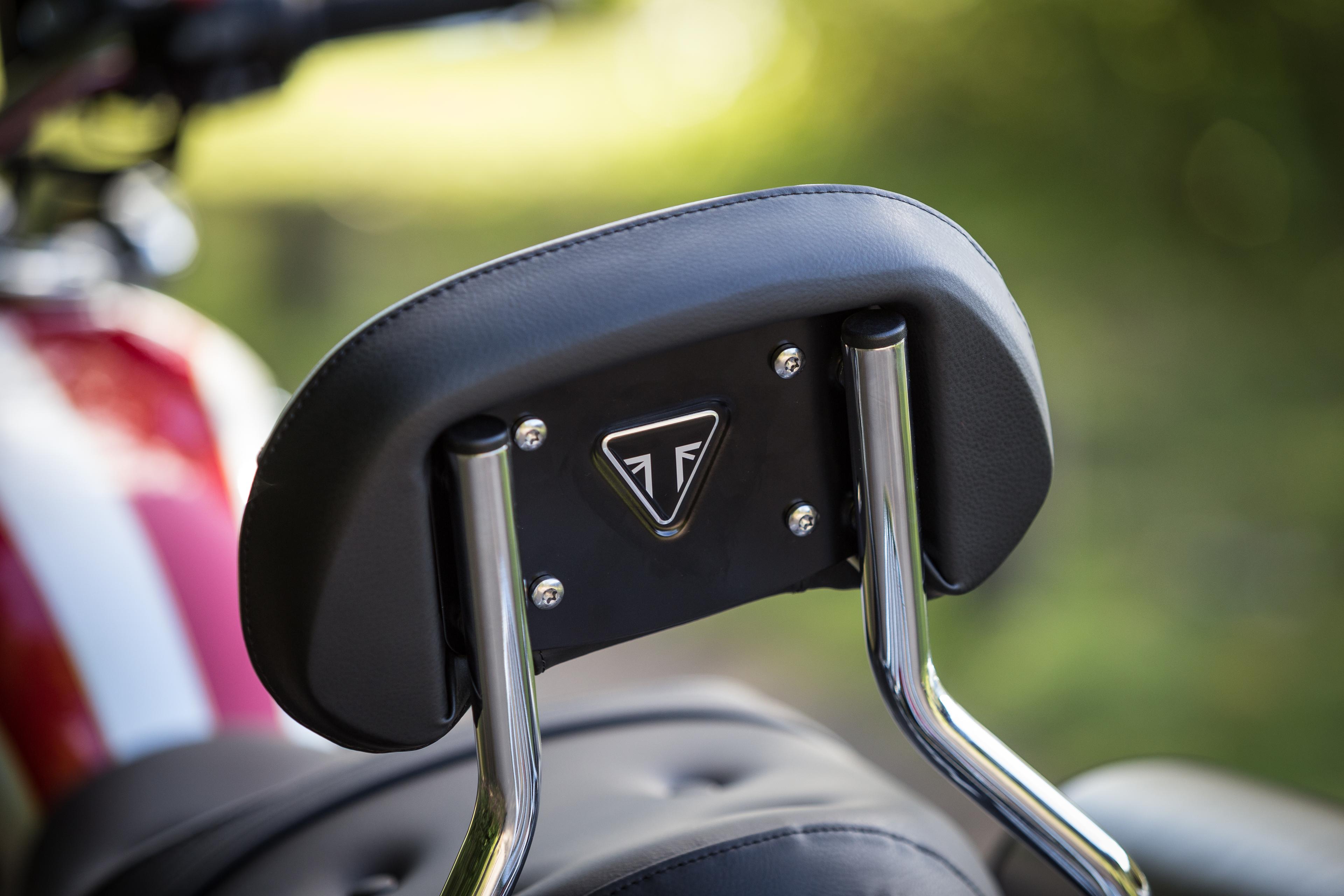

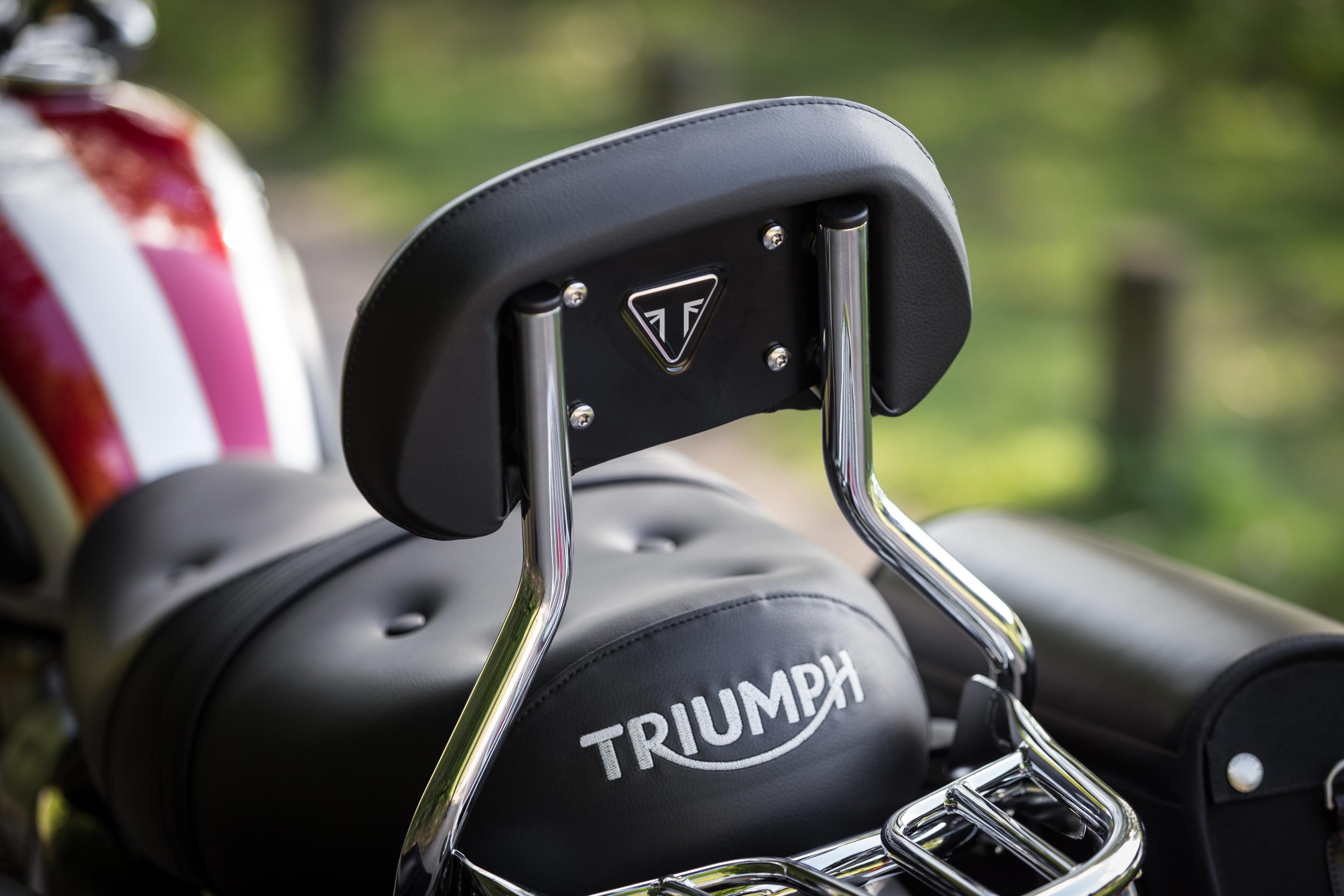

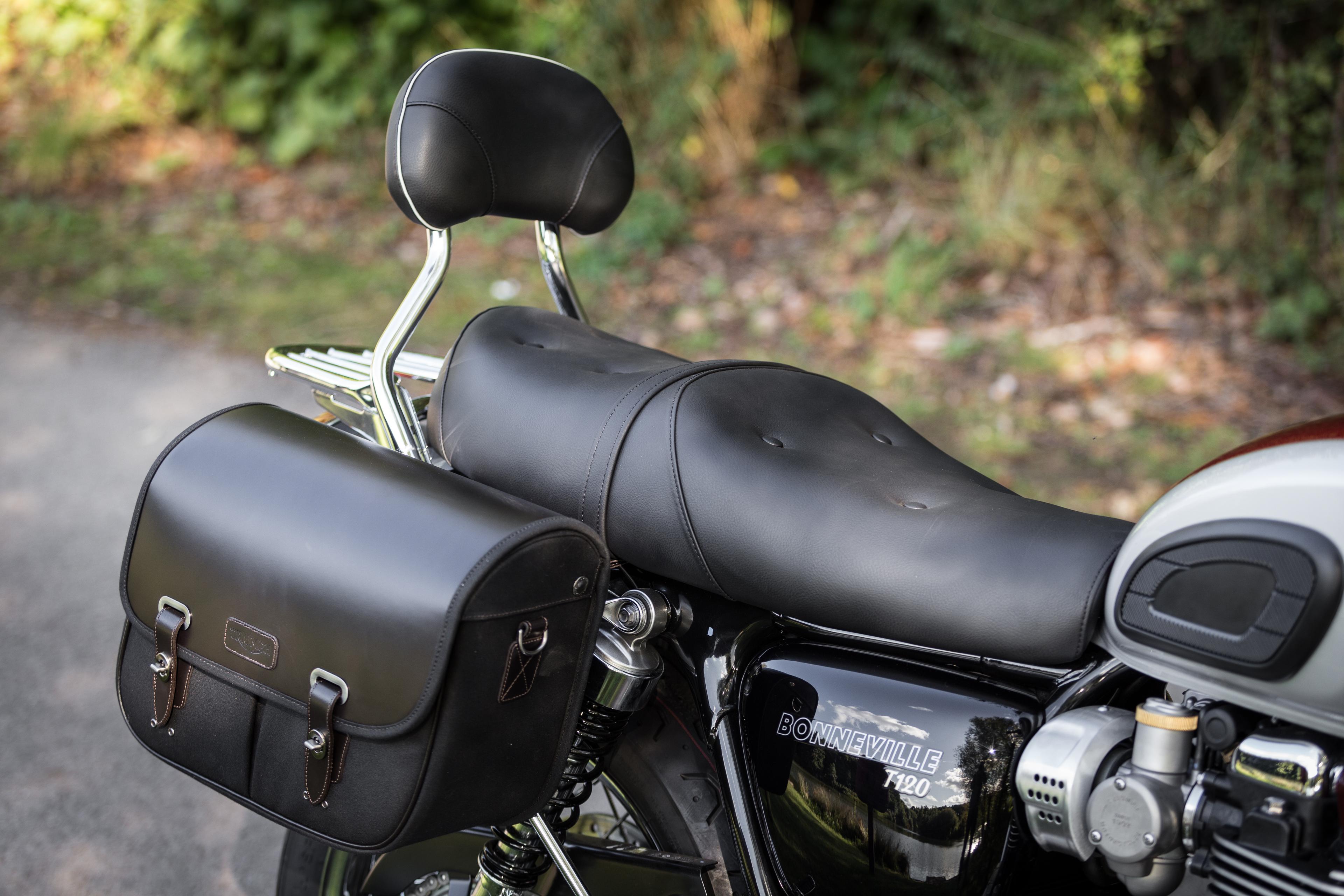

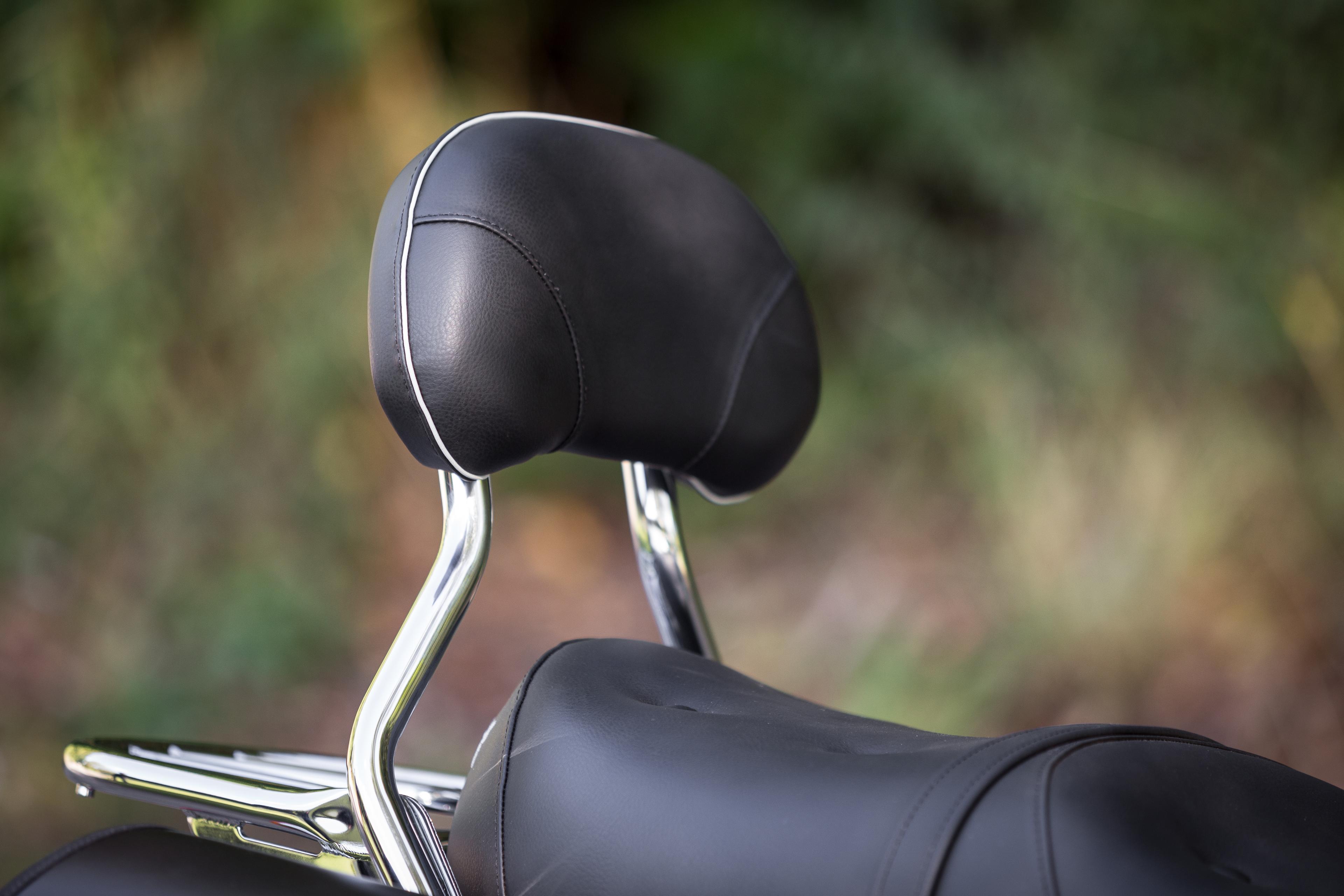

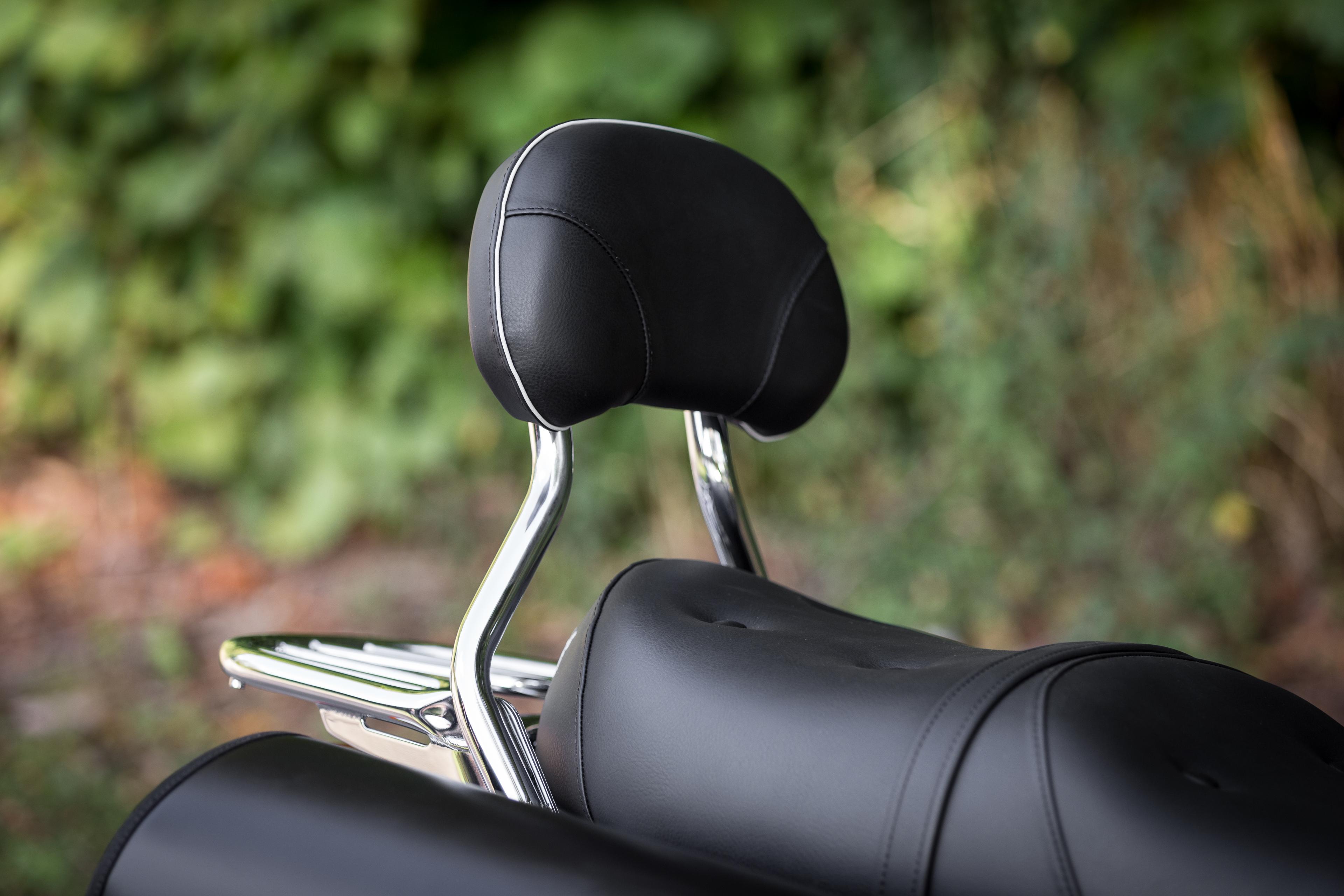

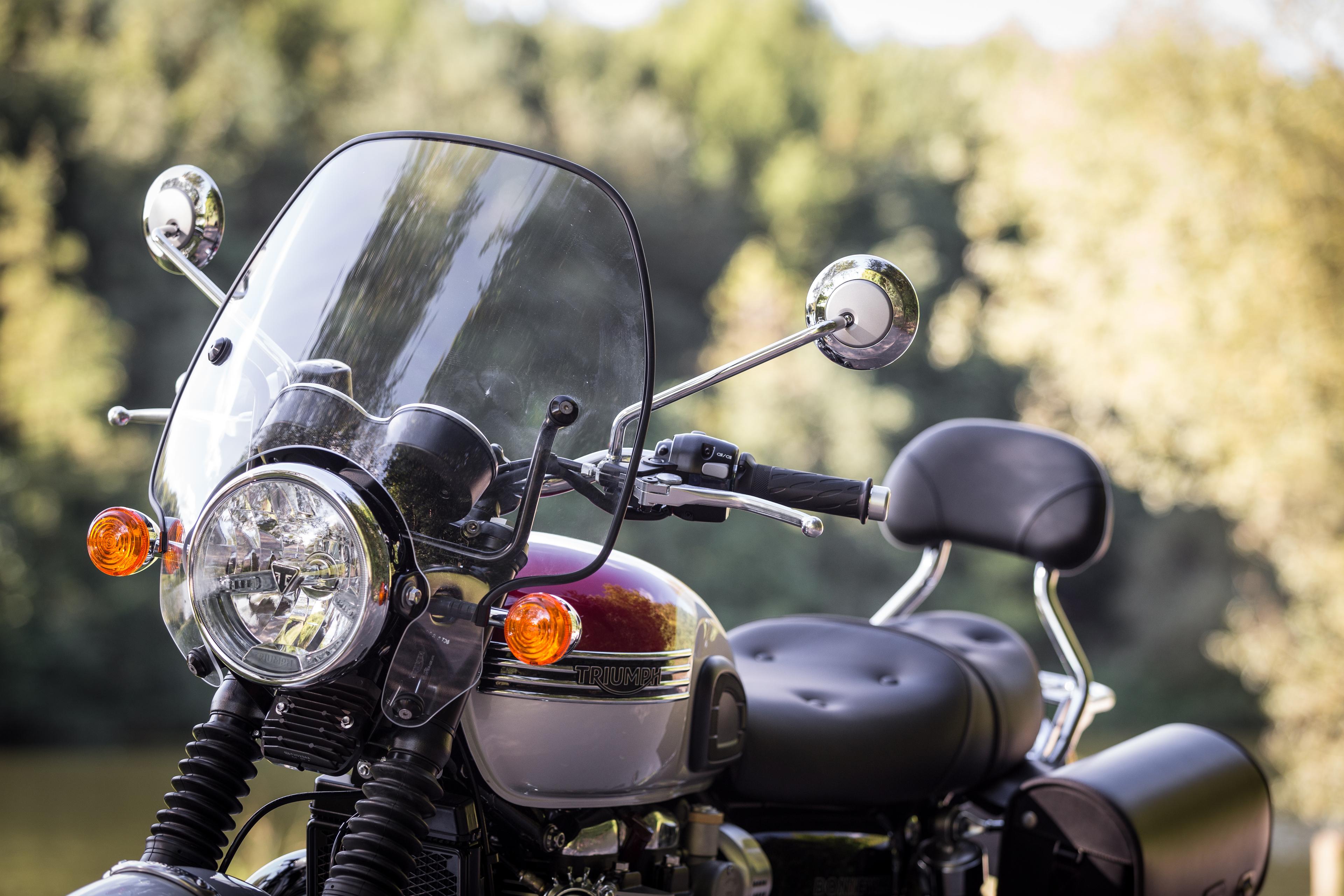

Uprights Kit, Backrest, Chrome
Schematic
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9758183 Passenger Backrest Uprights - Chrome | Passenger Backrest Uprights - Chrome Replaced by A9759193. Requires mount kit A9758182 or A9758299 if OE mount kit is not fitted | 1 | $265.00 | Unavailable | 1 |
| 1 | A9759193 Uprights Kit, Backrest, Chrome | Uprights Kit, Backrest, Chrome | 1 | $275.40 | Available to order | 1 |
| 2 | T2308911 Backrest, Upright, RH, Chrome | Backrest, Upright, RH, Chrome | 1 | $124.00 | Obsolete | View Details |
| 3 | T2308912 Backrest, Upright, LH, Chrome | Backrest, Upright, LH, Chrome | 1 | $125.00 | Obsolete | View Details |
| 4 | T2308913 Plate, Backrest | Plate, Backrest | 1 | $15.70 | Obsolete | View Details |
| 5 | T3951060 Badge, Flat, Type 1 | Badge, Flat, Type 1 | 1 | $13.33 | Available to order | 1 |
| 6 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 8 | $3.50 | Available to order | 8 |
| 7 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 4 | $0.97 | Available to order | 4 |
| 9 | A9930007 Cleaning Swab | Cleaning Swab | 1 | $1.62 | Available to order | 1 |
