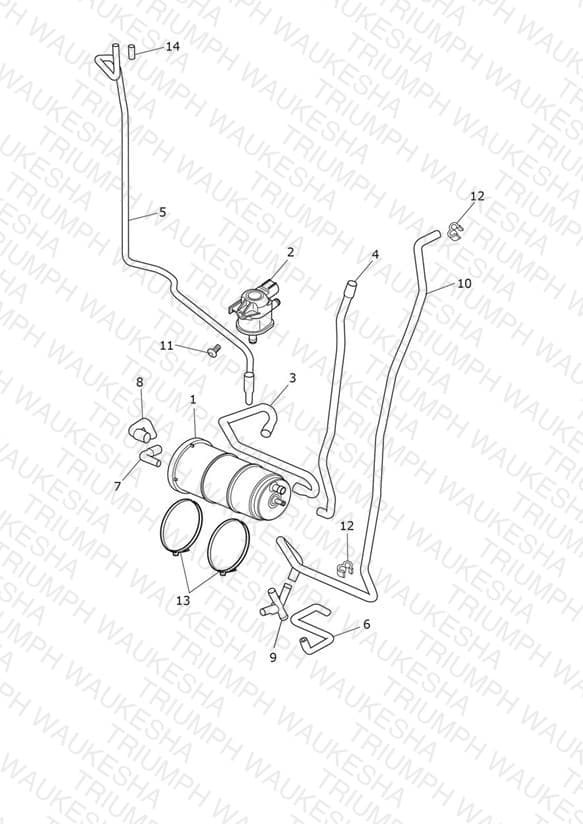

Evap System - All Mkts Expt AU, ID & NZ
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2409017 Carbon Cannister, 137mm Length | Carbon Cannister, 137mm Length | 1 | $112.13 | Available to order | 1 |
| 2 | T1248990 Purge Valve | Purge Valve | 1 | $66.52 | Available to order | 1 |
| 3 | T1244029 Hose, Cannister to Purge Valve | Hose, Cannister to Purge Valve | 1 | $22.41 | Out of Stock | Notify Me |
| 4 | T1241676 Hose, Can to Roll Over Valve | Hose, Can to Roll Over Valve | 1 | $18.38 | Available to order | 1 |
| 5 | T2406800 Hose, Solenoid to Throttle Body | Hose, Solenoid to Throttle Body | 1 | $10.89 | Out of Stock | Notify Me |
| 6 | T2403948 Hose, Evap Drain Lower | Hose, Evap Drain Lower | 1 | $14.61 | Out of Stock | Notify Me |
| 7 | T2403947 Hose, Evap Drain Upper | Hose, Evap Drain Upper | 1 | $14.61 | Out of Stock | Notify Me |
| 8 | T2403946 Hose, Evap, Air | Hose, Evap, Air | 1 | $9.74 | Out of Stock | Notify Me |
| 9 | T2403945 Connector Hose, 4-Way | Connector Hose, 4-Way | 1 | $6.82 | Out of Stock | Notify Me |
| 10 | T2403949 Hose, Evap, Breather | Hose, Evap, Breather | 1 | $34.48 | Out of Stock | Notify Me |
| 11 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 1 | $3.90 | Available to order | 1 |
| 12 | T3700409 Twin Clip | Twin Clip | 2 | $0.98 | Out of Stock | Notify Me |
| 13 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 2 | $0.95 | Available to order | 2 |
| 14 | T1245009 Cap, Vacuum Connection | Cap, Vacuum Connection | 1 | $4.74 | Available to order | 1 |
