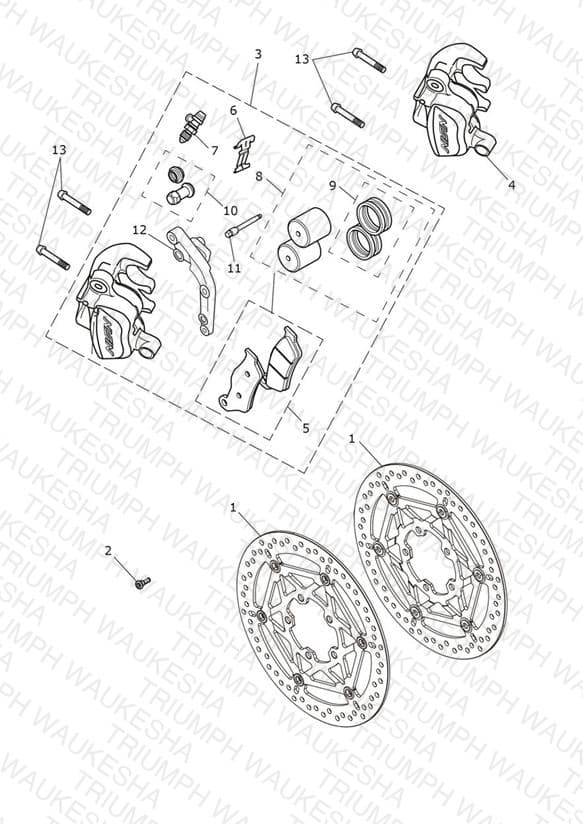

Front Brake Caliper & Disc
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2022443 Brake Disc, Front, 310 | Brake Disc, Front, 310 | 2 | $250.19 | Available to order | 2 |
| 2 | T2024801 Bolt, Disc, M8 x 30, Slv, Enc | Bolt, Disc, M8 x 30, Slv, Enc | 10 | $1.90 | Available to order | 10 |
| 3 | T2022727 Caliper Assembly, RH | Caliper Assembly, RH | 1 | $942.42 | Out of Stock | Notify Me |
| 4 | T2022728 Caliper Assembly, LH | Caliper Assembly, LH | 1 | $942.42 | Out of Stock | Notify Me |
| 5 | T2022729 Pad Set | Pad Set 2 pads per set | 2 | $55.84 | Available to order | 2 |
| 6 | T2020086 Pad, Spring, D Spec | Pad, Spring, D Spec | 2 | $10.34 | Available to order | 2 |
| 7 | T2020014 Bleed Screw | Bleed Screw | 2 | $15.27 | Available to order | 2 |
| 8 | T2020356 Piston Set | Piston Set | 2 | $114.08 | Available to order | 2 |
| 9 | T2020505 Seal Kit, 2 Piston Caliper | Seal Kit, 2 Piston Caliper | 2 | $57.03 | Available to order | 2 |
| 10 | T2021707 Set, Sliding Seals | Set, Sliding Seals | 2 | $44.27 | Available to order | 2 |
| 11 | T2021151 Pin Set, Hanger | Pin Set, Hanger | 2 | $9.28 | Available to order | 2 |
| 12 | T2022752 Bracket, Comp, RH | Bracket, Comp, RH | 1 | $76.10 | Backorder — Late August 2026 | 1 |
| 12 | T2022753 Bracket, Comp, LH | Bracket, Comp, LH | 1 | $76.10 | Backorder — Late August 2026 | 1 |
| 13 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 4 | $1.21 | Available to order | 4 |
