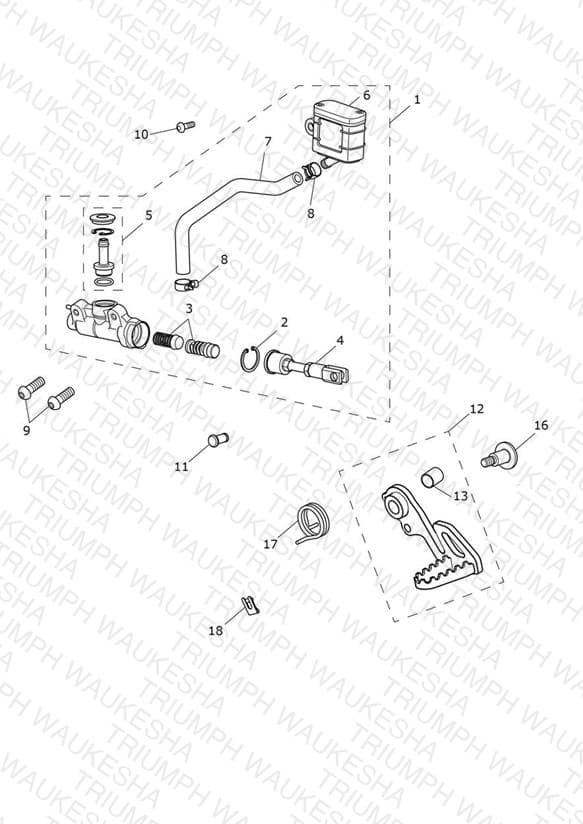

Rear Brake Master Cylinder, Reservoir & Pedal
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2021519 Master Cylinder Assy, Rear | Master Cylinder Assy, Rear | 1 | $270.97 | Available to order | 1 |
| 2 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 3 | T2020031 Piston Set | Piston Set | 1 | $62.71 | Available to order | 1 |
| 4 | T2023223 Push Rod Assy, M/Cyl | Push Rod Assy, M/Cyl | 1 | $39.85 | Available to order | 1 |
| 5 | T2023197 Connector Set | Connector Set | 1 | $22.92 | Out of Stock | Notify Me |
| 6 | T2024080 M/Cyl Reservoir Assy | M/Cyl Reservoir Assy | 1 | $46.52 | Available to order | 1 |
| 7 | T2021526 Hose, Reservoir, MCyl, Rear | Hose, Reservoir, MCyl, Rear | 1 | $41.16 | Out of Stock | Notify Me |
| 8 | T2023188 Reservoir Hose Clip | Reservoir Hose Clip | 2 | $3.50 | Available to order | 2 |
| 9 | T3335012 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 2 | $8.33 | Available to order | 2 |
| 10 | T3330648 Screw, Pan/Hd, Tx, M5 x 20, Slv | Screw, Pan/Hd, Tx, M5 x 20, Slv | 1 | $2.63 | Available to order | 1 |
| 11 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.30 | Available to order | 1 |
| 12 | T2029731 Brake Pedal | Brake Pedal | 1 | $161.71 | Available to order | 1 |
| 13 | T3750020 Bush, PAP, 1215 P14 | Bush, PAP, 1215 P14 | 1 | $7.30 | Available to order | 1 |
| 16 | T3331520 Bolt, Shld, M8 x 1.25, Slv, Enc | Bolt, Shld, M8 x 1.25, Slv, Enc | 1 | $10.63 | Available to order | 1 |
| 17 | T2023102 Spring, Brake Pedal Return | Spring, Brake Pedal Return | 1 | $7.52 | Available to order | 1 |
| 18 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.07 | Available to order | 1 |
