Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics

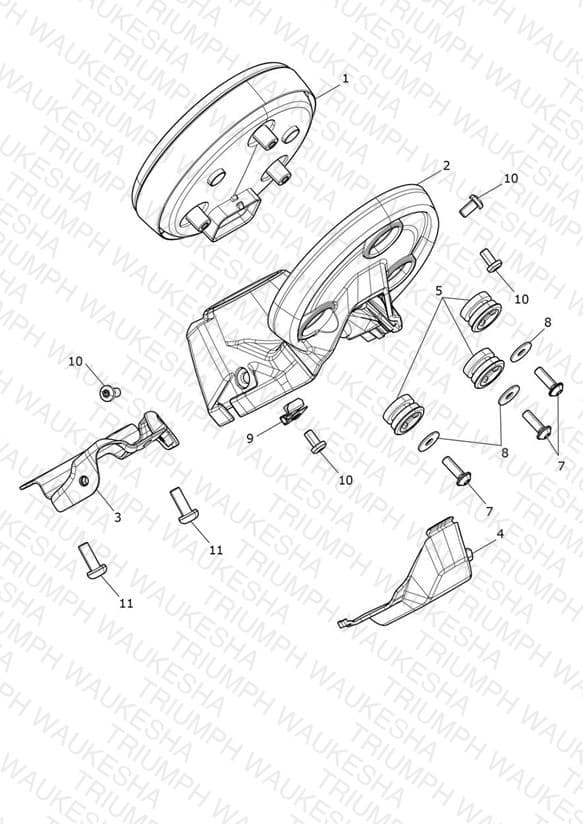

Loading schematic...
Instruments
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2507751 Instrument Pack, MPH, UK | Instrument Pack, MPH, UK | 1 | $968.84 | Backorder — Late August 2026 | 1 |
| 1 | T2507752 Instrument Pack, MPH, US | Instrument Pack, MPH, US | 1 | $968.84 | Available to order | 1 |
| 1 | T2507753 Instrument Pack, KMH, EU | Instrument Pack, KMH, EU | 1 | $968.84 | Out of Stock | Notify Me |
| 1 | T2507754 Instrument Pack, KMH, JP | Instrument Pack, KMH, JP | 1 | $968.84 | Out of Stock | Notify Me |
| 1 | T2507755 Instrument Pack, KMH, CA/CN | Instrument Pack, KMH, CA/CN | 1 | $968.84 | Backorder — Late August 2026 | 1 |
| 2 | T2043272 Instrument Mount | Instrument Mount | 1 | $38.99 | Available to order | 1 |
| 3 | T2503650 Instrument Mount Bracket | Instrument Mount Bracket | 1 | $10.71 | Available to order | 1 |
| 4 | T2503924 Cover, Instrument, Connector Mldg | Cover, Instrument, Connector Mldg | 1 | $7.80 | Available to order | 1 |
| 5 | T3020123 Grommet, Instruments | Grommet, Instruments | 3 | $6.94 | Out of Stock | Notify Me |
| 7 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 3 | $1.51 | Available to order | 3 |
| 8 | T3551178 Washer, M5 x 15 x 1.6 | Washer, M5 x 15 x 1.6 | 3 | $0.97 | Available to order | 3 |
| 9 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $3.39 | Available to order | 1 |
| 10 | T3330356 Screw, M5 x 10, S/S, Enc | Screw, M5 x 10, S/S, Enc | 4 | $6.07 | Available to order | 4 |
| 11 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
