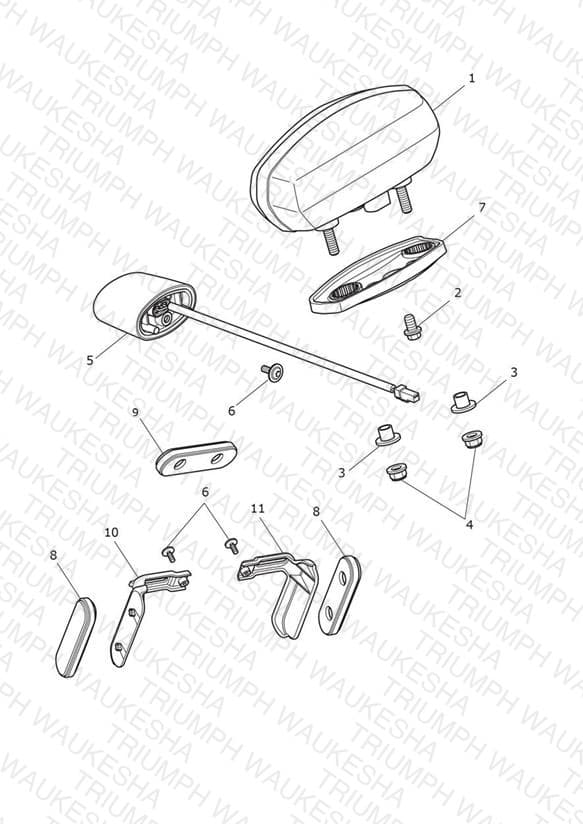

Rear Light & Reflectors - US Only
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2702524 Rear Light Assembly | Rear Light Assembly | 1 | $440.38 | Available to order | 1 |
| 2 | T3205061 Bolt, HHF, Lghtd, M6 X 10, Slv | Bolt, HHF, Lghtd, M6 X 10, Slv | 1 | $6.73 | Available to order | 1 |
| 3 | T3013344 Flange Sleeve, 6.4 x 8.8.x.7.5 | Flange Sleeve, 6.4 x 8.8.x.7.5 | 2 | $6.94 | Available to order | 2 |
| 4 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 5 | T2708036 Light, LED, Registration Plate | Light, LED, Registration Plate | 1 | $42.23 | Out of Stock | Notify Me |
| 6 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 3 | $0.75 | Available to order | 3 |
| 7 | T2709876 Plinth, Rear Light, Rubber | Plinth, Rear Light, Rubber | 1 | $7.22 | Available to order | 1 |
| 8 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 3 | $6.14 | Available to order | 3 |
| 10 | T2702025 Bracket, Side Reflector, RH | Bracket, Side Reflector, RH | 1 | $30.70 | Available to order | 1 |
| 11 | T2702026 Bracket, Side Reflector, LH | Bracket, Side Reflector, LH | 1 | $30.70 | Available to order | 1 |
