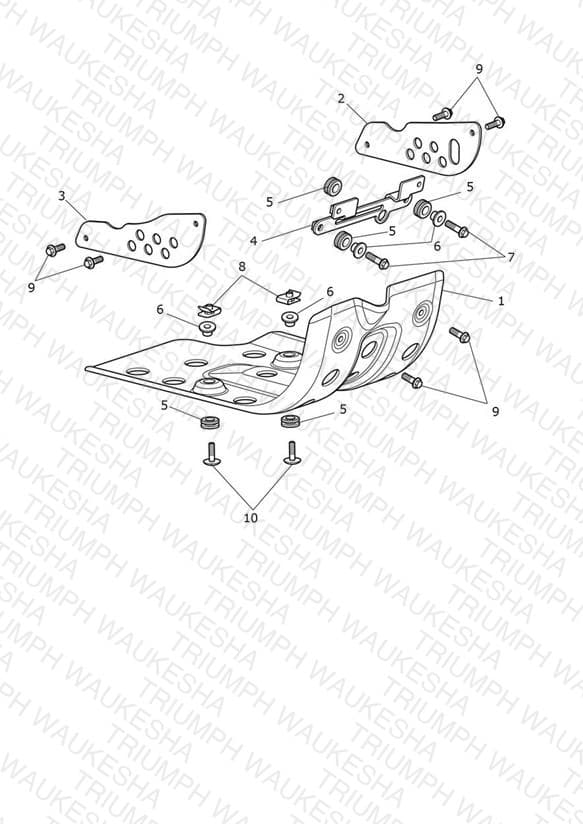

Sumpguard
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2308376 Bash Plate | Bash Plate | 1 | $214.49 | Available to order | 1 |
| 2 | T2305534 Infill, Bash Plate, LH | Infill, Bash Plate, LH | 1 | $68.25 | Available to order | 1 |
| 3 | T2305533 Infill, Bash Plate, RH | Infill, Bash Plate, RH | 1 | $68.25 | Available to order | 1 |
| 4 | T2307885 Bracket, Bash Plate | Bracket, Bash Plate | 1 | $19.44 | Available to order | 1 |
| 5 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 5 | $1.91 | Available to order | 5 |
| 6 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 7 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 8 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $4.92 | Backorder — Early August 2026 | 2 |
| 9 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 6 | $5.88 | Available to order | 6 |
| 10 | T3330738 Screw, But/Hd, M6 x 25, Enc | Screw, But/Hd, M6 x 25, Enc | 2 | $1.72 | Available to order | 2 |
