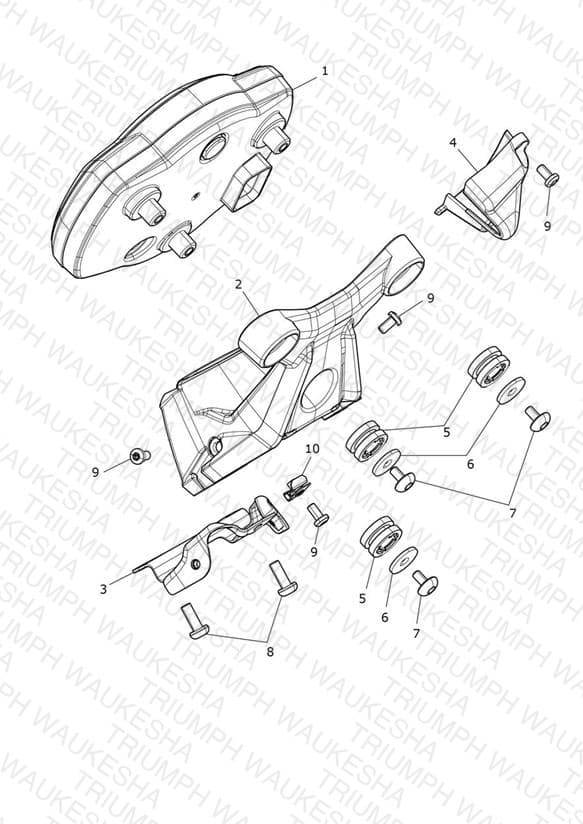

Instruments
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2505238 Instruments, Gen2, MPH, UK | Instruments, Gen2, MPH, UK | 1 | $1576.56 | Out of Stock | Notify Me |
| 1 | T2505239 Instruments, Gen2, MPH, US | Instruments, Gen2, MPH, US | 1 | $1576.56 | Available to order | 1 |
| 1 | T2505240 Instruments, Gen2, KMH, EU | Instruments, Gen2, KMH, EU | 1 | $1576.56 | Available to order | 1 |
| 1 | T2505241 Instruments, Gen2, KMH, JP | Instruments, Gen2, KMH, JP | 1 | $1576.56 | Backorder — Late August 2026 | 1 |
| 1 | T2505242 Instruments, Gen2, KMH, CN | Instruments, Gen2, KMH, CN | 1 | $1576.56 | Available to order | 1 |
| 2 | T2043922 Instrument Mount | Instrument Mount | 1 | $38.99 | Out of Stock | Notify Me |
| 3 | T2503650 Instrument Mount Bracket | Instrument Mount Bracket | 1 | $10.71 | Available to order | 1 |
| 4 | T2043949 Cover, Instrument Connector | Cover, Instrument Connector | 1 | $7.80 | Out of Stock | Notify Me |
| 5 | T3020056 Grommet, Instruments | Grommet, Instruments | 3 | $3.50 | Available to order | 3 |
| 6 | T3555011 Washer, 6.5 x 20 x 2 | Washer, 6.5 x 20 x 2 | 3 | $0.97 | Available to order | 3 |
| 7 | T3330289 Screw, But/Hd, TX, M5 x 16, Slv | Screw, But/Hd, TX, M5 x 16, Slv | 3 | $1.99 | Available to order | 3 |
| 8 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
| 9 | T3330356 Screw, M5 x 10, S/S, Enc | Screw, M5 x 10, S/S, Enc | 4 | $6.07 | Available to order | 4 |
| 10 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $3.39 | Available to order | 1 |
