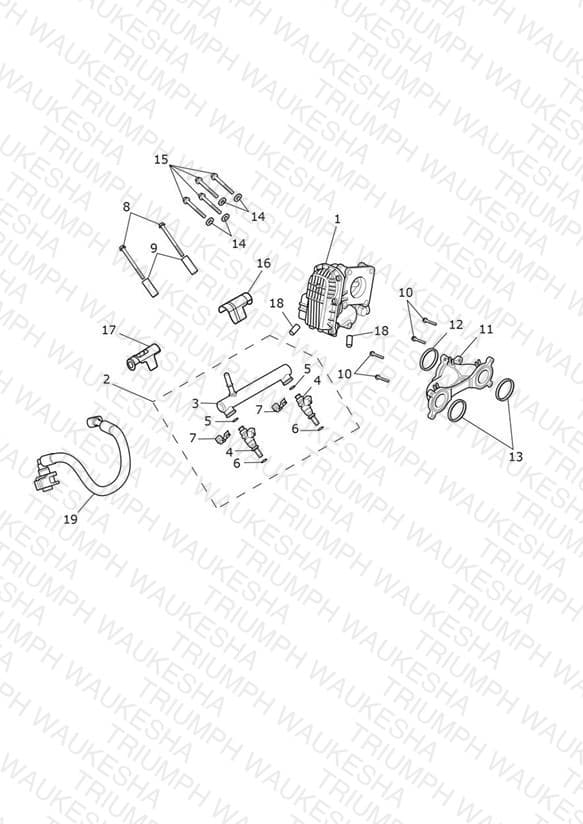

Throttle Bodies
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1243406 Throttle Body, 45mm, Single | Throttle Body, 45mm, Single | 1 | $792.15 | Available to order | 1 |
| 2 | T1241970 Fuel Rail Assy, High Flow | Fuel Rail Assy, High Flow | 1 | $249.05 | Backorder — Late August 2026 | 1 |
| 3 | T1242261 Fuel Rail Assy | Fuel Rail Assy | 1 | $243.93 | Out of Stock | Notify Me |
| 4 | T1241960 Injector Assy, High Flow | Injector Assy, High Flow | 2 | $218.63 | Available to order | 2 |
| 5 | T1241965 O Ring, Injector, Upper | O Ring, Injector, Upper | 2 | $5.42 | Available to order | 2 |
| 6 | T1241966 O Ring, Injector, Lower | O Ring, Injector, Lower | 2 | $5.42 | Available to order | 2 |
| 7 | T1241967 Clip, Injector | Clip, Injector | 2 | $5.78 | Available to order | 2 |
| 8 | T3200195 Bolt, RHHF, M6 x 68, Slv | Bolt, RHHF, M6 x 68, Slv > Eng No AG0229 All Expt BR; > AF9930 BR Only | 2 | $4.36 | Available to order | 2 |
| 8 | T3205075 Bolt, HHF, Lghtd, M6 x 65, Slv | Bolt, HHF, Lghtd, M6 x 65, Slv Eng No AG0230 > All Expt BR & AF9931 > BR Only | 2 | $3.77 | Available to order | 2 |
| 9 | T1242786 Spacer, Fuel Rail, Aluminium | Spacer, Fuel Rail, Aluminium | 2 | $5.60 | Available to order | 2 |
| 10 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 4 | $2.63 | Available to order | 4 |
| 11 | T1241988 Y Piece, Inlet | Y Piece, Inlet | 1 | $205.25 | Out of Stock | Notify Me |
| 12 | T1242023 Seal, Intake, 59.75 OD | Seal, Intake, 59.75 OD | 1 | $7.06 | Available to order | 1 |
| 13 | T1242090 Seal, Intake, 53.25 OD | Seal, Intake, 53.25 OD | 2 | $7.06 | Available to order | 2 |
| 14 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 4 | $1.40 | Available to order | 4 |
| 15 | T3205093 Bolt, HHF, Lghtd, M6 x 50, Slv | Bolt, HHF, Lghtd, M6 x 50, Slv | 4 | $6.73 | Available to order | 4 |
| 16 | T1241955 Cover, Fuel Rail, LH | Cover, Fuel Rail, LH > Eng No AG0229 All Expt BR; > AF9930 BR Only | 1 | $22.52 | Available to order | 1 |
| 17 | T1241956 Cover, Fuel Rail, RH | Cover, Fuel Rail, RH > Eng No AG0229 All Expt BR; > AF9930 BR Only | 1 | $22.52 | Available to order | 1 |
| 18 | T3450145 End Tip | End Tip | 2 | $1.21 | Available to order | 2 |
| 19 | T1243321 Hose Assy, Fuel Feed, Rubber | Hose Assy, Fuel Feed, Rubber | 1 | $137.88 | Available to order | 1 |
| 20 | T1241982 Spring Clip, Fuel Rail | Spring Clip, Fuel Rail Not Illustrated | 1 | $5.88 | Available to order | 1 |
