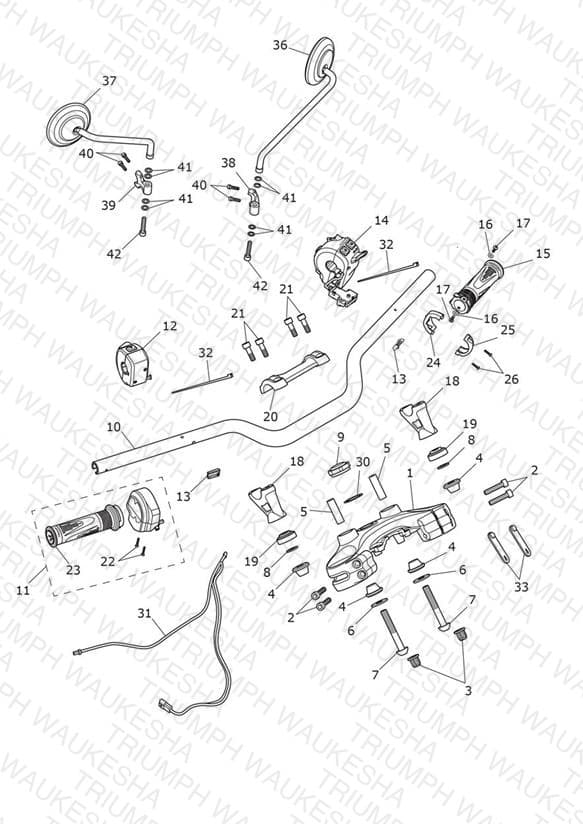

Handlebars, Top Yoke & Mirrors
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2041761 Upper Yoke | Upper Yoke | 1 | $631.16 | Out of Stock | Notify Me |
| 2 | T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv | Screw, Cap/Hd, M8 x 1.25 x 35, Slv | 4 | $4.74 | Available to order | 4 |
| 3 | T2703780 Grommet, Headlight Bracket | Grommet, Headlight Bracket | 2 | $3.50 | Available to order | 2 |
| 4 | T2042136 Rubber Bush, Handlebar Clamp | Rubber Bush, Handlebar Clamp | 4 | $8.25 | Available to order | 4 |
| 5 | T2045065 Sleeve, Flanged, Handlebar | Sleeve, Flanged, Handlebar | 2 | $15.72 | Available to order | 2 |
| 6 | T3555030 Washer, 10.5 x 30 x 2.5 | Washer, 10.5 x 30 x 2.5 | 2 | $6.65 | Available to order | 2 |
| 7 | T3332552 Bolt, Skt/Hd, M10, 75, LG | Bolt, Skt/Hd, M10, 75, LG | 2 | $5.30 | Available to order | 2 |
| 8 | T3550632 Washer, 10.5 x 21 x 2 | Washer, 10.5 x 21 x 2 | 2 | $2.95 | Available to order | 2 |
| 9 | T2049880 Nut, Upper Yoke, M25 | Nut, Upper Yoke, M25 | 1 | $24.43 | Available to order | 1 |
| 10 | T2042445 Handlebar, Aluminium, Natural | Handlebar, Aluminium, Natural | 1 | $206.88 | Available to order | 1 |
| 11 | T2045224 Sensor, AP, Cruise, Heated | Sensor, AP, Cruise, Heated | 1 | $224.15 | Available to order | 1 |
| 12 | T2041764 Switchcube, RH, Variant 6 | Switchcube, RH, Variant 6 | 1 | $245.24 | Available to order | 1 |
| 13 | T2049701 Switchcube Mounting Block | Switchcube Mounting Block | 2 | $5.30 | Available to order | 2 |
| 14 | T2049753 Switchcube, LH, Variant 21 | Switchcube, LH, Variant 21 All Except US, CA, JP & CN | 1 | $177.30 | Backorder — Late August 2026 | 1 |
| 14 | T2049754 Switchcube, LH, Variant 22 | Switchcube, LH, Variant 22 US, CA, JP & CN Only | 1 | $202.60 | Available to order | 1 |
| 15 | T2046369 Heated Grip, LH | Heated Grip, LH | 1 | $176.72 | Out of Stock | Notify Me |
| 16 | T3550500 Washer, 4.3 x 9.0 x 0.8 | Washer, 4.3 x 9.0 x 0.8 | 2 | $1.72 | Available to order | 2 |
| 17 | T3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD | Screw, S/Tap, Pan/Hd, M4 x 10, HD | 2 | $7.14 | Available to order | 2 |
| 18 | T2042947 Clamp, Handlebar Lower | Clamp, Handlebar Lower | 2 | $49.92 | Available to order | 2 |
| 19 | T2042653 Spacer, Handlebar Clamp | Spacer, Handlebar Clamp | 2 | $10.78 | Available to order | 2 |
| 20 | T2044970 Clamp, Handlebar Upper, Etched | Clamp, Handlebar Upper, Etched | 1 | $270.29 | Out of Stock | Notify Me |
| 21 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 4 | $4.12 | Available to order | 4 |
| 22 | T3050314 Bolt, M5 x 20 | Bolt, M5 x 20 | 2 | $7.02 | Available to order | 2 |
| 23 | T2042078 Heated Grip, RH | Heated Grip, RH | 1 | $176.68 | Available to order | 1 |
| 24 | T2043692 Heated Grip, Housing, Switch | Heated Grip, Housing, Switch | 1 | $7.38 | Available to order | 1 |
| 25 | T2043694 Heated Grip, Housing, Rear | Heated Grip, Housing, Rear | 1 | $7.30 | Available to order | 1 |
| 26 | T3330264 Screw, S/Tap, TX, 3 x 1.35 x 12, Blk | Screw, S/Tap, TX, 3 x 1.35 x 12, Blk | 2 | $5.02 | Available to order | 2 |
| 30 | T3550525 Washer, 25.5 x 35 x 0.5 | Washer, 25.5 x 35 x 0.5 | 1 | $13.33 | Available to order | 1 |
| 31 | T2042516 Subharness, Heated Grips | Subharness, Heated Grips | 1 | $37.72 | Out of Stock | Notify Me |
| 32 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 2 | $0.89 | Available to order | 2 |
| 33 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 2 | $3.90 | Available to order | 2 |
| 36 | T2060087 Mirror Assy, LH | Mirror Assy, LH | 1 | $132.34 | Available to order | 1 |
| 37 | T2060088 Mirror Assy, RH | Mirror Assy, RH | 1 | $132.34 | Available to order | 1 |
| 38 | T2060642 Bracket, Mirror, LH | Bracket, Mirror, LH | 1 | $92.63 | Available to order | 1 |
| 39 | T2060643 Bracket, Mirror, RH | Bracket, Mirror, RH | 1 | $92.63 | Out of Stock | Notify Me |
| 40 | T3050301 Screw, Cap/Hd. M5 x 20, Blk | Screw, Cap/Hd. M5 x 20, Blk | 4 | $2.19 | Backorder — Late August 2026 | 4 |
| 41 | T3550278 Washer, Low FR, 8.5 x 14 | Washer, Low FR, 8.5 x 14 | 8 | $5.60 | Available to order | 8 |
| 42 | T3051033 Screw, Cap/Hd, M8 x 40, Enc | Screw, Cap/Hd, M8 x 40, Enc | 2 | $8.60 | Available to order | 2 |
