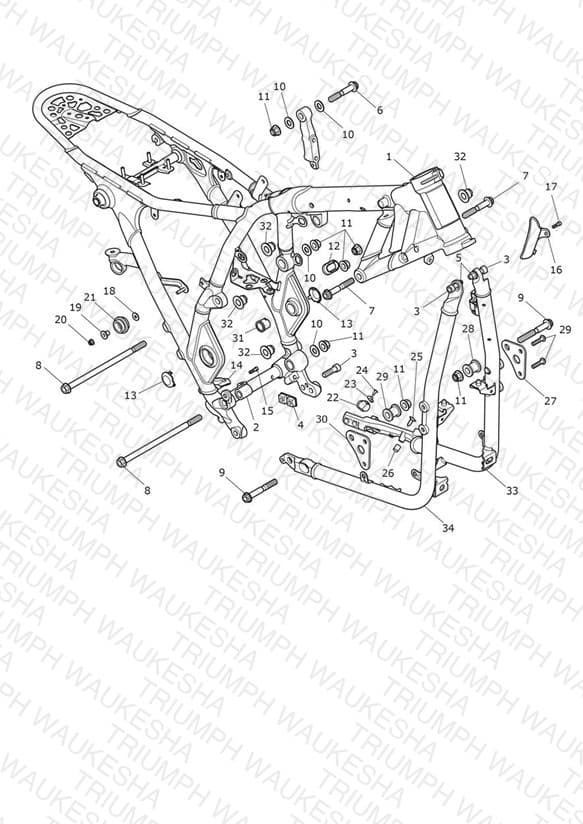

Main Frame Assembly
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2079501 Frame Assembly, CA | Frame Assembly, CA | 1 | $5310.40 | Out of Stock | Notify Me |
| 1 | T2079502 Frame Assembly, AU | Frame Assembly, AU | 1 | $5310.40 | Out of Stock | Notify Me |
| 1 | T2079503 Frame Assembly, US & UC | Frame Assembly, US & UC | 1 | $5310.40 | Out of Stock | Notify Me |
| 1 | T2079504 Frame Assembly, ROW | Frame Assembly, ROW | 1 | $3110.25 | Out of Stock | Notify Me |
| 1 | T2079505 Frame Assembly, BR | Frame Assembly, BR | 1 | $5310.40 | Out of Stock | Notify Me |
| 1 | T2079506 Frame Assembly, TH | Frame Assembly, TH | 1 | $5310.40 | Out of Stock | Notify Me |
| 2 | T2072119 Spacer, 13 x 24 x 29 | Spacer, 13 x 24 x 29 | 1 | $7.42 | Available to order | 1 |
| 3 | T3203206 Screw, Cap/Hd, M10 x 35, Slv | Screw, Cap/Hd, M10 x 35, Slv | 3 | $6.67 | Available to order | 3 |
| 4 | T2075055 Bracket, M10 | Bracket, M10 | 1 | $15.12 | Available to order | 1 |
| 5 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 2 | $4.16 | Available to order | 2 |
| 6 | T3150316 Bolt, HHF, M12 x 70, Silver | Bolt, HHF, M12 x 70, Silver | 1 | $13.10 | Available to order | 1 |
| 7 | T3151024 Bolt, HHF, M12 x 75, 10,9, Slv | Bolt, HHF, M12 x 75, 10,9, Slv | 2 | $6.39 | Available to order | 2 |
| 8 | T3334675 Bolt, HHF, M12 x 240, Slv | Bolt, HHF, M12 x 240, Slv | 2 | $6.94 | Out of Stock | Notify Me |
| 9 | T3151144 Bolt, TX, M12 x 85, Slv | Bolt, TX, M12 x 85, Slv | 2 | $9.88 | Available to order | 2 |
| 10 | T3501795 Washer, M12, OD26, Hardened, Slv | Washer, M12, OD26, Hardened, Slv | 5 | $2.25 | Backorder — Late August 2026 | 5 |
| 11 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 7 | $6.07 | Available to order | 7 |
| 12 | T2070387 Bung, Rubber, Oval | Bung, Rubber, Oval | 1 | $3.17 | Available to order | 1 |
| 13 | T2074269 Cover, Swingarm Pivot | Cover, Swingarm Pivot | 2 | $42.64 | Available to order | 2 |
| 14 | T2076004 Rubbing Block, Chain | Rubbing Block, Chain | 1 | $18.80 | Available to order | 1 |
| 15 | T3050333 Screw, Cap/Hd, M6 x 25, Slv | Screw, Cap/Hd, M6 x 25, Slv | 1 | $7.62 | Available to order | 1 |
| 16 | T2075234 Panel, Infill, Fuel Tank Moulding | Panel, Infill, Fuel Tank Moulding | 1 | $79.18 | Backorder — Mid August 2026 | 1 |
| 17 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 1 | $5.02 | Available to order | 1 |
| 18 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 1 | $1.21 | Available to order | 1 |
| 19 | T3013360 Flanged Sleeve, M6 x 12 | Flanged Sleeve, M6 x 12 | 1 | $6.94 | Available to order | 1 |
| 20 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 21 | T2076021 Chain Roller | Chain Roller | 1 | $6.45 | Out of Stock | Notify Me |
| 22 | T2084848 Rubber Pad, Sidestand | Rubber Pad, Sidestand | 1 | $3.04 | Available to order | 1 |
| 23 | T3701094 P Clip, Dia 4.4, Black | P Clip, Dia 4.4, Black | 1 | $3.24 | Available to order | 1 |
| 24 | T3701098 Firtree, Dia 5 x 18 | Firtree, Dia 5 x 18 | 1 | $5.24 | Available to order | 1 |
| 25 | T3450299 Firtree, M6 | Firtree, M6 | 1 | $3.33 | Available to order | 1 |
| 26 | T3750020 Bush, PAP, 1215 P14 | Bush, PAP, 1215 P14 | 1 | $7.30 | Available to order | 1 |
| 27 | T2071864 Bracket, Engine Mount, LH | Bracket, Engine Mount, LH | 2 | $30.63 | Available to order | 2 |
| 28 | T2071637 Spacer, Engine Mount | Spacer, Engine Mount | 2 | $6.73 | Available to order | 2 |
| 29 | T3330293 Screw, But/Hd, TX, M8 x 30, Blk | Screw, But/Hd, TX, M8 x 30, Blk | 4 | $8.33 | Available to order | 4 |
| 30 | T2071863 Bracket, Engine Mount, RH | Bracket, Engine Mount, RH | 1 | $30.63 | Available to order | 1 |
| 31 | T2051010 Swingarm Pivot Adjuster | Swingarm Pivot Adjuster | 1 | $24.43 | Available to order | 1 |
| 32 | T2071980 Adjuster, Frame, M12 | Adjuster, Frame, M12 | 4 | $9.78 | Out of Stock | Notify Me |
| 33 | T2071344 Cradle Assembly, LH | Cradle Assembly, LH | 1 | $270.39 | Backorder — Early August 2026 | 1 |
| 34 | T2071345 Cradle Assembly, RH | Cradle Assembly, RH | 1 | $270.39 | Available to order | 1 |
