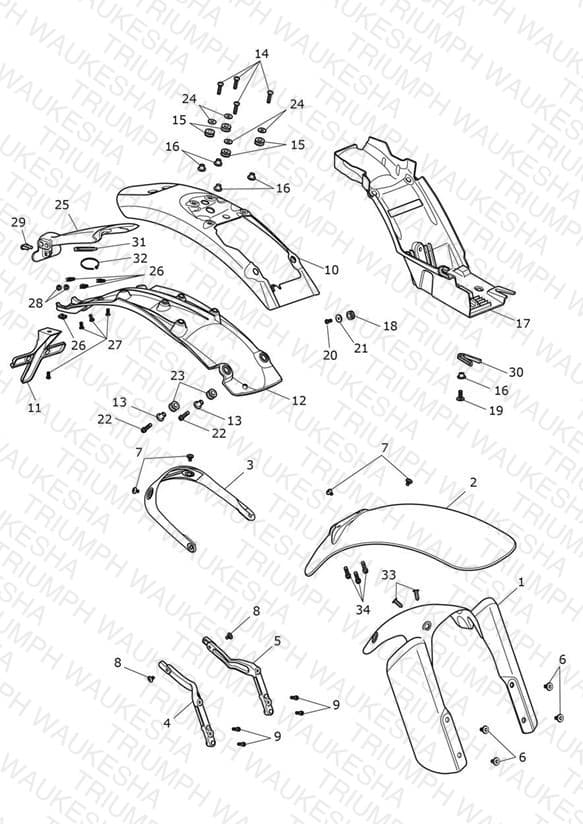

Mudguards
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2305717 Support, Front Mudguard | Support, Front Mudguard | 1 | $358.51 | Available to order | 1 |
| 2 | T2317865 Front Mudguard, High, Black | Front Mudguard, High, Black | 1 | $355.49 | Available to order | 1 |
| 3 | T2305723 Stay, Front Mudguard | Stay, Front Mudguard | 1 | $123.56 | Available to order | 1 |
| 4 | T2308257 Mount Post, Front Mudguard, RH | Mount Post, Front Mudguard, RH | 1 | $53.55 | Available to order | 1 |
| 5 | T2308258 Mount Post, Front Mudguard, LH | Mount Post, Front Mudguard, LH | 1 | $53.55 | Available to order | 1 |
| 6 | T3330858 Bolt, But/Hd, M6 x 15, Shld, Slv | Bolt, But/Hd, M6 x 15, Shld, Slv | 4 | $2.55 | Available to order | 4 |
| 7 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 4 | $5.02 | Available to order | 4 |
| 8 | T3331075 Bolt, But/Hd, M5 x 14, Slv | Bolt, But/Hd, M5 x 14, Slv | 2 | $5.02 | Available to order | 2 |
| 9 | T3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc | Screw, Cap/Hd, M6 x 16, Slv, Enc | 4 | $2.35 | Available to order | 4 |
| 10 | T2317890 Rear Mudguard, Black | Rear Mudguard, Black | 1 | $942.49 | Available to order | 1 |
| 11 | T2308772 Hanger, Numberplate, Lower | Hanger, Numberplate, Lower | 1 | $136.31 | Out of Stock | Notify Me |
| 12 | T2308773 Support Bracket, Rear Mudguard | Support Bracket, Rear Mudguard | 1 | $113.04 | Available to order | 1 |
| 13 | T3010701 Flanged Sleeve, 6.4 x 10 x 14.5 | Flanged Sleeve, 6.4 x 10 x 14.5 | 2 | $5.30 | Available to order | 2 |
| 14 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 4 | $1.06 | Available to order | 4 |
| 15 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $2.85 | Available to order | 4 |
| 16 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 5 | $5.78 | Available to order | 5 |
| 17 | T2307242 Mudguard Tray | Mudguard Tray | 1 | $127.30 | Available to order | 1 |
| 18 | T3020050 Grommet | Grommet | 1 | $5.14 | Available to order | 1 |
| 19 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 1 | $3.39 | Available to order | 1 |
| 20 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 1 | $1.51 | Available to order | 1 |
| 21 | T3550286 Washer, 5.3 x 18 x 1.6 | Washer, 5.3 x 18 x 1.6 | 1 | $1.62 | Backorder — Early September 2026 | 1 |
| 22 | T3205081 Bolt, HHF, Lghtd, M6 x 28, Enc | Bolt, HHF, Lghtd, M6 x 28, Enc | 2 | $1.51 | Available to order | 2 |
| 23 | T3021155 Grommet, Dia 13 x 6, Panel | Grommet, Dia 13 x 6, Panel | 2 | $1.24 | Available to order | 2 |
| 24 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 4 | $1.21 | Available to order | 4 |
| 25 | T2308829 Numberplate Hanger, Upper | Numberplate Hanger, Upper | 1 | $18.85 | Available to order | 1 |
| 26 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 4 | $4.55 | Available to order | 4 |
| 27 | T3332656 Screw, Button, M5 x 12, Enc | Screw, Button, M5 x 12, Enc | 4 | $1.11 | Available to order | 4 |
| 28 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 2 | $2.25 | Available to order | 2 |
| 29 | T2308898 Weld Stud Plate, M5 x 0.8 x 14.8 | Weld Stud Plate, M5 x 0.8 x 14.8 | 1 | $4.22 | Available to order | 1 |
| 30 | T2308764 Grommet, Rear Mudguard Tray | Grommet, Rear Mudguard Tray | 1 | $2.85 | Available to order | 1 |
| 31 | T3700370 Cable Tie Holder, 21 x 21, White | Cable Tie Holder, 21 x 21, White | 1 | $2.10 | Available to order | 1 |
| 32 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
| 33 | T3450123 Fir Tree, 4.5 x 11, Black | Fir Tree, 4.5 x 11, Black | 2 | $3.21 | Available to order | 2 |
| 34 | T3330696 Screw, But/Hd, M5 X 16, Slv | Screw, But/Hd, M5 X 16, Slv | 3 | $5.69 | Available to order | 3 |
