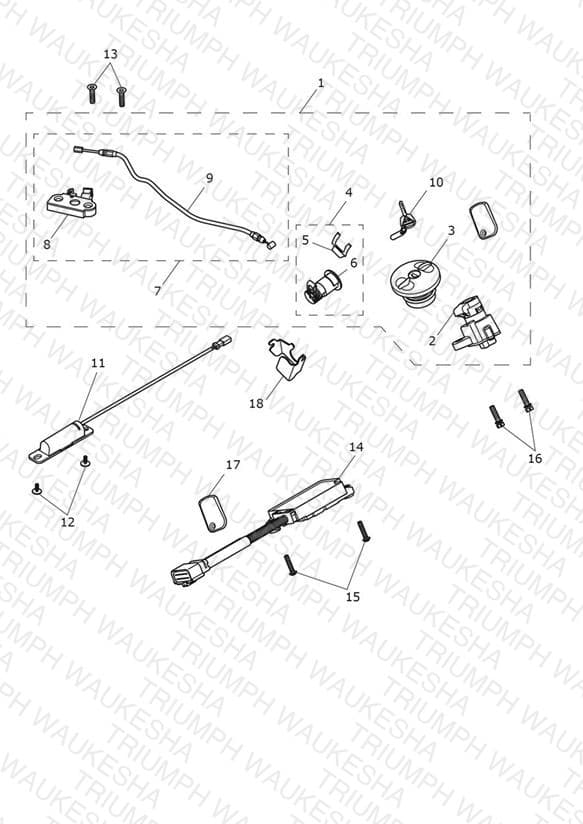

Ignition Switch & Lockset
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2502874 Lockset, Spares | Lockset, Spares All Except JP - Includes smart key SHELL | 1 | $624.93 | Available to order | 1 |
| 1 | T2502875 Lockset, Spares | Lockset, Spares JP Only - Includes smart key SHELL | 1 | $624.93 | Out of Stock | Notify Me |
| 2 | T2502119 Steering Lock | Steering Lock Supplied with 2 keys | 1 | $252.83 | Available to order | 1 |
| 3 | T2401609 Filler Cap, Fuel | Filler Cap, Fuel Supplied with 2 keys | 1 | $110.28 | Available to order | 1 |
| 4 | T2501743 Seat Lock Assembly | Seat Lock Assembly | 1 | $125.46 | Backorder — Mid August 2026 | 1 |
| 5 | T2505616 Clip, Seat Lock | Clip, Seat Lock | 1 | $9.97 | Available to order | 1 |
| 6 | T2501913 Seat Lock, Panel Mount | Seat Lock, Panel Mount | 1 | $78.69 | Out of Stock | Notify Me |
| 7 | T2501848 Latch Assy, Seat | Latch Assy, Seat | 1 | $36.21 | Available to order | 1 |
| 8 | T2500506 Seat Latch Housing | Seat Latch Housing | 1 | $33.01 | Available to order | 1 |
| 9 | T2501885 Cable, Seat Lock | Cable, Seat Lock | 1 | $27.77 | Backorder — Early August 2026 | 1 |
| 10 | T2502342 Key, Blank, Fob | Key, Blank, Fob | 2 | $39.92 | Available to order | 2 |
| 10 | T2508013 Key, Blank, Immob, Type 3, Modern | Key, Blank, Immob, Type 3, Modern | 1 | $76.04 | Available to order | 1 |
| 11 | T2502182 Antenna, LF | Antenna, LF | 2 | $24.33 | Available to order | 2 |
| 12 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 4 | $0.75 | Available to order | 4 |
| 13 | T3330184 Screw, C'sunk Tx, M6 x 25, Slv | Screw, C'sunk Tx, M6 x 25, Slv | 2 | $1.27 | Available to order | 2 |
| 14 | T2504246 KCU & Cut Keys, Kit, RF434 | KCU & Cut Keys, Kit, RF434 All Except JP - Includes item 17 | 1 | $997.81 | Available to order | 1 |
| 14 | T2504245 KCU & Cut Keys, Kit, RF315 | KCU & Cut Keys, Kit, RF315 JP Only - Includes item 17 | 1 | $1417.22 | Out of Stock | Notify Me |
| 15 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 2 | $2.17 | Available to order | 2 |
| 16 | T3330327 Bolt, Shear, M6 x 22, Enc | Bolt, Shear, M6 x 22, Enc | 2 | $5.24 | Available to order | 2 |
| 17 | T2509508 Smart Key, Cut, Assy, RF434 | Smart Key, Cut, Assy, RF434 All Except JP - Included in item 14 | 1 | $205.79 | Out of Stock | Notify Me |
| 17 | T2509509 Smart Key, Cut, Assy, RF315 | Smart Key, Cut, Assy, RF315 JP Only - Included in item 14 | 1 | $205.79 | Out of Stock | Notify Me |
| 18 | T2506663 Bracket, Seat Lock Cable | Bracket, Seat Lock Cable | 1 | $14.83 | Available to order | 1 |
