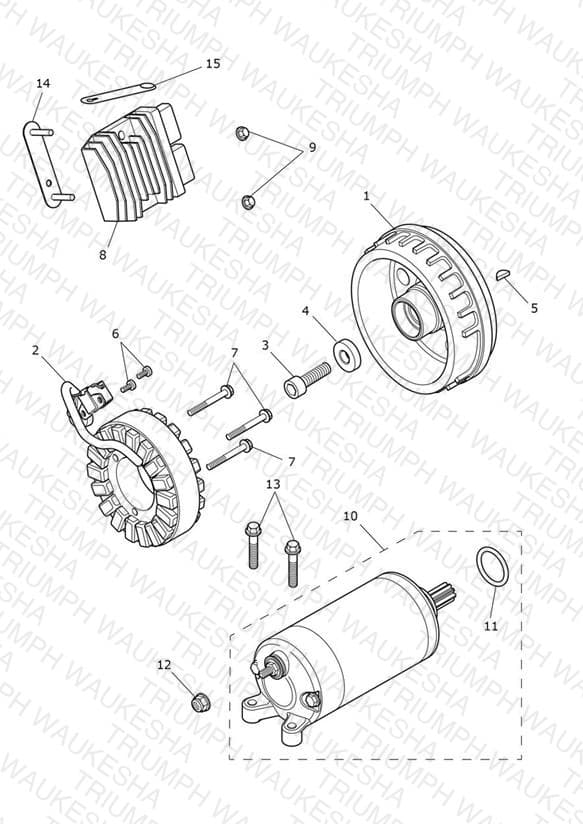

Alternator & Starter Motor
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1308005 Rotor, Alternator, Rare Earth | Rotor, Alternator, Rare Earth | 1 | $620.69 | Available to order | 1 |
| 2 | T1308006 Stator, Alternator, Rare Earth | Stator, Alternator, Rare Earth | 1 | $454.08 | Available to order | 1 |
| 3 | T3208888 Bolt, Radial Feed, M12 x 40 | Bolt, Radial Feed, M12 x 40 | 1 | $14.46 | Available to order | 1 |
| 4 | T3550846 Washer, M12 x 30 x 8 | Washer, M12 x 30 x 8 | 1 | $11.03 | Available to order | 1 |
| 5 | T1300895 Key, Woodruff | Key, Woodruff | 1 | $7.77 | Available to order | 1 |
| 6 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $2.10 | Available to order | 2 |
| 7 | T3050302 Capscrew, Skt/Hd, M6 x 35 | Capscrew, Skt/Hd, M6 x 35 | 3 | $1.21 | Available to order | 3 |
| 8 | T1300679 Regulator Rectifier | Regulator Rectifier | 1 | $412.16 | Available to order | 1 |
| 9 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 10 | T1313222 Starter Motor, 1KW | Starter Motor, 1KW | 1 | $1153.04 | Available to order | 1 |
| 11 | T3600115 O Ring | O Ring | 1 | $3.39 | Backorder — Mid September 2026 | 1 |
| 12 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 13 | T3205070 Bolt, HHF, Lghtd, M6 x 30, Slv | Bolt, HHF, Lghtd, M6 x 30, Slv | 2 | $2.37 | Available to order | 2 |
| 14 | T2509350 Bracket, Regulator | Bracket, Regulator | 1 | $5.42 | Out of Stock | Notify Me |
| 15 | T3700212 Band, Rubber | Band, Rubber | 1 | $3.29 | Available to order | 1 |
