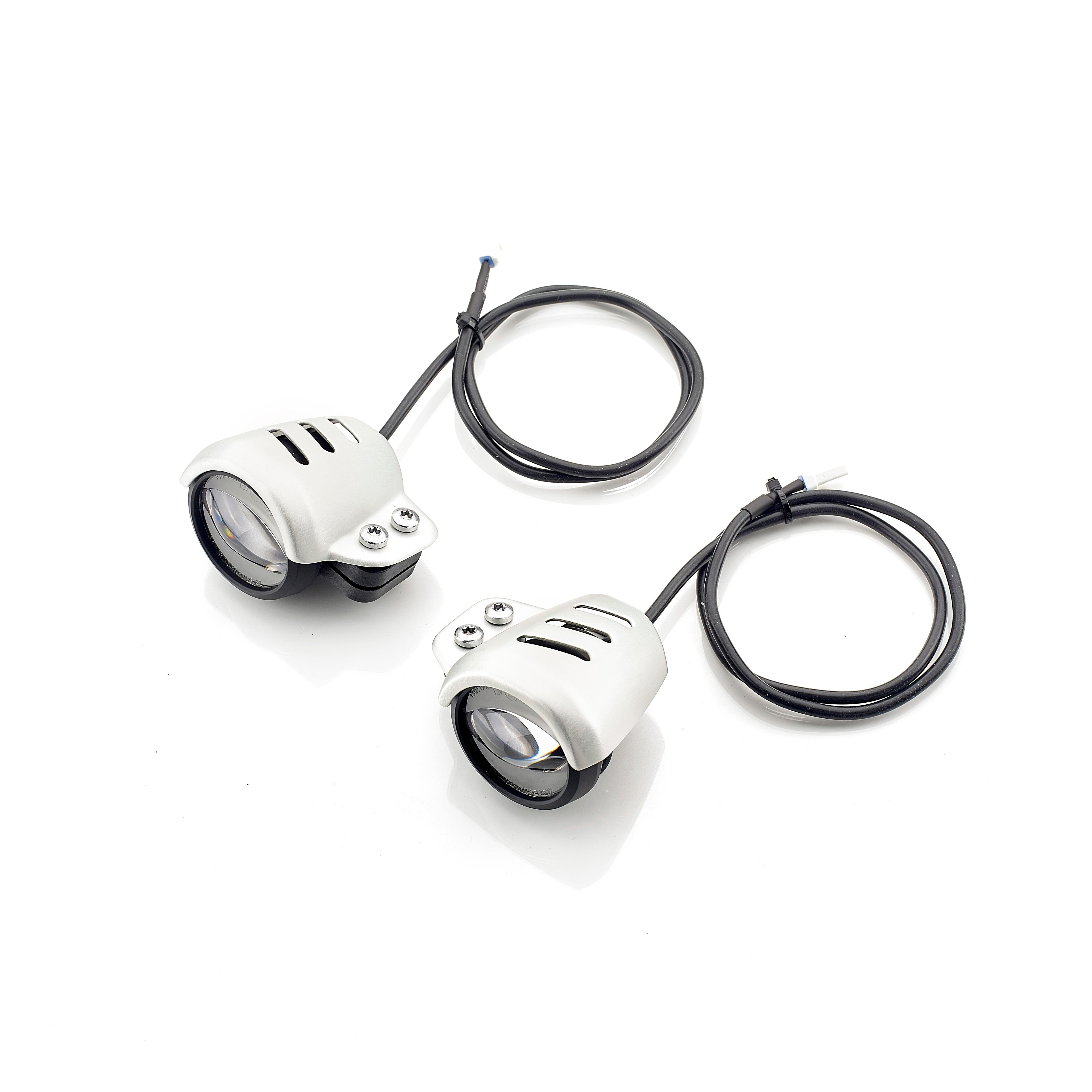

LED Fog Lamps
Schematic
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9838053 LED Fog Lamps | LED Fog Lamps | 1 | $380.00 | Unavailable | View Details |
| 2 | T9838060 Clamp, Fog Light, Moulded | Clamp, Fog Light, Moulded | 2 | $45.61 | Available to order | 2 |
| 3 | T9838061 Shroud, Fog Light, LH | Shroud, Fog Light, LH | 1 | $55.62 | Available to order | 1 |
| 4 | T9830156 Clamp, Fog Lamp, Outer, LH | Clamp, Fog Lamp, Outer, LH | 1 | $40.91 | Available to order | 1 |
| 5 | T9830155 Clamp, Fog Lamp, Inner | Clamp, Fog Lamp, Inner | 2 | $57.72 | Available to order | 2 |
| 6 | T9838064 Shroud, Fog Light, RH | Shroud, Fog Light, RH | 1 | $55.62 | Available to order | 1 |
| 7 | T9838067 Fog Lamp, LED, Type 2 | Fog Lamp, LED, Type 2 | 2 | $244.65 | Available to order | 2 |
| 8 | T3050343 Screw, Cap/Hd, M5 x 30, Slv | Screw, Cap/Hd, M5 x 30, Slv | 4 | $4.45 | Available to order | 4 |
| 9 | T3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc | Screw, Cap/Hd, M6 x 16, Slv, Enc | 4 | $2.35 | Available to order | 4 |
| 10 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 4 | $2.25 | Available to order | 4 |
| 11 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 4 | $5.67 | Available to order | 4 |
| 12 | T9830153 Bracket, Fog Lamp, LH | Bracket, Fog Lamp, LH | 1 | $41.07 | Backorder — Early August 2026 | 1 |
| 13 | T9830154 Bracket, Fog Lamp, RH | Bracket, Fog Lamp, RH | 1 | $41.07 | Available to order | 1 |
| 14 | T9830157 Clamp, Fog Lamp, Outer, RH | Clamp, Fog Lamp, Outer, RH | 1 | $37.88 | Out of Stock | Notify Me |
| 15 | T3700212 Band, Rubber | Band, Rubber | 2 | $3.29 | Available to order | 2 |
