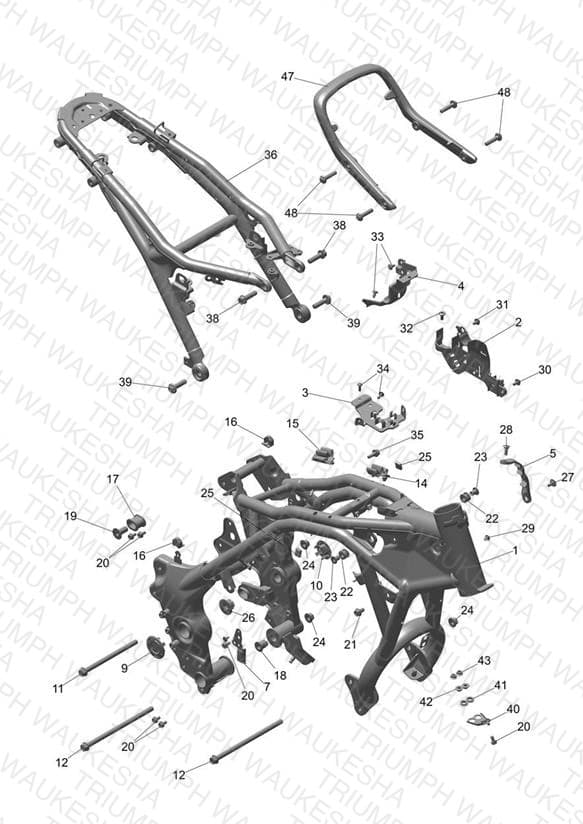

Frame & Rear Subframe
Parts (50)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2077132 Main Frame, Spares, ROW | Main Frame, Spares, ROW ROW | 1 | $1973.19 | Out of Stock | Notify Me |
| 1 | T2077133 Main Frame, Spares, AU | Main Frame, Spares, AU AU | 1 | $1973.19 | Out of Stock | Notify Me |
| 1 | T2077134 Main Frame, Spares, CA | Main Frame, Spares, CA CA | 1 | $1973.19 | Out of Stock | Notify Me |
| 1 | T2077135 Main Frame, Spares, KR | Main Frame, Spares, KR KR | 1 | $1973.19 | Out of Stock | Notify Me |
| 1 | T2077136 Main Frame, Spares, BR | Main Frame, Spares, BR BR | 1 | $1973.19 | Out of Stock | Notify Me |
| 1 | T2077137 Main Frame, Spares, TH | Main Frame, Spares, TH TH | 1 | $1973.19 | Out of Stock | Notify Me |
| 1 | T2077138 Main Frame, Spares, CN | Main Frame, Spares, CN CN | 1 | $1973.19 | Out of Stock | Notify Me |
| 1 | T2077139 Main Frame, Spares, US | Main Frame, Spares, US US | 1 | $1973.19 | Out of Stock | Notify Me |
| 1 | T2077142 Main Frame, Spares, GSO | Main Frame, Spares, GSO GSO | 1 | $1973.19 | Out of Stock | Notify Me |
| 2 | TA113806 Holder, Relay | Holder, Relay | 1 | $4.58 | Available to order | 1 |
| 3 | TA113841 Holder, Connector Harness | Holder, Connector Harness | 1 | $2.90 | Available to order | 1 |
| 4 | TA351212 Cover, Coil Ignition | Cover, Coil Ignition | 1 | $3.24 | Available to order | 1 |
| 5 | TA113840 Bracket, Harness | Bracket, Harness | 1 | $2.90 | Available to order | 1 |
| 7 | TA113210 Bracket, Switch | Bracket, Switch | 1 | $4.07 | Available to order | 1 |
| 8 | JG181380 Nut, Rivet | Nut, Rivet Not Illustrated | 1 | $1.00 | Out of Stock | Notify Me |
| 9 | TA122029 Plug | Plug | 2 | $1.91 | Available to order | 2 |
| 11 | LAD00287 Bolt, Flanged, M10 x 1.25 | Bolt, Flanged, M10 x 1.25 | 1 | $8.18 | Available to order | 1 |
| 12 | LAD00286 Bolt, Flanged, M10 x 1.25 | Bolt, Flanged, M10 x 1.25 | 2 | $9.82 | Available to order | 2 |
| 14 | TA171035 Damper, LH | Damper, LH | 1 | $2.53 | Available to order | 1 |
| 15 | TA171052 Damper, RH | Damper, RH | 1 | $2.53 | Available to order | 1 |
| 16 | JZ181322 Grommet, Side Cover | Grommet, Side Cover | 1 | $0.84 | Backorder — Early October 2026 | 1 |
| 17 | TA113836 Damper | Damper | 1 | $2.30 | Available to order | 1 |
| 18 | TA113810 Bolt Adjuster | Bolt Adjuster | 1 | $11.11 | Available to order | 1 |
| 19 | TA181240 Collar | Collar | 1 | $3.37 | Available to order | 1 |
| 20 | KADD0612 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 6 | $0.37 | Available to order | 6 |
| 21 | KADD0814 Bolt, Flanged, M8 x 1 | Bolt, Flanged, M8 x 1 | 1 | $0.60 | Out of Stock | Notify Me |
| 22 | GL113812 Grommet | Grommet | 2 | $0.84 | Available to order | 2 |
| 23 | GL113811 Collar | Collar | 2 | $1.45 | Available to order | 2 |
| 24 | LCL00001 Nut, Hex Flange | Nut, Hex Flange | 3 | $0.44 | Available to order | 3 |
| 25 | JY591303 Grommet Shield Muffler | Grommet Shield Muffler | 1 | $0.49 | Available to order | 1 |
| 26 | TA122016 Bolt, Adjuster | Bolt, Adjuster | 1 | $12.31 | Available to order | 1 |
| 27 | LBU00182 Screw, Socket, Step, M6 x 1 | Screw, Socket, Step, M6 x 1 | 1 | $0.97 | Available to order | 1 |
| 28 | LBU00168 Screw, Socket, Step, M6 x 1 | Screw, Socket, Step, M6 x 1 | 1 | $1.32 | Available to order | 1 |
| 29 | PD113822 Plug | Plug | 1 | $0.37 | Available to order | 1 |
| 30 | LBU00131 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 | 1 | $1.32 | Available to order | 1 |
| 31 | LBU00045 Screw, Btn Hd, M6 x 1 x 10, Precoat | Screw, Btn Hd, M6 x 1 x 10, Precoat | 1 | $0.37 | Available to order | 1 |
| 32 | LBU00149 Screw, Socket, Step | Screw, Socket, Step | 1 | $0.97 | Out of Stock | Notify Me |
| 33 | BF185019 Clip, Plastic | Clip, Plastic | 1 | $0.70 | Available to order | 1 |
| 34 | JG561204 Bolt Stopper Drum | Bolt Stopper Drum | 1 | $2.40 | Available to order | 1 |
| 35 | LAD00307 Bolt, Flanged, M8 x 1.25 | Bolt, Flanged, M8 x 1.25 | 1 | $1.81 | Available to order | 1 |
| 36 | 52TA0400 Rear Subframe, TA111084, Blk, Slv | Rear Subframe, TA111084, Blk, Slv | 1 | $575.00 | Available to order | 1 |
| 38 | LAD00308 Bolt, Flanged, M10 x 1.25 | Bolt, Flanged, M10 x 1.25 | 2 | $2.65 | Available to order | 2 |
| 39 | LBU00137 Screw, Torx, M10 x 1.25 | Screw, Torx, M10 x 1.25 | 2 | $8.77 | Available to order | 2 |
| 40 | TA113827 Bracket, Sensor, Roll Over | Bracket, Sensor, Roll Over | 1 | $3.27 | Out of Stock | Notify Me |
| 41 | LLA00003 Grommet, ID 9.3 x OD 16 x HT 5 | Grommet, ID 9.3 x OD 16 x HT 5 | 2 | $0.30 | Backorder — Mid October 2026 | 2 |
| 42 | JP181014 Collar Tail Lamp Mounting | Collar Tail Lamp Mounting | 2 | $0.49 | Backorder — Mid October 2026 | 2 |
| 43 | KCGA0606 Nut, Hex, Flanged | Nut, Hex, Flanged Not Illustrated | 1 | $0.10 | Available to order | 1 |
| 47 | 56TAV24X Grab Handle, Satin Black Powdercoat | Grab Handle, Satin Black Powdercoat | 1 | $83.70 | Available to order | 1 |
| 48 | LBU00201 Screw, Torx, M8 x 1.25 | Screw, Torx, M8 x 1.25 | 4 | $3.78 | Available to order | 4 |
| 52 | JP181231 Bush, Belly Pan Mtg | Bush, Belly Pan Mtg Not Illustrated | 1 | $0.61 | Available to order | 1 |
