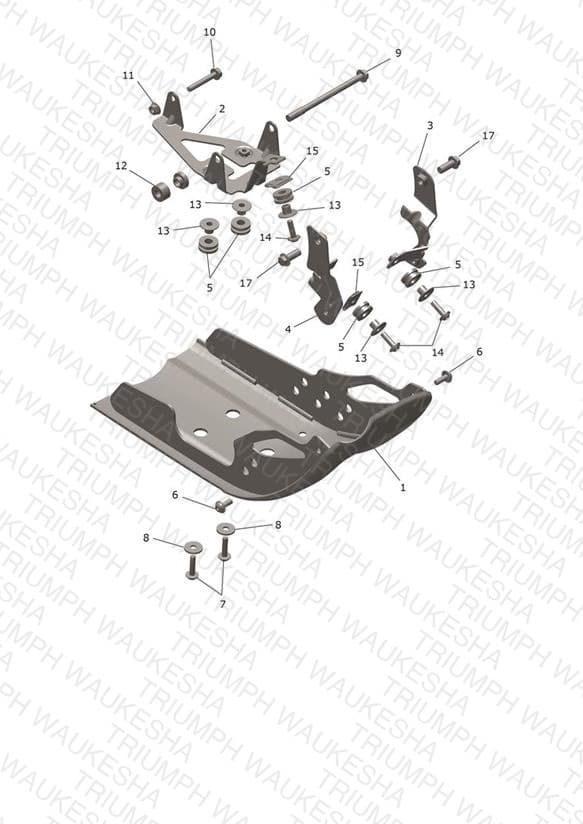

Sumpguard
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 52TA0234 Sumpguard Assembly | Sumpguard Assembly | 1 | $425.65 | Available to order | 1 |
| 2 | TA541232 Bracket, Sumpguard Lower, Rear | Bracket, Sumpguard Lower, Rear | 1 | $18.80 | Available to order | 1 |
| 3 | TA541230 Bracket, Sumpguard Upper, LH | Bracket, Sumpguard Upper, LH | 1 | $7.25 | Available to order | 1 |
| 4 | TA541231 Bracket, Sumpguard Upper, RH | Bracket, Sumpguard Upper, RH | 1 | $7.35 | Available to order | 1 |
| 5 | JP171051 Grommet | Grommet | 5 | $0.67 | Backorder — Late August 2026 | 5 |
| 6 | LBU00203 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 | 2 | $1.47 | Available to order | 2 |
| 7 | LBU00053 Screw, Btn Hd, M6 x 25, Brt | Screw, Btn Hd, M6 x 25, Brt | 2 | $0.34 | Available to order | 2 |
| 8 | LDB00015 Washer, Plain, ID 6.5 x OD 20 | Washer, Plain, ID 6.5 x OD 20 | 2 | $0.22 | Available to order | 2 |
| 9 | LAD00327 Bolt, Flgd, M8 x 1.25 | Bolt, Flgd, M8 x 1.25 | 1 | $1.94 | Out of Stock | Notify Me |
| 10 | KADD0640 Bolt, Flgd, M6 x 1 | Bolt, Flgd, M6 x 1 | 1 | $0.46 | Available to order | 1 |
| 11 | KCGD0606 Nut, Hex, Flgd | Nut, Hex, Flgd | 1 | $0.10 | Backorder — Late August 2026 | 1 |
| 12 | TA541245 Bush | Bush | 1 | $1.58 | Available to order | 1 |
| 13 | JP171053 Collar | Collar | 5 | $1.24 | Available to order | 5 |
| 14 | LAC00008 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 | 3 | $0.57 | Available to order | 3 |
| 15 | JW171006 Nut Clip, M6 | Nut Clip, M6 | 2 | $0.67 | Available to order | 2 |
| 17 | LAD00326 Bolt, Flgd, M8 | Bolt, Flgd, M8 | 2 | $0.67 | Available to order | 2 |
| 19 | TA541248 Bracket, Sumpguard, Lower, Front | Bracket, Sumpguard, Lower, Front | 1 | $1.79 | Out of Stock | Notify Me |
