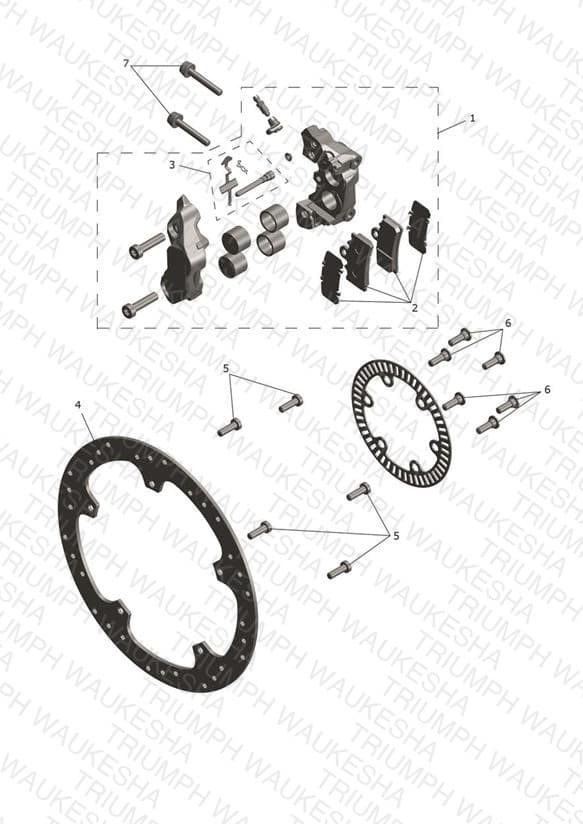

Front Caliper & Disc
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA131863 Front Caliper Assembly | Front Caliper Assembly | 1 | $643.71 | Available to order | 1 |
| 2 | YTA02079 Kit, Front Brake Pad with Shim BRM04C GR | Kit, Front Brake Pad with Shim BRM04C GR | 1 | $61.29 | Available to order | 1 |
| 3 | 36TA0149 Front Caliper Spring, Pin Kit | Front Caliper Spring, Pin Kit | 1 | $43.10 | Available to order | 1 |
| 4 | TA131866 Brake Disc, Dia 320 | Brake Disc, Dia 320 | 1 | $202.89 | Available to order | 1 |
| 5 | LAC00179 Bolt, Socket, M8 x 1.25 | Bolt, Socket, M8 x 1.25 | 5 | $1.33 | Available to order | 5 |
| 6 | LBU00227 Screw, Button Head, M6 x 1 | Screw, Button Head, M6 x 1 | 6 | $0.46 | Available to order | 6 |
| 7 | LAC00211 Bolt, Socket, M8 x 1 | Bolt, Socket, M8 x 1 | 2 | $2.70 | Available to order | 2 |
| 10 | 36JY0222 Twin Clip | Twin Clip Not Illustrated | 1 | $12.23 | Backorder — Late August 2026 | 1 |
| 8 | 36JY0180 Minor Kit, Caliper Assy | Minor Kit, Caliper Assy | 1 | $18.26 | Backorder — Restocking | 1 |
| 9 | 36JY0179 Major Kit, Caliper Assy | Major Kit, Caliper Assy | 1 | $30.60 | Backorder — Restocking | 1 |
