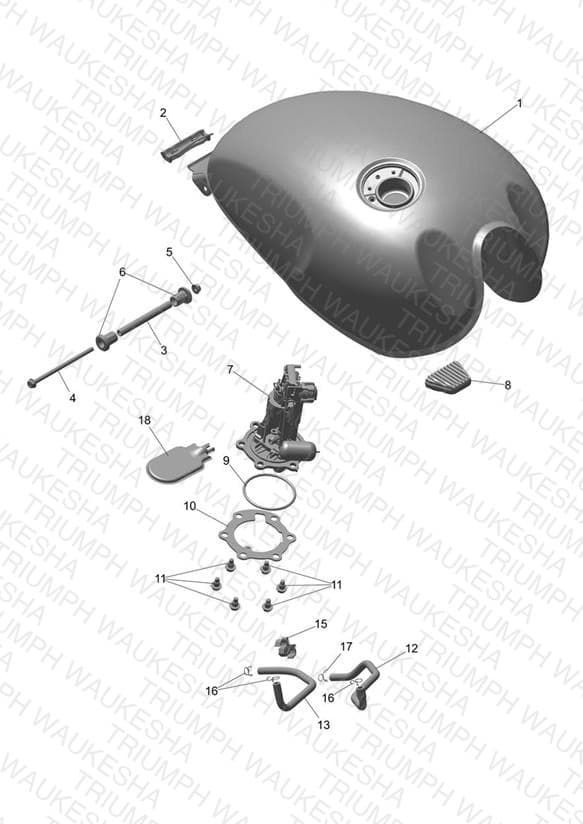

Fuel Tank & Pump
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 52TA0401 Fuel Tank, Phantom Black Decal | Fuel Tank, Phantom Black Decal | 1 | $690.43 | Available to order | 1 |
| 1 | 52TA0402 Fuel Tank, Caspian Blue Decal | Fuel Tank, Caspian Blue Decal | 1 | $788.27 | Available to order | 1 |
| 1 | 52TA0403 Fuel Tank, Carnival Red Decal | Fuel Tank, Carnival Red Decal | 1 | $788.27 | Available to order | 1 |
| 1 | 52TA1044 Fuel Tank, Lava Red/Storm Grey | Fuel Tank, Lava Red/Storm Grey | 1 | $788.27 | Available to order | 1 |
| 1 | 52TA1045 Fuel Tank, Pearl White/Phantom Blk | Fuel Tank, Pearl White/Phantom Blk | 1 | $788.27 | Available to order | 1 |
| 2 | TA171053 Damper | Damper | 1 | $2.25 | Available to order | 1 |
| 3 | TA171036 Spacer | Spacer | 1 | $1.69 | Available to order | 1 |
| 4 | KADD06B5 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 1 | $1.69 | Available to order | 1 |
| 5 | KCGA0606 Nut, Hex, Flanged | Nut, Hex, Flanged | 1 | $0.10 | Available to order | 1 |
| 6 | TA171037 Grommet | Grommet | 2 | $1.01 | Available to order | 2 |
| 7 | TA171801 Fuel Pump | Fuel Pump | 1 | $447.42 | Backorder — Mid August 2026 | 1 |
| 8 | TA171029 Damper | Damper | 1 | $4.96 | Available to order | 1 |
| 9 | YTA04028 Fuel Pump Seal | Fuel Pump Seal | 1 | $3.78 | Available to order | 1 |
| 10 | TA171811 Fuel Pump Plate | Fuel Pump Plate | 1 | $4.92 | Backorder — Mid August 2026 | 1 |
| 11 | LAD00154 Bolt, Flange, M6 x 1 x 12.8, Brt x Step | Bolt, Flange, M6 x 1 x 12.8, Brt x Step | 6 | $0.46 | Backorder — Late September 2026 | 6 |
| 12 | TA171602 Pipe, Tank - Connector | Pipe, Tank - Connector All Expt US, BR & ID | 1 | $3.98 | Available to order | 1 |
| 12 | TA171610 Pipe, Breather | Pipe, Breather US & BR Only | 1 | $3.51 | Available to order | 1 |
| 13 | TA171611 Fuel Pipe | Fuel Pipe All Expt US, BR & ID | 1 | $3.63 | Available to order | 1 |
| 13 | TA171809 Fuel Pipe | Fuel Pipe US & BR Only | 1 | $14.86 | Available to order | 1 |
| 15 | JG131857 Clip, Separator | Clip, Separator | 1 | $4.96 | Available to order | 1 |
| 16 | JG171030 Clamp | Clamp | 3 | $0.34 | Available to order | 3 |
| 17 | DJ141002 Clamp, Drain Pipe | Clamp, Drain Pipe | 1 | $0.22 | Available to order | 1 |
| 18 | YTA04029 Fuel Filter | Fuel Filter | 1 | $23.74 | Available to order | 1 |
