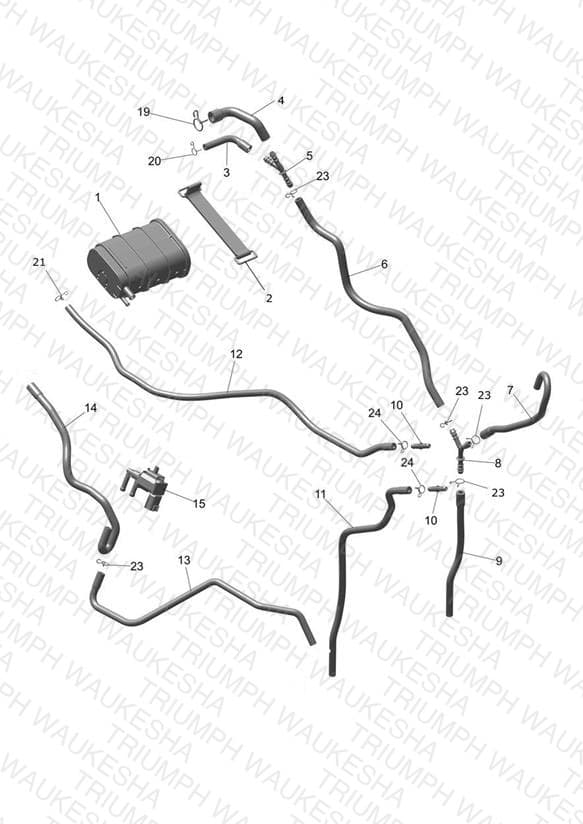

Evap System
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA171609 Evap Canister | Evap Canister | 1 | $36.24 | Available to order | 1 |
| 2 | DH161429 Strap, Canister | Strap, Canister | 1 | $2.73 | Available to order | 1 |
| 3 | TA171603 Pipe, Fuel | Pipe, Fuel All Expt US, BR & ID | 1 | $1.36 | Backorder — Mid August 2026 | 1 |
| 3 | TA171624 Pipe, Fuel | Pipe, Fuel US & BR Only | 1 | $4.91 | Out of Stock | Notify Me |
| 4 | TA171604 Pipe, Fuel | Pipe, Fuel All Expt US, BR & ID | 1 | $2.25 | Out of Stock | Notify Me |
| 4 | TA171625 Fuel Pipe | Fuel Pipe US & BR Only | 1 | $9.16 | Out of Stock | Notify Me |
| 5 | TA171051 Joint | Joint | 1 | $1.93 | Available to order | 1 |
| 6 | TA171615 Pipe, Fuel | Pipe, Fuel All Expt US, BR & ID | 1 | $4.19 | Out of Stock | Notify Me |
| 6 | TA171626 Fuel Pipe | Fuel Pipe US & BR Only | 1 | $22.95 | Out of Stock | Notify Me |
| 7 | TA171610 Pipe, Breather | Pipe, Breather All Expt US, BR & ID | 1 | $3.51 | Available to order | 1 |
| 7 | TA171621 Breather Pipe | Breather Pipe US & BR Only | 1 | $13.93 | Out of Stock | Notify Me |
| 8 | JY113842 Joint | Joint | 1 | $1.24 | Available to order | 1 |
| 9 | TA171614 Pipe, Drain | Pipe, Drain All Expt US & BR | 1 | $2.37 | Out of Stock | Notify Me |
| 9 | TA171623 Drain Pipe | Drain Pipe US BR Only | 1 | $9.56 | Out of Stock | Notify Me |
| 10 | GL171073 Connector | Connector | 2 | $2.37 | Available to order | 2 |
| 11 | TA171613 Pipe, Drain | Pipe, Drain | 1 | $4.58 | Backorder — Mid August 2026 | 1 |
| 12 | TA171612 Pipe, Fuel | Pipe, Fuel All Expt US & BR | 1 | $6.26 | Out of Stock | Notify Me |
| 12 | TA171620 Fuel Pipe | Fuel Pipe US & BR Only | 1 | $26.27 | Out of Stock | Notify Me |
| 13 | TA171605 Pipe Valve Purge - Throttle Body | Pipe Valve Purge - Throttle Body All Expt US & BR | 1 | $4.86 | Out of Stock | Notify Me |
| 13 | TA171627 Pipe Valve Purge - Throttle Body | Pipe Valve Purge - Throttle Body US BR Only | 1 | $20.15 | Out of Stock | Notify Me |
| 14 | TA171606 Pipe Connector - Purge Valve | Pipe Connector - Purge Valve All Expt US & BR | 1 | $4.40 | Out of Stock | Notify Me |
| 14 | TA171628 Pipe Connector - Purge Valve | Pipe Connector - Purge Valve US BR Only | 1 | $19.62 | Out of Stock | Notify Me |
| 15 | JU171606 Purge Valve | Purge Valve | 1 | $56.79 | Available to order | 1 |
| 19 | JK511002 Clamp, Breather Hose | Clamp, Breather Hose | 1 | $0.34 | Available to order | 1 |
| 20 | BA122003 Pipe Clip | Pipe Clip | 1 | $0.17 | Available to order | 1 |
| 21 | 33141008 Clamp | Clamp | 2 | $0.22 | Available to order | 2 |
| 23 | DJ141002 Clamp, Drain Pipe | Clamp, Drain Pipe | 5 | $0.22 | Available to order | 5 |
| 24 | JG171030 Clamp | Clamp | 2 | $0.34 | Available to order | 2 |
