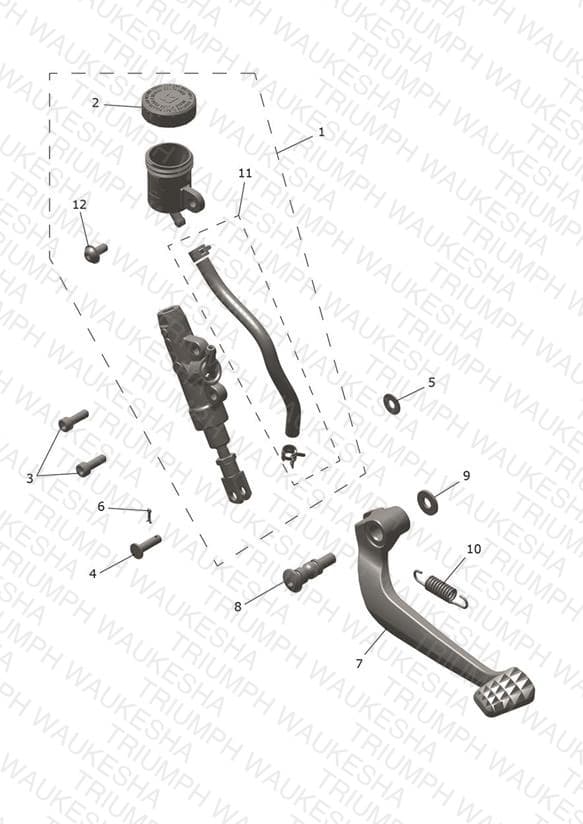

Rear Master Cylinder
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA131804 Rear Master Cylinder Assembly | Rear Master Cylinder Assembly | 1 | $224.59 | Available to order | 1 |
| 2 | YTA02023 Rear Reservoir Cap | Rear Reservoir Cap | 1 | $5.91 | Available to order | 1 |
| 3 | LAC00115 Bolt, Socket, M6 x 1 x 18, Blk, Precoat | Bolt, Socket, M6 x 1 x 18, Blk, Precoat | 2 | $0.46 | Available to order | 2 |
| 4 | LHE00021 Clevis Pin, Dia 6 | Clevis Pin, Dia 6 | 1 | $0.79 | Available to order | 1 |
| 5 | 39178924 Nylon Washer | Nylon Washer | 1 | $0.10 | Available to order | 1 |
| 6 | KHAA2015 Pin Cotter | Pin Cotter | 1 | $0.10 | Available to order | 1 |
| 7 | TA131865 Brake Pedal | Brake Pedal | 1 | $99.15 | Available to order | 1 |
| 8 | LBU00236 Screw Skt Step M8 x 1.25 | Screw Skt Step M8 x 1.25 | 1 | $3.56 | Available to order | 1 |
| 9 | LDB00151 Plain Washer | Plain Washer | 1 | $1.58 | Available to order | 1 |
| 10 | JG161001 Tension Spring | Tension Spring | 1 | $0.66 | Available to order | 1 |
| 11 | 36TA0081 Rear Tube Kit | Rear Tube Kit | 1 | $6.16 | Backorder — Late August 2026 | 1 |
| 12 | LBU00239 Screw | Screw | 1 | $0.56 | Out of Stock | Notify Me |
